固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

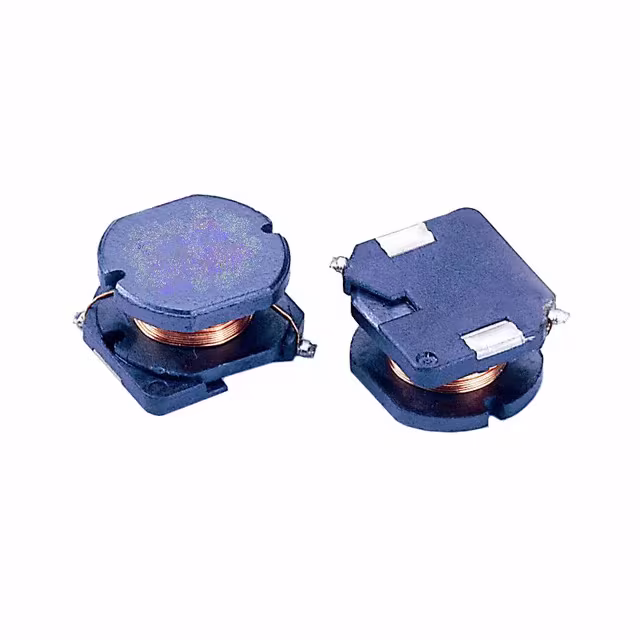

SC105B-470FIXED IND 47UH 1.6A 210 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.6 A | 1.28A | - | Unshielded | 210mOhm Max | 47 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.236" (6.00mm) |
|
|
SC105B-560FIXED IND 56UH 1.45A 250MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.45 A | 1.17A | - | Unshielded | 250mOhm Max | 56 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.236" (6.00mm) |
|
|
SC105B-561FIXED IND 560UH 470MA 1.9OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 470 mA | 330mA | - | Unshielded | 1.9Ohm Max | 560 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
|
|
SC105B-680FIXED IND 68UH 1.35A 285MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.35 A | 1.11A | - | Unshielded | 285mOhm Max | 68 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.236" (6.00mm) |
|
|
SC105B-681FIXED IND 680UH 430MA 2.6OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 430 mA | 280mA | - | Unshielded | 2.6Ohm Max | 680 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
|
|
SC105B-820FIXED IND 82UH 1.3A 333 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.3 A | 1A | - | Unshielded | 333mOhm Max | 82 µH | - | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.236" (6.00mm) |
|
SCRH104-150FIXED IND 15UH 2.7A 69 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.7 A | 2A | - | Shielded | 69mOhm Max | 15 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SCRH104-270FIXED IND 27UH 1.95A 110MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.95 A | 1.45A | - | Shielded | 110mOhm Max | 27 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SC5022F-101FIXED IND 100UH 1.95A 190MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.95 A | 3A | - | Unshielded | 190mOhm Max | 100 µH | - | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
|
SLPPI06-18-2R2M-TRHI POWER IND 2.20UH 29.7MOHM 11 Signal Transformer |
0 | - |
|
数据表 |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | ±20% | 5 A | 10A | - | Shielded | 34mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.071" (1.80mm) |
