固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

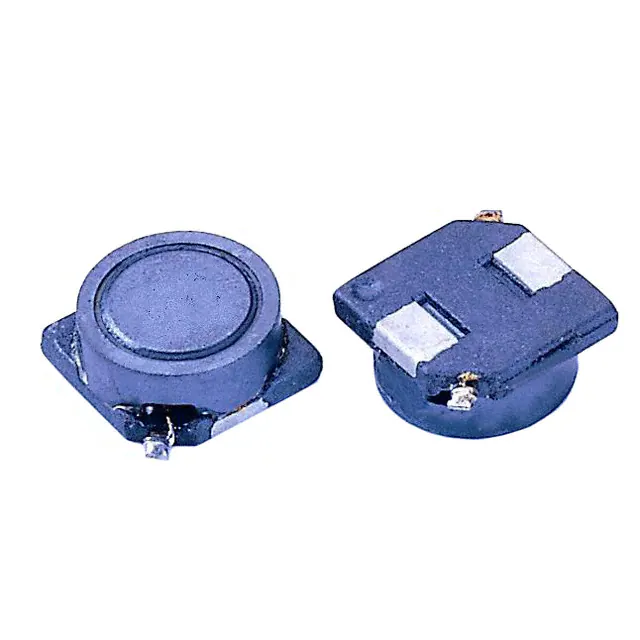

SCB63C-101FIXED IND 100UH 630MA 670MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 630 mA | 240mA | - | Shielded | 670mOhm Max | 100 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-120FIXED IND 12UH 1.8A 115 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.8 A | 600mA | - | Shielded | 115mOhm Max | 12 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-121FIXED IND 120UH 560MA 860MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 560 mA | 230mA | - | Shielded | 860mOhm Max | 120 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-150FIXED IND 15UH 1.62A 135MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.62 A | 590mA | - | Shielded | 135mOhm Max | 15 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-151FIXED IND 150UH 530MA 990MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 530 mA | 200mA | - | Shielded | 990mOhm Max | 150 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-180FIXED IND 18UH 1.45A 152MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.45 A | 570mA | - | Shielded | 152mOhm Max | 18 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-181FIXED IND 180UH 480MA 1.27OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 480 mA | 140mA | - | Shielded | 1.27Ohm Max | 180 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-220FIXED IND 22UH 1.3A 191 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.3 A | 530mA | - | Shielded | 191mOhm Max | 22 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-221FIXED IND 220UH 410MA 1.8OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 410 mA | 130mA | - | Shielded | 1.8Ohm Max | 220 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
|
SCB63C-271FIXED IND 270UH 360MA 1.96OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 360 mA | 120mA | - | Shielded | 1.96Ohm Max | 270 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
