固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-2510-2R2M-T2FIXED IND 2.2UH 1.2A 158MOHM SMD Abracon LLC |
1,980 | - |
|
数据表 |
ASPI-2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.2A | 2510 | Shielded | 158mOhm | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|

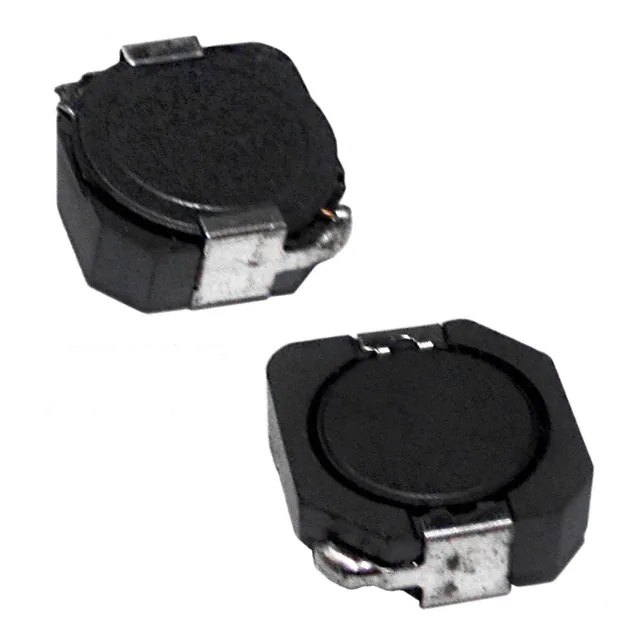

ASPI-104S-680M-TFIXED IND 68UH 1.42A 213MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.42 A | 1.5A | - | Shielded | 213mOhm Max | 68 µH | - | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
ASPI-2510-100M-T2FIXED IND 10UH 550MA 712MOHM SMD Abracon LLC |
1,485 | - |
|
数据表 |
ASPI-2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 550 mA | 560mA | 2510 | Shielded | 712mOhm | 10 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
AIMC-0603-1N0S-TFIXED IND 1NH 500MA 50 MOHM SMD Abracon LLC |
18,207 | - |
|
数据表 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 50mOhm Max | 1 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
AIMC-0603-2N7S-TFIXED IND 2.7NH 500MA 100MOHM SM Abracon LLC |
16,343 | - |
|
数据表 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 100mOhm Max | 2.7 nH | 10 @ 100MHz | 9GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|

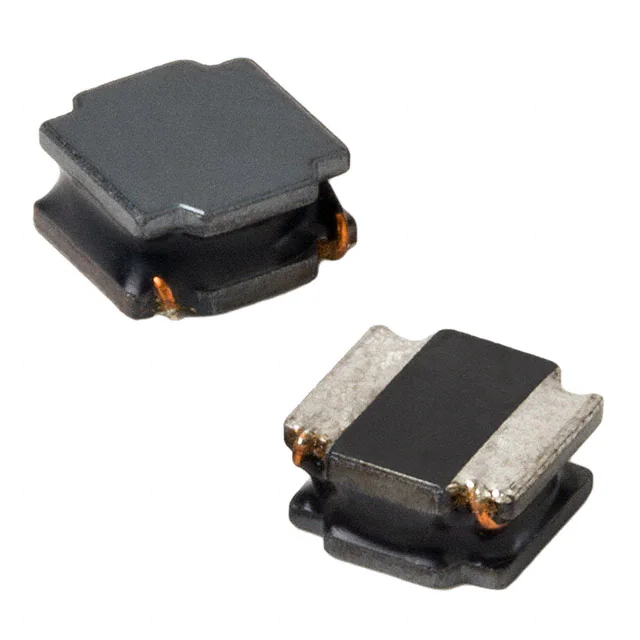

ASPI-3012S-150M-TFIXED IND 15UH 710MA 360MOHM SMD Abracon LLC |
1,025 | - |
|
数据表 |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 710 mA | 450mA | - | Shielded | 360mOhm | 15 µH | - | 27MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
AIMC-0603-1N2S-TFIXED IND 1.2NH 500MA 50MOHM SMD Abracon LLC |
13,066 | - |
|
数据表 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 50mOhm Max | 1.2 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
AIML-0603-1R0K-TFIXED IND 1UH 25MA 600 MOHM SMD Abracon LLC |
10,064 | - |
|
数据表 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 25 mA | - | 0603 (1608 Metric) | Shielded | 600mOhm Max | 1 µH | 35 @ 10MHz | 125MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 10 MHz | 0.037" (0.95mm) |
|
|
AIML-0603-100K-TFIXED IND 10UH 3MA 2.55 OHM SMD Abracon LLC |
9,503 | - |
|
数据表 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 3 mA | - | 0603 (1608 Metric) | Shielded | 2.55Ohm Max | 10 µH | 35 @ 2MHz | 33MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 2 MHz | 0.037" (0.95mm) |
|
ASPIAIG-H8540-8R2M-TFIXED IND 8.2UH 3.7A 46.8MOHM SM Abracon LLC |
1,000 | - |
|
数据表 |
ASPIAIG-H8540 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 3.7 A | 8.5A | - | Shielded | 46.8mOhm | 8.2 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.346" L x 0.335" W (8.80mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
