固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150T-1.87-53FIXED IND 53UH 1.87A 130 MOHM TH Amgis, LLC |
62 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 1.87 A | - | - | Unshielded | 130mOhm | 53 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|
SH50C-3.0-100FIXED IND 100UH 3A 40 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 40mOhm Max | 100 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
SH50S-3.0-47FIXED IND 47UH 3A 50 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm Max | 47 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.451" (11.45mm) |
|
SH50C-2.0-150FIXED IND 150UH 2A 100 MOHM TH Amgis, LLC |
11 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 2 A | - | - | Unshielded | 100mOhm Max | 150 µH | - | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|

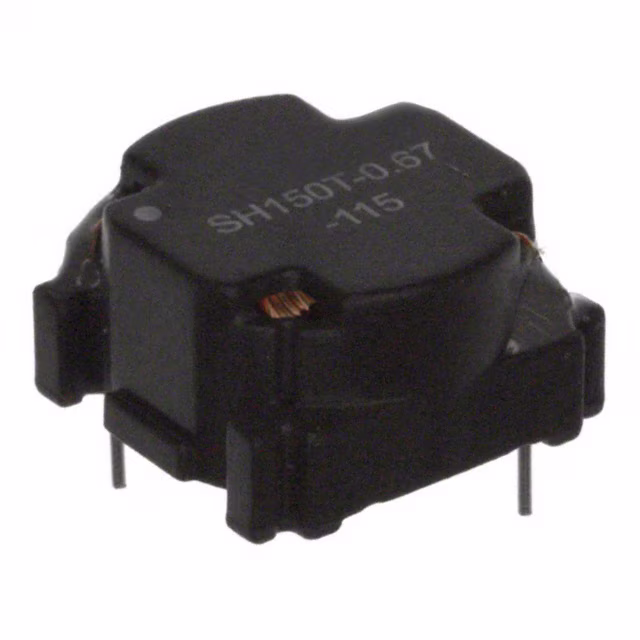

SH150T-0.67-115FIXED IND 115UH 670MA 400MOHM TH Amgis, LLC |
2 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 670 mA | - | - | Unshielded | 400mOhm | 115 µH | - | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.311" (7.90mm) |
|

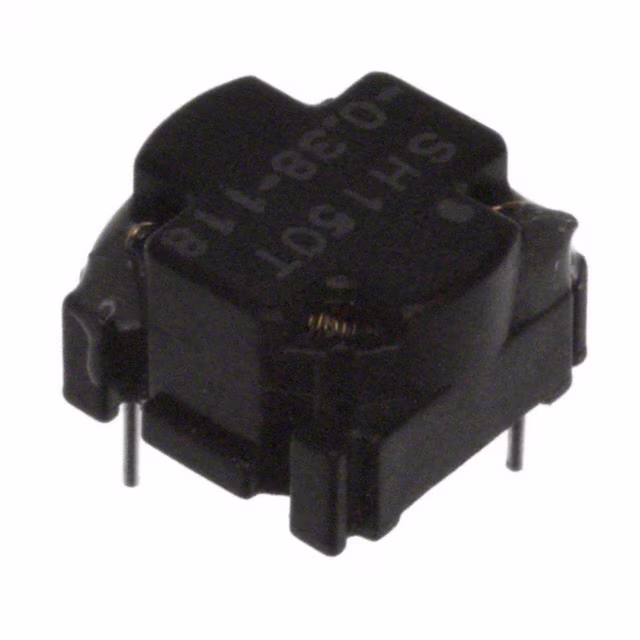

SH150T-0.38-118FIXED IND 118UH 380MA 1.2 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 380 mA | - | - | Unshielded | 1.2Ohm | 118 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SH150C-3.00-17FIXED IND 17UH 3A 50 MOHM TH Amgis, LLC |
3 | - |
|
数据表 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm | 17 µH | - | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | - | -40°C ~ 125°C | 10 kHz | 0.690" (17.53mm) |
|
SH150S-1.02-17FIXED IND 17UH 1.02A 100MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.02 A | - | - | Unshielded | 100mOhm | 17 µH | - | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.301" (7.65mm) |
|
|
SH150S-0.56-55FIXED IND 55UH 560MA 500MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 560 mA | - | - | Unshielded | 500mOhm | 55 µH | - | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.301" (7.65mm) |
|
|
SH150S-0.46-78FIXED IND 78UH 460MA 800MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 460 mA | - | - | Unshielded | 800mOhm | 78 µH | - | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.301" (7.65mm) |
