固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-1.87-53FIXED IND 53UH 1.87A 130MOHM SMD Amgis, LLC |
293 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.87 A | - | - | Unshielded | 130mOhm | 53 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
SH150T-1.26-112FIXED IND 112UH 1.26A 300MOHM TH Amgis, LLC |
109 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 1.26 A | - | - | Unshielded | 300mOhm | 112 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|
SH150C-4.50-19FIXED IND 19UH 4.5A 20 MOHM TH Amgis, LLC |
146 | - |
|
数据表 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 4.5 A | - | - | Unshielded | 20mOhm | 19 µH | - | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.937" (23.80mm) |
|

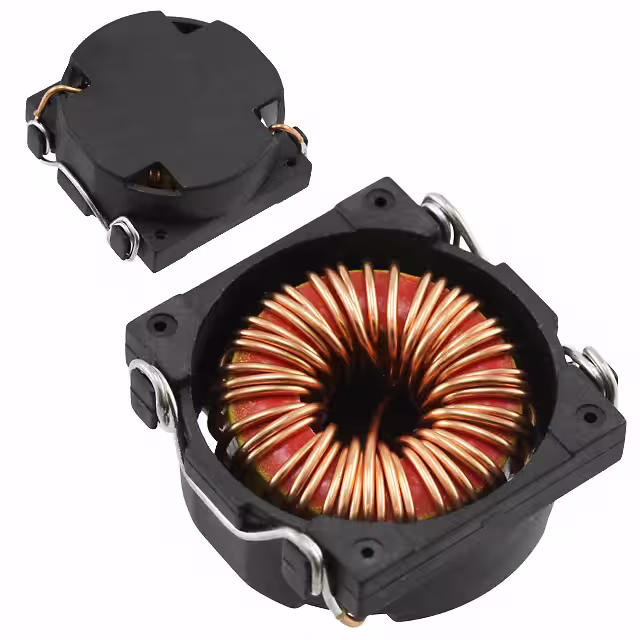

SH150S-3.00-38FIXED IND 38UH 3A 50 MOHM SMD Amgis, LLC |
2,836 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm | 38 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
|

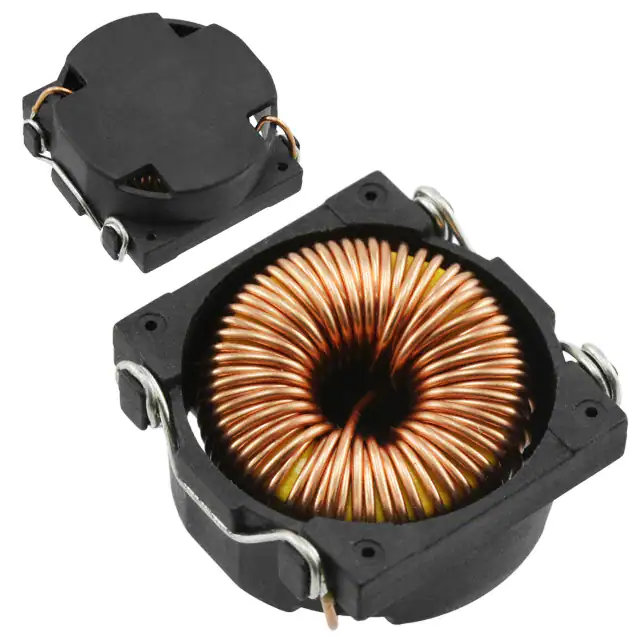

SH150S-3.00-77FIXED IND 77UH 3A 80 MOHM SMD Amgis, LLC |
189 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 80mOhm | 77 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
|
|
SH150S-1.00-54FIXED IND 54UH 1A 200 MOHM SMD Amgis, LLC |
270 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1 A | - | - | Unshielded | 200mOhm | 54 µH | - | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.337" (8.55mm) |
|
SWS-3.00-110FIXED IND 110UH 3A 90 MOHM SMD Amgis, LLC |
225 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 90mOhm | 110 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|
|
SH150S-1.02-168FIXED IND 168UH 1.02A 400MOHM SM Amgis, LLC |
979 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.02 A | - | - | Unshielded | 400mOhm | 168 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
SH50S-0.9-330FIXED IND 330UH 900MA 740MOHM SM Amgis, LLC |
1,682 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 900 mA | - | - | Unshielded | 740mOhm Max | 330 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.451" (11.45mm) |
|
|
SH150S-3.00-17FIXED IND 17UH 3A 50 MOHM SMD Amgis, LLC |
30 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm | 17 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
