固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH50C-2.0-470FIXED IND 470UH 2A 170 MOHM TH Amgis, LLC |
36,038 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 2 A | - | - | Unshielded | 170mOhm Max | 470 µH | - | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | - | -40°C ~ 125°C | 10 kHz | 1.382" (35.10mm) |
|
SH150C-2.22-114FIXED IND 114UH 2.22A 100MOHM TH Amgis, LLC |
3,838 | - |
|
数据表 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 2.22 A | - | - | Unshielded | 100mOhm | 114 µH | - | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.937" (23.80mm) |
|
SH150C-3.00-110FIXED IND 110UH 3A 90 MOHM TH Amgis, LLC |
384 | - |
|
数据表 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 90mOhm | 110 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
SH50S-0.85-680FIXED IND 680UH 850MA 1.25OHM SM Amgis, LLC |
1,759 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 850 mA | - | - | Unshielded | 1.25Ohm Max | 680 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.451" (11.45mm) |
|

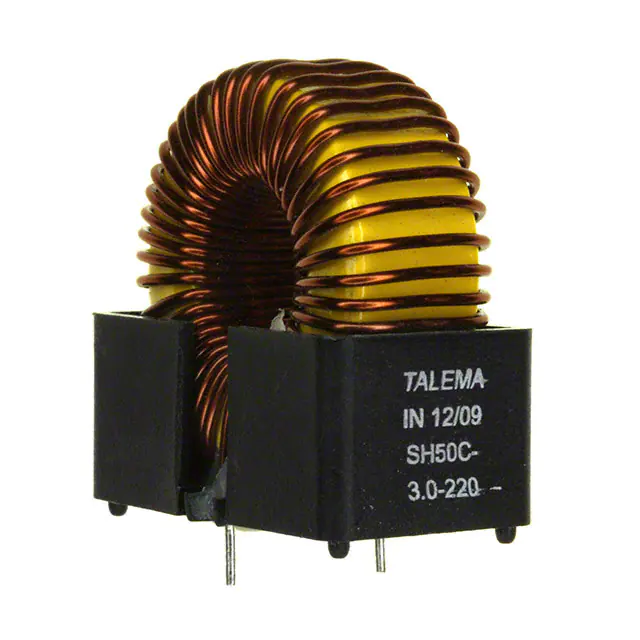

SH50C-3.0-220FIXED IND 220UH 3A 70 MOHM TH Amgis, LLC |
350 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 70mOhm Max | 220 µH | - | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | - | -40°C ~ 125°C | 10 kHz | 1.382" (35.10mm) |
|

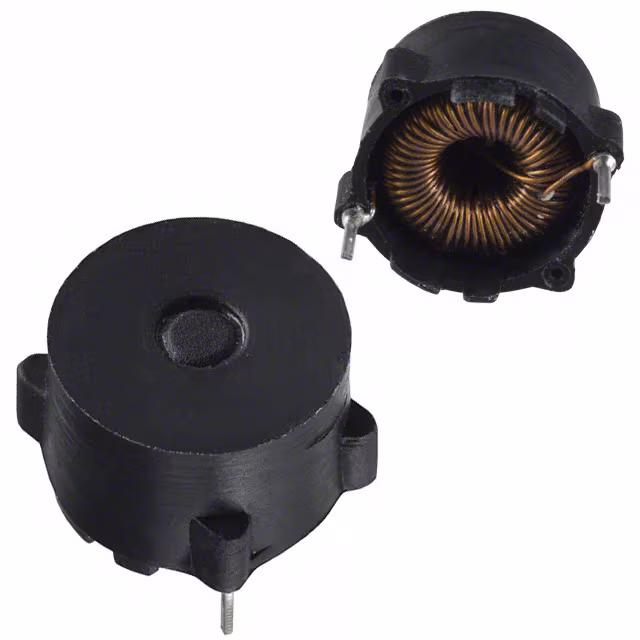

SWF-0.90-330FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Vertical Cylinder | Bulk | Active | Toroidal | Iron Powder | ±20% | 900 mA | - | - | Unshielded | 740mOhm Max | 330 µH | - | - | Through Hole | - | 0.669" Dia (17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.492" (12.50mm) |
|
|
SH50S-2.0-150FIXED IND 150UH 2A 100 MOHM SMD Amgis, LLC |
471 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 2 A | - | - | Unshielded | 100mOhm Max | 150 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.411" (10.45mm) |
|
SH150S-0.83-248FIXED IND 248UH 830MA 600MOHM SM Amgis, LLC |
279 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 830 mA | - | - | Unshielded | 600mOhm | 248 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|

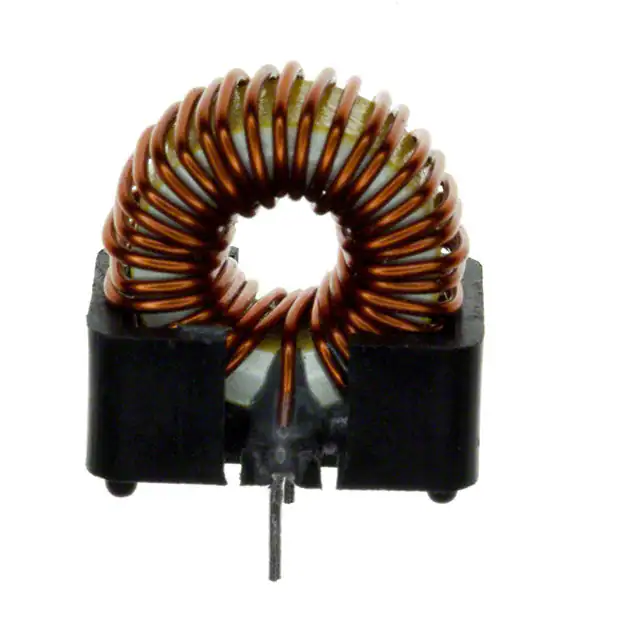

SH50C-3.0-47FIXED IND 47UH 3A 50 MOHM TH Amgis, LLC |
614 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm Max | 47 µH | - | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.760" (19.30mm) |
|
|
SH150S-3.00-25FIXED IND 25UH 3A 40 MOHM SMD Amgis, LLC |
3,545 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 40mOhm | 25 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.443" (11.25mm) |
