固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1264LR68FIXED IND 680NH 35.4A 1.9MOHM SM KEMET |
0 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 35.4 A | 50A | - | Shielded | 1.9mOhm Max | 680 nH | - | 45MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD KEMET |
0 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 53 A | 100A | - | Shielded | 1.1mOhm Max | 220 nH | - | 90MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
SBC7-151-172FIXED IND 150UH 1.7A 160 MOHM TH KEMET |
0 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 2.9A | - | Unshielded | 160mOhm Max | 150 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|
|
SBC7-470-282FIXED IND 47UH 2.8A 60 MOHM TH KEMET |
0 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 5.2A | - | Unshielded | 60mOhm Max | 47 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|
|
SBC7-471-851FIXED IND 470UH 850MA 550MOHM TH KEMET |
0 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 1.6A | - | Unshielded | 550mOhm Max | 470 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|
|
SBC4-330-182FIXED IND 33UH 1.8A 90 MOHM TH KEMET |
0 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 2.6A | - | Unshielded | 90mOhm Max | 33 µH | - | - | Through Hole | - | 0.354" Dia (9.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
MPLCG0530LR68FIXED IND 680NH 7.9A 0.0116OHM KEMET |
0 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 7.9 A | 6.8A | - | Shielded | 11.6mOhm Max | 680 nH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
MPLCG0530L1R5FIXED IND 1.5UH 5.9A 0.0217OHM KEMET |
0 | - |
|
数据表 |
MPLCG | Nonstandard | Bulk | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5.9 A | 5.6A | - | Shielded | 21.7mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

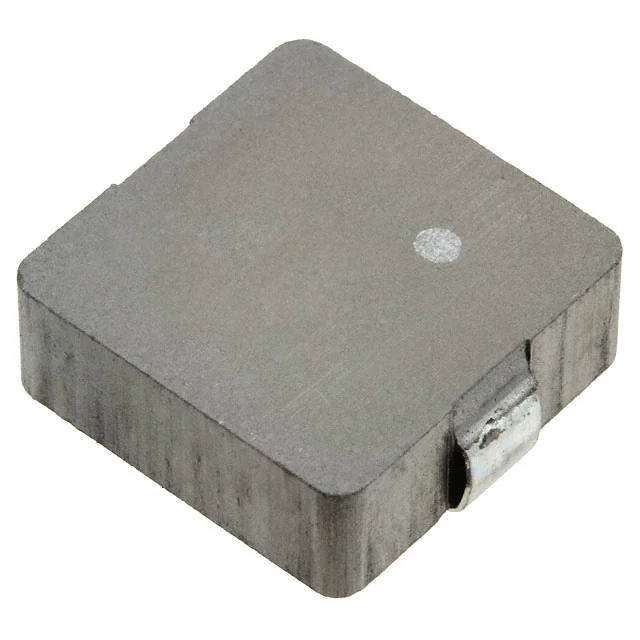

MPCH1250L1R5FIXED IND 1.5UH 21A 2.2 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 21 A | 21A | - | Shielded | 2.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.563" L x 0.492" W (14.30mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SBT-0210TFFIXED IND 10UH 500MA 0.02OHM TH KEMET |
0 | - |
|
数据表 |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | ±50% | 500 mA | - | - | Unshielded | 20mOhm Max | 10 µH | - | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | - | -25°C ~ 70°C | 1 kHz | 0.343" (8.70mm) |
