固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D0530L150FIXED IND 15UH 2.5A 214.6MOHM SM KEMET |
660 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.5 A | 3A | - | Shielded | 214.6mOhm Max | 15 µH | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
SBC6-331-871FIXED IND 330UH 870MA 410MOHM TH KEMET |
937 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 870 mA | 1.9A | - | Unshielded | 410mOhm Max | 330 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
|
SBC6-4R7-802FIXED IND 4.7UH 8A 10 MOHM TH KEMET |
644 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 8 A | 16.1A | - | Unshielded | 10mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
|
SBC6-101-172FIXED IND 100UH 1.7A 130 MOHM TH KEMET |
374 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 3.5A | - | Unshielded | 130mOhm Max | 100 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|

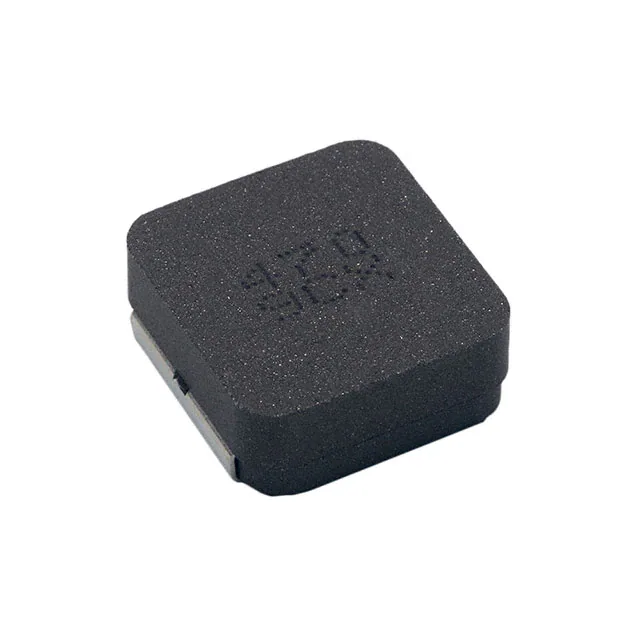

MPXV1D1054L220FIXED IND 22UH 5.7A 54.05MOHM SM KEMET |
952 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.7 A | 7A | - | Shielded | 54.05mOhm Max | 22 µH | - | 6.5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
MPXV1D1054L3R3FIXED IND 3.3UH 14.4A 8.4MOHM SM KEMET |
857 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 14.4 A | 15A | - | Shielded | 8.4mOhm Max | 3.3 µH | - | 17MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
MPXV1D1040L4R7FIXED IND 4.7UH 10.3A 15.9 MOHM KEMET |
1,173 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 10.3 A | 14A | - | Shielded | 15.9mOhm Max | 4.7 µH | - | 17MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|

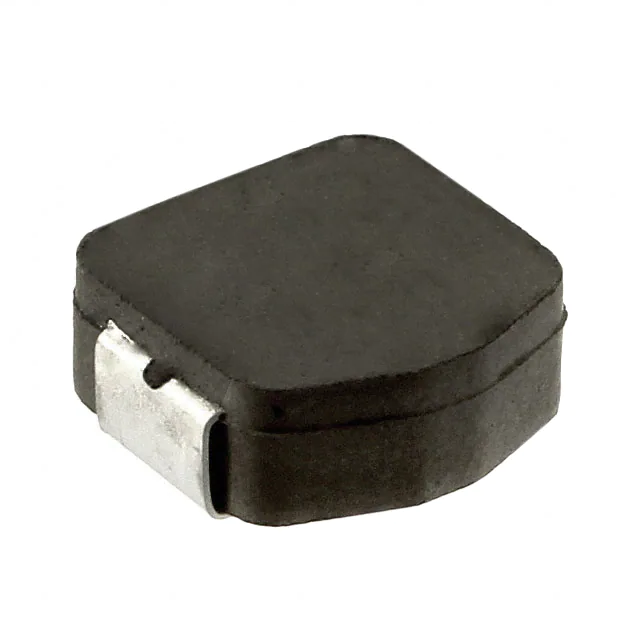

MPLCG0630L3R3FIXED IND 3.3UH 6.5A 0.03OHM SMD KEMET |
1,696 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 6.5 A | 6.3A | - | Shielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

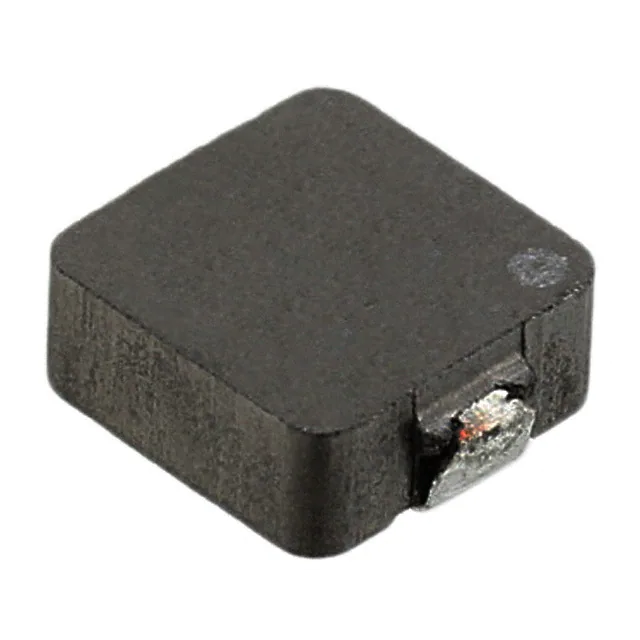

MPCH0730LR12FIXED IND 120NH 31A 0.65MOHM SMD KEMET |
1,781 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 31 A | 32A | - | Shielded | 0.65mOhm | 120 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

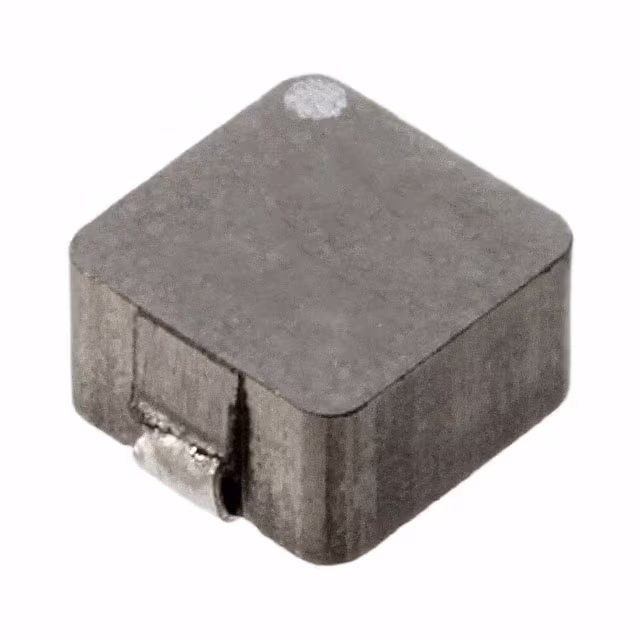

MPCH0740LR15FIXED IND 150NH 29A 0.93MOHM SMD KEMET |
2,641 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 29 A | 31A | - | Shielded | 0.93mOhm | 150 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
