固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

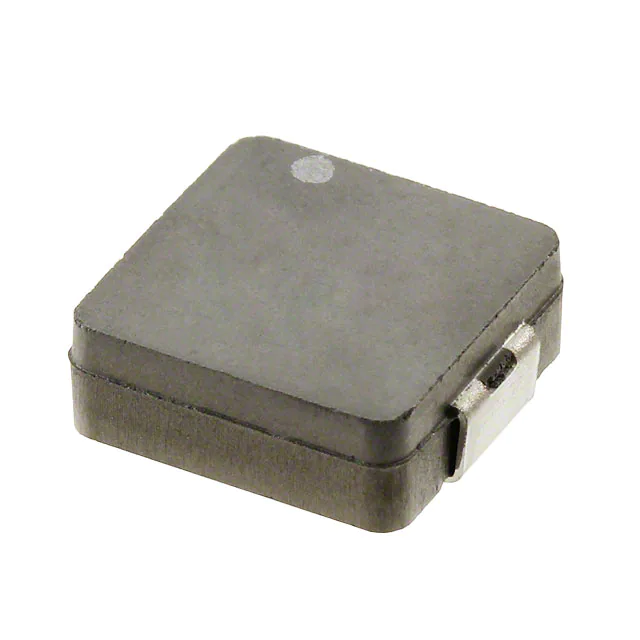

MPLC1040L4R7FIXED IND 4.7UH 8A 19 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 8 A | 8A | - | Shielded | 19mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
L1210R100MDWITFIXED IND 10UH 900MA 133MOHM SMD KEMET |
0 | - |
|
数据表 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | - | 1210 | Unshielded | 133mOhm | 10 µH | - | 23MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.106" (2.70mm) |
|

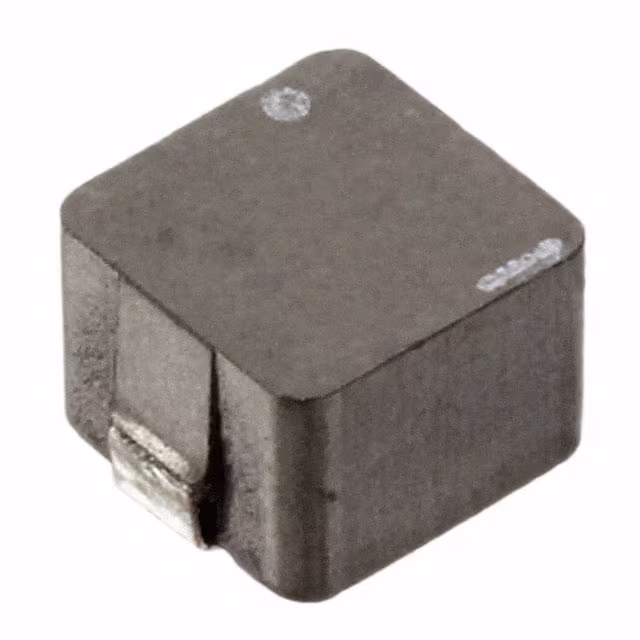

MPC0750LR68CFIXED IND 680NH 18A 2.2 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 18 A | 16A | - | Shielded | 2.2mOhm Max | 680 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.197" (5.00mm) |
|
MPX1D1250LR47FIXED IND 470NH 34.8A 1.8MOHM SM KEMET |
0 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 34.8 A | 55A | - | Shielded | 1.8mOhm Max | 470 nH | - | 54MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPX1D1250LR33FIXED IND 330NH 41.6A 1.3MOHM SM KEMET |
0 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 41.6 A | 65A | - | Shielded | 1.3mOhm Max | 330 nH | - | 68MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPX1D1250L3R3FIXED IND 3.3UH 16.8A 7.4MOHM SM KEMET |
0 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 16.8 A | 22A | - | Shielded | 7.4mOhm Max | 3.3 µH | - | 17MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SBCP-11HY681HFIXED IND 680UH 550MA 1 OHM TH KEMET |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 550 mA | 1.1A | - | Unshielded | 1Ohm Max | 680 µH | - | - | Through Hole | - | 0.492" Dia (12.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
SBCP-47HY680BFIXED IND 68UH 600MA 397 MOHM TH KEMET |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | 600mA | - | Unshielded | 397mOhm Max | 68 µH | - | - | Through Hole | - | 0.197" Dia (5.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
|
|
SBCP-47HY561BFIXED IND 560UH 210MA 3.1 OHM TH KEMET |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 210 mA | 210mA | - | Unshielded | 3.1Ohm Max | 560 µH | - | - | Through Hole | - | 0.197" Dia (5.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
|
|
SBCP-47HY390BFIXED IND 39UH 790MA 213 MOHM TH KEMET |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 790 mA | 790mA | - | Unshielded | 213mOhm Max | 39 µH | - | - | Through Hole | - | 0.197" Dia (5.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
