固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

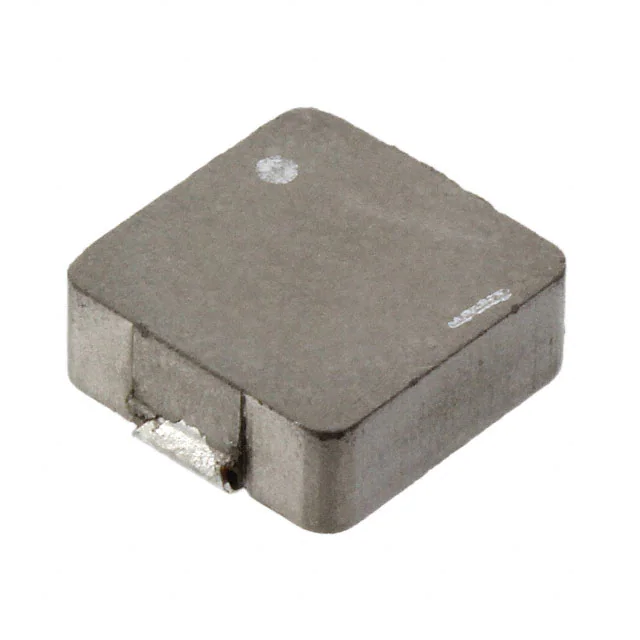

MPC1040LR45CFIXED IND 450NH 25A 1.1 MOHM SMD KEMET |
823 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 25 A | 27A | - | Shielded | 1.1mOhm Max | 450 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
SBCP-80HY121HFIXED IND 120UH 1.1A 350 MOHM TH KEMET |
395 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 1.4A | - | Unshielded | 350mOhm Max | 120 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY151HFIXED IND 150UH 1A 410 MOHM TH KEMET |
378 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.2A | - | Unshielded | 410mOhm Max | 150 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
SBC7-152-481FIXED IND 1.5MH 480MA 1.58OHM TH KEMET |
1,180 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 480 mA | 930mA | - | Unshielded | 1.58Ohm Max | 1.5 mH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.689" (17.50mm) |
|
SBCP-14HY101BFIXED IND 100UH 1.5A 140 MOHM TH KEMET |
236 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | 3.1A | - | Unshielded | 140mOhm Max | 100 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
MPLC1040L1R5FIXED IND 1.5UH 12.4A 7 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12.4 A | 12.7A | - | Shielded | 7mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
MPX1D1250L680FIXED IND 68UH 3.6A 163 MOHM SMD KEMET |
198 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.6 A | 4.5A | - | Shielded | 163mOhm Max | 68 µH | - | 3MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
MPC0750LR60CFIXED IND 600NH 17A 2.3 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 17 A | 19A | - | Shielded | 2.3mOhm Max | 600 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.197" (5.00mm) |
|
|
SBCP-80HY2R2HFIXED IND 2.2UH 4A 30 MOHM TH KEMET |
342 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4 A | 11.7A | - | Unshielded | 30mOhm Max | 2.2 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-14HY4R7BFIXED IND 4.7UH 3.6A 30 MOHM TH KEMET |
171 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 14.36A | - | Unshielded | 30mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
