固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM KEMET |
294 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.7 A | 5A | - | Shielded | 119.7mOhm Max | 33 µH | - | 5MHz | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
MPX1D0830L150FIXED IND 15UH 4.3A 94.6MOHM SMD KEMET |
483 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.3 A | 6.5A | - | Shielded | 94.6mOhm Max | 15 µH | - | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
MPX1D0830L1R0FIXED IND 1UH 17.6A 5.7 MOHM SMD KEMET |
794 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 17.6 A | 23A | - | Shielded | 5.7mOhm Max | 1 µH | - | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|

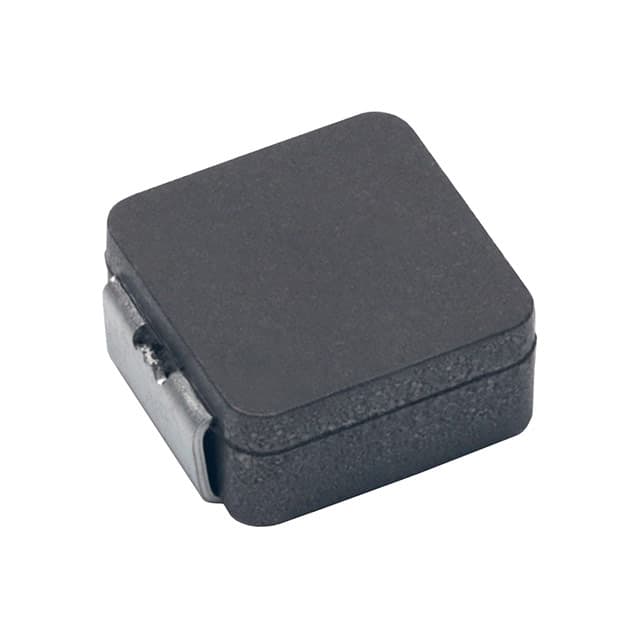

MPX1D0840LR47FIXED IND 470NH 25.8A 2.7MOHM SM KEMET |
297 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 25.8 A | 38A | - | Shielded | 2.7mOhm Max | 470 nH | - | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
SBC7-6R8-612FIXED IND 6.8UH 6.1A 20 MOHM TH KEMET |
145 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.1 A | 13.9A | - | Unshielded | 20mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|

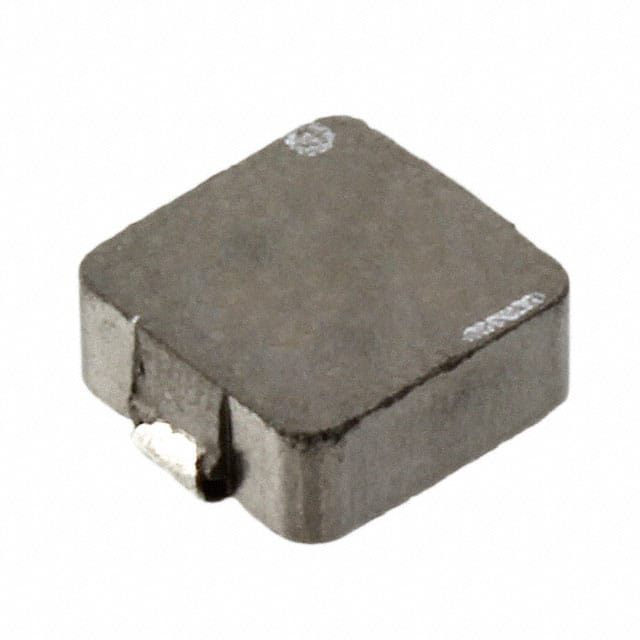

MPC0730LR20CFIXED IND 200NH 23A 1.2 MOHM SMD KEMET |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 23 A | 17.5A | - | Shielded | 1.2mOhm Max | 200 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
SBCP-87HY330HFIXED IND 33UH 1.5A 120 MOHM TH KEMET |
1,993 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.5A | - | Unshielded | 120mOhm Max | 33 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
|
|
SBC6-682-181FIXED IND 6.8MH 180MA 8.92OHM TH KEMET |
964 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | 420mA | - | Unshielded | 8.92Ohm Max | 6.8 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
|
SBC6-103-161FIXED IND 10MH 160MA 13.6 OHM TH KEMET |
578 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 160 mA | 350mA | - | Unshielded | 13.6Ohm Max | 10 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
|
SBCP-87HY331HFIXED IND 330UH 500MA 920MOHM TH KEMET |
437 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | 470mA | - | Unshielded | 920mOhm Max | 330 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
