固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCS0016100847NJ00INDUCTOR RF |
3,000 | - |
|
数据表 |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 | Unshielded | 280mOhm Max | 47 nH | 38 @ 200MHz | 2GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | - | -40°C ~ 125°C | 200 MHz | 0.040" (1.02mm) |
|
LSQMB201616T150JFIXED IND 15UH 190MA 1.5 OHM SMD |
3,000 | - |
|
数据表 |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | 190 mA | - | 0806 | Unshielded | 1.5Ohm | 15 µH | 25 @ 2.52MHz | 20MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.071" (1.80mm) |
|
LSQCA201212T100MFIXED IND 10UH 200MA 1.2 OHM SMD |
2,996 | - |
|
数据表 |
LSQC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 200 mA | - | 0805 | Unshielded | 1.2Ohm | 10 µH | - | 40MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
LRC0603CK47NGV001TFIXED IND 47NH 300MA 1 OHM SMD |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1Ohm Max | 47 nH | 12 @ 100MHz | 1.2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
|
|
LRC0603CK56NGV001TFIXED IND 56NH 300MA 1.1 OHM SMD |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.1Ohm Max | 56 nH | 12 @ 100MHz | 23GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
|
|
LRC0603CK68NGV001TFIXED IND 68NH 300MA 1.2 OHM SMD |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.2Ohm Max | 68 nH | 12 @ 100MHz | 1GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
|
|
LRC0603CK82NGV001TFIXED IND 82NH 300MA 1.8 OHM SMD |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.8Ohm Max | 82 nH | 12 @ 100MHz | 850MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
|

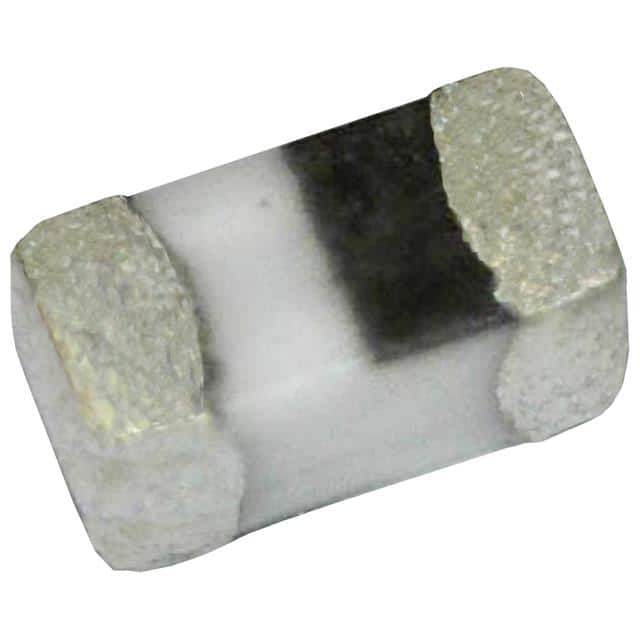

ASCQ000603033N7B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 370 mA | - | 0201 | Shielded | 360mOhm Max | 3.7 nH | 14 @ 500MHz | 8GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N3B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 415 mA | - | 0201 | Shielded | 280mOhm Max | 3.3 nH | 14 @ 500MHz | 8.6GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N8B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 355 mA | - | 0201 | Shielded | 400mOhm Max | 3.8 nH | 14 @ 500MHz | 7.8GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N9B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 350 mA | - | 0201 | Shielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N4B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 410 mA | - | 0201 | Shielded | 290mOhm Max | 3.4 nH | 14 @ 500MHz | 8.4GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N6B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 400 mA | - | 0201 | Shielded | 320mOhm Max | 3.6 nH | 14 @ 500MHz | 8.1GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N5B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 405 mA | - | 0201 | Shielded | 300mOhm Max | 3.5 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ASCQ000603033N2B00INDUCTOR RF |
0 | - |
|
数据表 |
ASCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 415 mA | - | 0201 | Shielded | 280mOhm Max | 3.2 nH | 14 @ 500MHz | 8.7GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -40°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
CWF1610-3R3KIND,1.6X1X1MM,3.3UH10%,0.5A,NON- |
2,816 | - |
|
数据表 |
CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 500 mA | 500mA | 0603 | Unshielded | 700mOhm | 3.3 µH | 16 @ 7.9MHz | 66MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.043" (1.10mm) |
|
LSQCA201212T220KFIXED IND 22UH 130MA 3.7 OHM SMD |
2,780 | - |
|
数据表 |
LSQC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 130 mA | - | 0805 | Unshielded | 3.7Ohm | 22 µH | - | 16MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
CWF2414-100KIND,2.2X1.4X1.3MM,10UH10%,0.56A, |
2,765 | - |
|
数据表 |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 560 mA | 360mA | 0805 | Unshielded | 850mOhm | 10 µH | 14 @ 2.5MHz | 31MHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -40°C ~ 125°C | 2.5 MHz | 0.055" (1.40mm) |
|
|
CWF1610-1R0KIND,1.6X1X1MM,1UH10%,0.7A,NON-SH |
2,718 | - |
|
数据表 |
CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 700 mA | 860mA | 0603 | Unshielded | 320mOhm | 1 µH | 16 @ 7.9MHz | 390MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.043" (1.10mm) |
|
|
LQW15AN7N4C10DFIXED IND 7.4NH 750MA 0.058OHM |
2,630 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.2nH | 750 mA | - | - | Unshielded | 58mOhm Max | 7.4 nH | 30 @ 250MHz | 6.8GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
