固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WRFI0805-S-12NJTWirewound RF Inductor,0805,12nH, |
5,620 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 600 mA | - | 0805 (2012 Metric) | - | 150mOhm | 12 nH | 50 @ 500MHz | 4GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
|
WRFI0805-S-R15JTWirewound RF Inductor,0805,150nH |
5,620 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 400 mA | - | 0805 (2012 Metric) | - | 560mOhm | 150 nH | 50 @ 250MHz | 920MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
IHLP2020BZER2R2M11FIXED IND 2.2UH 5A 37.7 MOHM SMD |
3,112 | - |
|
数据表 |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 5.5A | - | Shielded | 37.7mOhm Max | 2.2 µH | - | 41MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
WRFI0805-S-R22JTWirewound RF Inductor,0805,220nH |
5,620 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 400 mA | - | 0805 (2012 Metric) | - | 700mOhm | 220 nH | 50 @ 250MHz | 850MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
SPM5030VT-2R2M-DFIXED IND 2.2UH 6.6A 0.02OHM SMD |
2,844 | - |
|
数据表 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 6.6 A | 9A | 5030 | Shielded | 20mOhm | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
WRFI0805-S-R16JTWirewound RF Inductor,0805,160nH |
5,220 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 400 mA | - | 0805 (2012 Metric) | - | 600mOhm | 160 nH | 50 @ 250MHz | 870MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
B82472G6103M000FIXED IND 10UH 1.9A 53 MOHM SMD |
2,671 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.4A | - | Shielded | 53mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
WRFI0603-S-36NJTWirewound RF Inductor,0603,36nH, |
4,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | - | 250mOhm | 36 nH | 37 @ 250MHz | 2.3GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|

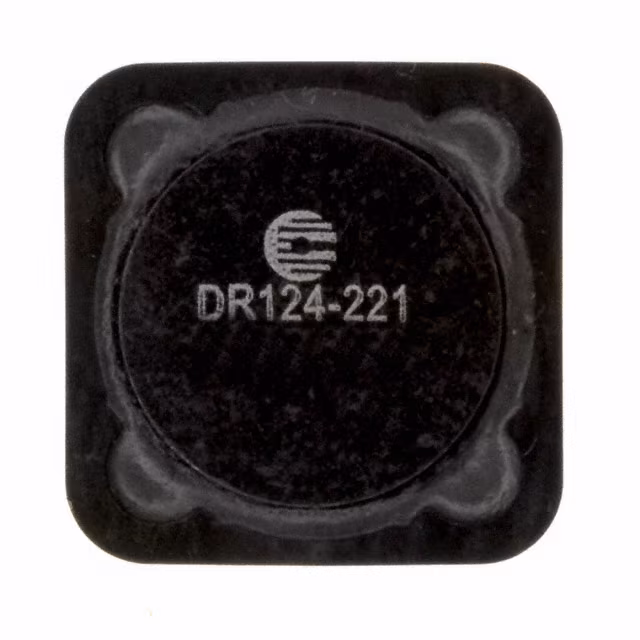

DR124-221-RFIXED IND 220UH 1A 669.6MOHM SMD |
2,605 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.15A | - | Shielded | 669.6mOhm Max | 220 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
WRFI0603-S-39NJTWirewound RF Inductor,0603,39nH, |
4,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | - | 250mOhm | 39 nH | 40 @ 250MHz | 2.2GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
74404064560FIXED IND 56UH 1.1A 220MOHM SMD |
2,557 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.5A | 6045 | Shielded | 220mOhm | 56 µH | - | 8.3MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
WRFI0603-S-20NJTWirewound RF Inductor,0603,20nH, |
4,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | - | 190mOhm | 20 nH | 40 @ 250MHz | 3GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
744040640047FIXED IND 470NH 6.85A 6 MOHM SMD |
2,521 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 8 A | 16A | 6045 | Shielded | 6mOhm | 470 nH | - | 235MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
WRFI0603-S-51NJTWirewound RF Inductor,0603,51nH, |
4,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | - | 280mOhm | 51 nH | 38 @ 200MHz | 1.9GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 200 MHz | 0.040" (1.02mm) |
|
|
AIMC-Q0603-1N5S-TIND 1.5NH 1A 100MOHM |
4,000 | - |
|
数据表 |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 100mOhm Max | 1.5 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
AIMC-Q0603-2N7S-TIND 2.7NH 1A 130MOHM |
4,000 | - |
|
数据表 |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 130mOhm Max | 2.7 nH | 10 @ 100MHz | 7GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
AIMC-Q0603-1N8S-TIND 1.8NH 1A 100MOHM |
4,000 | - |
|
数据表 |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 100mOhm Max | 1.8 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
AIMC-Q0603-5N6S-TIND 5.6NH 0.7A 230MOHM |
4,000 | - |
|
数据表 |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 700 mA | - | 0603 (1608 Metric) | Unshielded | 230mOhm Max | 5.6 nH | 10 @ 100MHz | 4GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
AIMC-Q0603-3N3S-TIND 3.3NH 1A 130MOHM |
3,994 | - |
|
数据表 |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 130mOhm Max | 3.3 nH | 10 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
AWCS001610083N6J00INDUCTOR RF |
3,990 | - |
|
数据表 |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 | Unshielded | 63mOhm Max | 3.6 nH | 22 @ 250MHz | 5.9GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
