固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1008R6-R150-RFIXED IND 150NH 74A 0.18MOHM SMD |
10,190 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 74 A | 64A | - | Shielded | 0.18mOhm | 150 nH | - | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
74479299210FIXED IND 1UH 3A 46 MOHM SMD |
8,884 | - |
|
数据表 |
WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | ±30% | 3 A | 5.2A | - | Shielded | 46mOhm Max | 1 µH | - | 50MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|

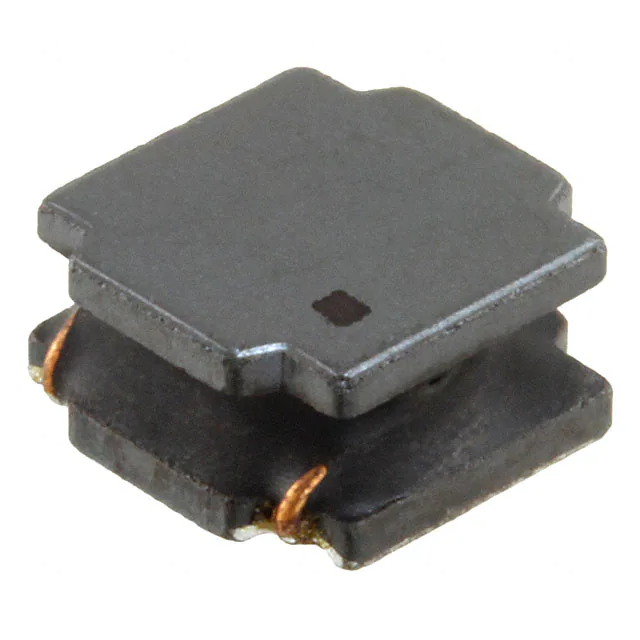

74404084680FIXED IND 68UH 1.25A 196MOHM SMD |
7,610 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.25 A | 1.7A | 8040 | Shielded | 196mOhm | 68 µH | - | 8.1MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
74404064221FIXED IND 220UH 660MA 850MOHM SM |
6,480 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 660 mA | 750mA | 6045 | Shielded | 850mOhm | 220 µH | - | 3.97MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
74404054102FIXED IND 1MH 200MA 6 OHM SMD |
6,385 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 200 mA | 260mA | 5040 | Shielded | 6Ohm | 1 mH | - | 1.9MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
74404052101FIXED IND 100UH 550MA 1.09OHM SM |
5,890 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 550 mA | 600mA | 5020 | Shielded | 1.09Ohm | 100 µH | - | 8.7MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
B82442T1104K050FIXED IND 100UH 510MA 990MOHM SM |
5,246 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 510 mA | 760mA | 2220 (5650 Metric) | Unshielded | 990mOhm Max | 100 µH | 20 @ 796kHz | 6.1MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 125°C | 796 kHz | 0.209" (5.30mm) |
|
AWCS0016100833NJ00INDUCTOR RF |
4,000 | - |
|
数据表 |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 | Unshielded | 220mOhm Max | 33 nH | 40 @ 250MHz | 2.3GHz | Surface Mount | - | 0.063" L x 0.040" W (1.60mm x 1.02mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
B82472G6102M000FIXED IND 1UH 3.6A 15 MOHM SMD |
5,030 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 3.3A | - | Shielded | 15mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
AWCS0016100818NJ00INDUCTOR RF |
4,000 | - |
|
数据表 |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 | Unshielded | 170mOhm Max | 18 nH | 35 @ 250MHz | 3.1GHz | Surface Mount | - | 0.063" L x 0.040" W (1.60mm x 1.02mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
IHLP2020CZER220M11FIXED IND 22UH 1.9A 270 MOHM SMD |
4,709 | - |
|
数据表 |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.9 A | 1.7A | - | Shielded | 270mOhm Max | 22 µH | - | 10MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
74479299222FIXED IND 2.2UH 2.1A 106MOHM SMD |
4,428 | - |
|
数据表 |
WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | ±30% | 2.1 A | 3.5A | - | Shielded | 106mOhm Max | 2.2 µH | - | 25MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
74404052470FIXED IND 47UH 800MA 521MOHM SMD |
4,285 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 950mA | 5020 | Shielded | 521mOhm | 47 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
IHLP2525CZER1R0M11FIXED IND 1UH 12.5A 8 MOHM SMD |
4,220 | - |
|
数据表 |
IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12.5 A | 9.5A | - | Shielded | 8mOhm Max | 1 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
74404064331FIXED IND 330UH 510MA 1.177 OHM |
4,075 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 0.58 A | 650mA | 6045 | Shielded | 1.177Ohm | 330 µH | - | 3.42MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
HCM1A0805-470-RFIXED IND 47UH 1.8A 160MOHM SMD |
4,068 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 1.8 A | 3.2A | - | Shielded | 160mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
LQP03TQ62NH02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±3% | 80 mA | - | 0201 (0603 Metric) | Unshielded | 7Ohm Max | 62 nH | 9 @ 300MHz | 1.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.32mm) |
|
|
LQP03TQ43NH02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±3% | 130 mA | - | 0201 (0603 Metric) | Unshielded | 4Ohm Max | 43 nH | 11 @ 300MHz | 1.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.32mm) |
|
P0751.473NLTFIXED IND 47UH 1.6A 168 MOHM SMD |
3,992 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.6 A | 1.6A | - | Unshielded | 168mOhm Max | 47 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
|
WRFI0805-S-3N3JTWirewound RF Inductor,0805,3.3nH |
5,720 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 600 mA | - | 0805 (2012 Metric) | - | 80mOhm | 3.3 nH | 50 @ 1500MHz | 6GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
