固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4342.153NLTFIXED IND 15UH 6.25A 45 MOHM SMD |
3,946 | - |
|
数据表 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6.25 A | 10A | - | Shielded | 45mOhm Max | 15 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
ADL3225VT-100M-TL000FIXED IND 10UH 450MA 150MOHM SMD |
3,408 | - |
|
数据表 |
ADL-VT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 450mA | 1210 (3225 Metric) | Shielded | 150mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.098" (2.50mm) |
|
WRFI0603-S-4N3JTWirewound RF Inductor,0603,4.3nH |
6,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | - | 63mOhm | 4.3 nH | 22 @ 250MHz | 5.8GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
.jpg)
|
LQP02TN16NJ02DFIXED IND 16NH 140MA 3.5 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 3.5Ohm Max | 16 nH | 7 @ 500MHz | 2.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
IHLP2020BZER100M11FIXED IND 10UH 2.2A 182.8MOHM SM |
3,116 | - |
|
数据表 |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.2 A | 2A | - | Shielded | 182.8mOhm Max | 10 µH | - | 17MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
WRFI0603-S-18NJTWirewound RF Inductor,0603,18nH, |
6,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | - | 170mOhm | 18 nH | 35 @ 250MHz | 3.1GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
LQP02TN20NJ02DFIXED IND 20NH 100MA 5 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 100 mA | - | 01005 (0402 Metric) | Unshielded | 5Ohm Max | 20 nH | 6 @ 500MHz | 2.25GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
ASCH001005051N1SCPINDUCTOR RF |
0 | - |
|
数据表 |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0402 | Shielded | 100mOhm Max | 1.1 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
ASCH001005051N8SCPINDUCTOR RF |
0 | - |
|
数据表 |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0402 | Shielded | 100mOhm Max | 1.8 nH | 8 @ 100MHz | 8.7GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
ASCH001005052N4SCPINDUCTOR RF |
0 | - |
|
数据表 |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0402 | Shielded | 150mOhm Max | 2.4 nH | 8 @ 100MHz | 7.7GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
ASCH001005052N0SCPINDUCTOR RF |
0 | - |
|
数据表 |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0402 | Shielded | 100mOhm Max | 2 nH | 8 @ 100MHz | 8.1GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|

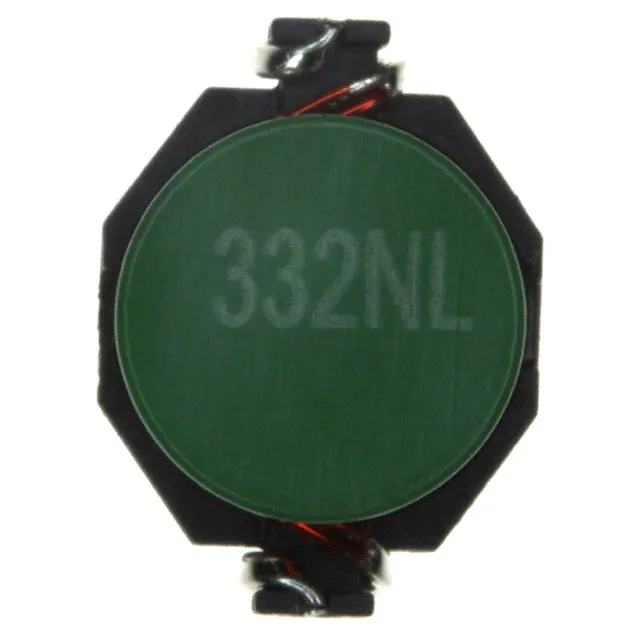

P0751.332NLTFIXED IND 3.3UH 5.4A 18 MOHM SMD |
3,036 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.4 A | 6.4A | - | Unshielded | 18mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
CLF7045T-470M-DFIXED IND 47UH 1.2A 180 MOHM SMD |
2,010 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | - | Shielded | 180mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
PA4342.103NLTFIXED IND 10UH 7.5A 30 MOHM SMD |
1,844 | - |
|
数据表 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7.5 A | 12A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PA4342.223NLTFIXED IND 22UH 5A 74 MOHM SMD |
1,793 | - |
|
数据表 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 7A | - | Shielded | 74mOhm Max | 22 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
B82472G6472M000FIXED IND 4.7UH 2.5A 30 MOHM SMD |
1,648 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2A | - | Shielded | 30mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
PA4342.151NLTFIXED IND 150NH 43A 0.6 MOHM SMD |
1,596 | - |
|
数据表 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±30% | 43 A | 75A | - | Shielded | 0.6mOhm Max | 150 nH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
B82472G6683M000FIXED IND 68UH 820MA 260MOHM SMD |
1,557 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 820 mA | 680mA | - | Shielded | 260mOhm Max | 68 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
CLF7045T-6R8N-DFIXED IND 6.8UH 3A 35.1 MOHM SMD |
990 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 3 A | 3.3A | - | Shielded | 35.1mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

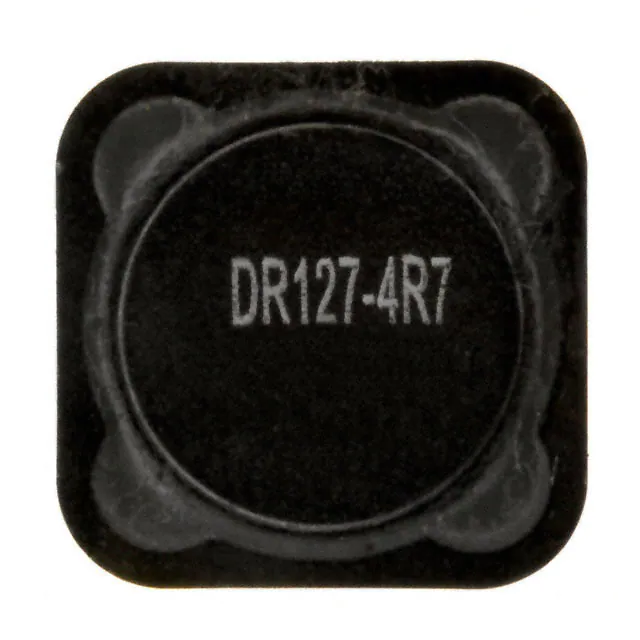

DR127-4R7-RFIXED IND 4.7UH 8.25A 9.17 MOHM |
155 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 8.25 A | 16.5A | - | Shielded | 9.17mOhm | 4.7 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
