固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020BZER3R3M01FIXED IND 3.3UH 3.3A 85.5MOHM SM |
6,397 | - |
|
数据表 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.3 A | 8.5A | - | Shielded | 85.5mOhm Max | 3.3 µH | - | 30MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
74479275210FIXED IND 1UH 1.8A 78 MOHM SMD |
6,155 | - |
|
数据表 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.8 A | 2.1A | - | Shielded | 78mOhm Max | 1 µH | - | 80MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
74404086102FIXED IND 1MH 480MA 2.35 OHM SMD |
2,740 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 0.4 A | 650mA | 8065 | Shielded | 2.35Ohm | 1 mH | - | 1.39MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
74404086152FIXED IND 1.5MH 360MA 3.65OHM SM |
2,594 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 540mA | 8065 | Shielded | 3.65Ohm | 1.5 mH | - | 1.13MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
LQP02HV1N6C02LFIXED IND 1.6NH 680MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 680 mA | - | 1005 | Unshielded | 70mOhm Max | 1.6 nH | 17 @ 500MHz | 12.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
SDCL0402H18NHT01FIXED IND 18NH 140MA 3.2 OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 140 mA | - | 01005 | Unshielded | 3.2Ohm Max | 18 nH | 7 @ 500MHz | 2.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
SDCL0402H4N3JT01FIXED IND 4.3NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 180 mA | - | 01005 | Unshielded | 1.1Ohm Max | 4.3 nH | 8 @ 500MHz | 7.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
SDCL0402H11NHT01FIXED IND 11NH 140MA 2.4 OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 140 mA | - | 01005 | Unshielded | 2.4Ohm Max | 11 nH | 8 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
NS12555T152MNFIXED IND 1.5MH 440MA 2.076 OHM |
2,199 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 440 mA | 400mA | - | Shielded | 2.076Ohm Max | 1.5 mH | - | 1.7MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
LQP02HV12NJ02LFIXED IND 12NH 220MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±5% | 220 mA | - | 1005 | Unshielded | 650mOhm Max | 12 nH | 16 @ 500MHz | 5.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
74479275147FIXED IND 470NH 2.6A 47 MOHM SMD |
2,018 | - |
|
数据表 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.6 A | 3.3A | - | Shielded | 47mOhm Max | 470 nH | - | 140MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
LQP02HV3N0C02LFIXED IND 3NH 360MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 360 mA | - | 1005 | Unshielded | 240mOhm Max | 3 nH | 16 @ 500MHz | 10.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|

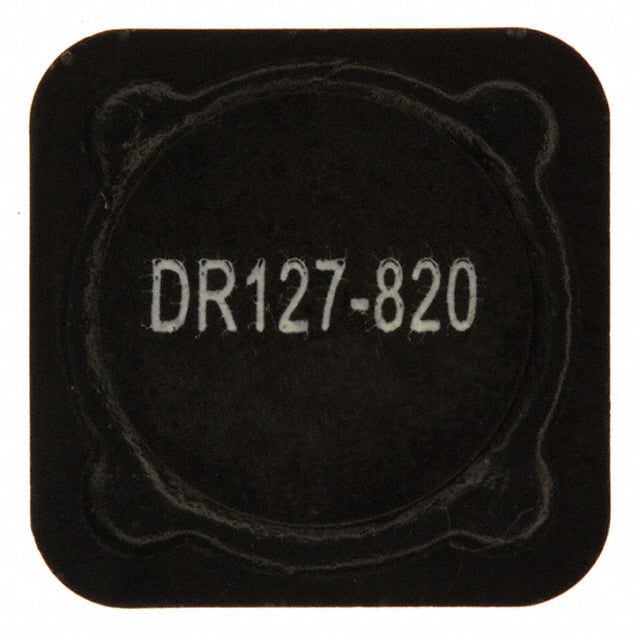

DR127-820-RFIXED IND 82UH 2.09A 143MOHM SMD |
1,692 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.09 A | 4.06A | - | Shielded | 143mOhm | 82 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
LQP02HV1N9C02LFIXED IND 1.9NH 640MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 640 mA | - | 1005 | Unshielded | 80mOhm Max | 1.9 nH | 17 @ 500MHz | 11.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
74404086222FIXED IND 2.2MH 310MA 5 OHM SMD |
1,262 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 310 mA | 450mA | 8065 | Shielded | 5Ohm | 2.2 mH | - | 924kHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
LQP02HV2N1C02LFIXED IND 2.1NH 600MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 600 mA | - | 1005 | Unshielded | 90mOhm Max | 2.1 nH | 17 @ 500MHz | 11.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
74404086472FIXED IND 4.7MH 190MA 12.15 OHM |
882 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 190 mA | 290mA | 8065 | Shielded | 12.15Ohm | 4.7 mH | - | 620kHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
LQP02HV1N4C02LFIXED IND 1.4NH 730MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 730 mA | - | 1005 | Unshielded | 60mOhm Max | 1.4 nH | 17 @ 500MHz | 13.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
IHLP2525CZER100MA1IHLP-2525CZ-A1 10 20% ER E3 |
641 | - |
|
数据表 |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3 A | 7A | - | Shielded | 105mOhm Max | 10 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SDR1307A-101KFIXED IND 100UH 1.9A 180MOHM SMD |
431 | - |
|
数据表 |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.9 A | 3A | - | Unshielded | 180mOhm Max | 100 µH | 25 @ 796kHz | 5.8MHz | Surface Mount | AEC-Q200 | 0.512" Dia (13.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.287" (7.30mm) |
