固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL0402H0N9BT01FIXED IND 0.9NH 320MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 320 mA | - | 01005 | Unshielded | 400mOhm Max | 0.9 nH | 8 @ 500MHz | 13GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
SLF12575T-220M4R0-PFFIXED IND 22UH 4A 31.6 MOHM SMD |
1,262 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 4A | - | Shielded | 31.6mOhm Max | 22 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 105°C | 1 kHz | 0.309" (7.85mm) |
|

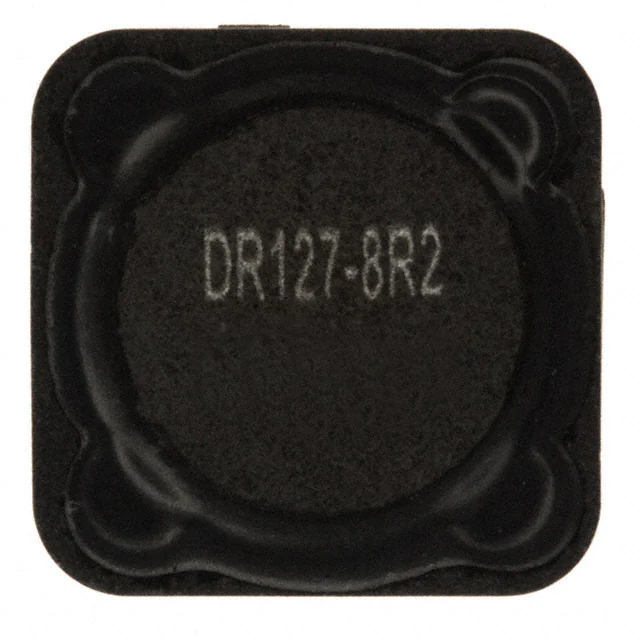

DR127-8R2-RFIXED IND 8.2UH 6.32A 15.7 MOHM |
1,258 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.32 A | 12.2A | - | Shielded | 15.7mOhm | 8.2 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SLF7045T-331MR35-HFIXED IND 330UH 350MA 1.38OHM SM |
1,254 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 350 mA | 350mA | - | Shielded | 1.38Ohm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
7447706220FIXED IND 22UH 3.7A 41 MOHM SMD |
1,040 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.7 A | 5.2A | - | Shielded | 41mOhm Max | 22 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706150FIXED IND 15UH 4.7A 28 MOHM SMD |
899 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.7 A | 6.4A | - | Shielded | 28mOhm Max | 15 µH | - | 13.9MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706471FIXED IND 470UH 860MA 610MOHM SM |
756 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 860 mA | 1.15A | - | Shielded | 610mOhm Max | 470 µH | - | 2.3MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706102FIXED IND 1MH 600MA 1.25 OHM SMD |
736 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 600 mA | 800mA | - | Shielded | 1.25Ohm Max | 1 mH | - | 1.45MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706151FIXED IND 150UH 1.55A 200MOHM SM |
672 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.55 A | 2A | - | Shielded | 200mOhm Max | 150 µH | - | 4.2MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706221FIXED IND 220UH 1.25A 310MOHM SM |
617 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.25 A | 1.7A | - | Shielded | 310mOhm Max | 220 µH | - | 3.3MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706470FIXED IND 47UH 2.7A 72 MOHM SMD |
414 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.7 A | 3.6A | - | Shielded | 72mOhm Max | 47 µH | - | 7.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|
|
7447706047FIXED IND 4.7UH 8.1A 12MOHM SMD |
182 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 8.1 A | 11.5A | - | Shielded | 12mOhm Max | 4.7 µH | - | 27.4MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.236" (6.00mm) |
|

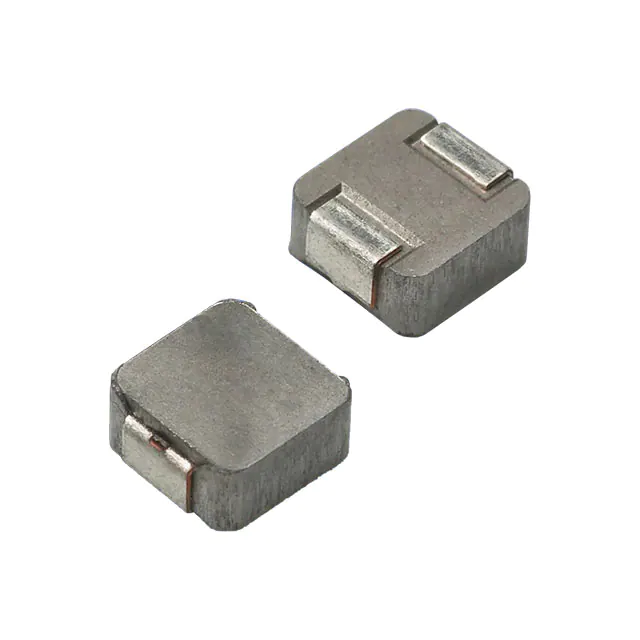

IHLP1616BZER1R0M1AIHLP-1616BZ-1A 1 20% ER E3 |
4,881 | - |
|
数据表 |
IHLP-1616BZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 4.5 A | 5A | - | Shielded | 27mOhm Max | 1 µH | - | 64MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
IHLP1616BZERR47M0HFIXED IND 470NH 8.5A 14.1MOHM SM |
3,959 | - |
|
数据表 |
IHLP-1616BZ-0H | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 8.5 A | 13.1A | - | Shielded | 14.1mOhm Max | 470 nH | - | 145MHz | Surface Mount | - | 0.160" L x 0.160" W (4.06mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
ISC1812ER220JFIXED IND 22UH 227MA 1.36OHM SMD |
3,950 | - |
|
数据表 |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±5% | 227 mA | - | 1812 | Shielded | 1.36Ohm Max | 22 µH | 50 @ 2.52MHz | 14MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.134" (3.40mm) |
|
LQW18AS3N9G00DFIXED IND 3.9NH 700MA 80MOHM SMD |
1,580 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 700 mA | - | 0603 | Unshielded | 80mOhm Max | 3.9 nH | 22 @ 250MHz | 6.9GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 100 MHz | 0.039" (1.00mm) |
|
SPM6530T-6R8MINDUCTORS FOR POWER CIRCUITS, WO |
1,286 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 4 A | 4A | - | Shielded | 53.3mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SPM6530T-100MINDUCTORS FOR POWER CIRCUITS, WO |
1,111 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 3.6 A | 3.8A | - | Shielded | 72.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
NLCV32T-1R5M-EFRFIXED IND 1.5UH 1.4A 114MOHM SMD |
1,315 | - |
|
数据表 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | - | 1210 | Unshielded | 114mOhm Max | 1.5 µH | 15 @ 7.96MHz | 80MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.094" (2.40mm) |
|
CDRH127L125NP-330MCFIXED IND 33UH 3.8A 53 MOHM SMD |
546 | - |
|
数据表 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 3.8 A | 4.3A | - | Shielded | 53mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
