固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWCS0012070722NG00FIXED IND 22NH 400MA 300MOHM SMD |
38,763 | - |
|
数据表 |
BWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0402 | Unshielded | 300mOhm Max | 22 nH | 25 @ 250MHz | 2.8GHz | Surface Mount | - | 0.047" L x 0.028" W (1.19mm x 0.70mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
SRP1038CC-330MIND SMD 33UH 4A |
426 | - |
|
数据表 |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±20% | 4 A | 6A | - | Shielded | 112mOhm Max | 33 µH | - | 6MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
LQP02HV1N0C02LFIXED IND 1NH 900MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 900 mA | - | 1005 | Unshielded | 40mOhm Max | 1 nH | 17 @ 500MHz | 16.6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
IHLP4040EDER220M5AFIXED IND 22UH 5.53A 49.22 MOHM |
324 | - |
|
数据表 |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.53 A | 4.99A | 4040 | Shielded | 49.22mOhm Max | 22 µH | - | 7.23MHz | Surface Mount | AEC-Q200 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
LQP02HV3N5C02LFIXED IND 3.5NH 360MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 360 mA | - | 1005 | Unshielded | 240mOhm Max | 3.5 nH | 16 @ 500MHz | 9.4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
SDCL0402H3N9BT01FIXED IND 3.9NH 180MA 1 OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 180 mA | - | 01005 | Unshielded | 1Ohm Max | 3.9 nH | 8 @ 500MHz | 7.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
LQP02HV2N9C02LFIXED IND 2.9NH 390MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 390 mA | - | 1005 | Unshielded | 210mOhm Max | 2.9 nH | 16 @ 500MHz | 11.3GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|

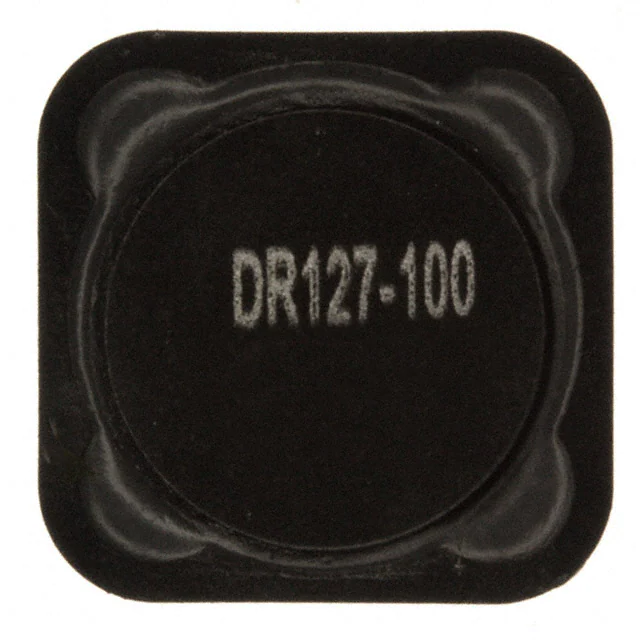

DR127-100-RFIXED IND 10UH 6.04A 17.2MOHM SM |
24,938 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.04 A | 11.2A | - | Shielded | 17.2mOhm | 10 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
TFI0201S-1N8BTThin Film Inductor,0201,Standard |
10,005 | - |
|
数据表 |
TFI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | 350mOhm | 1.8 nH | 8 @ 500MHz | 9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | - | 0.009" (0.23mm) |
|
|
LQP02HV3N3C02LFIXED IND 3.3NH 360MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 360 mA | - | 1005 | Unshielded | 240mOhm Max | 3.3 nH | 16 @ 500MHz | 10.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
74404086471FIXED IND 470UH 650MA 1.2OHM SMD |
10,946 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | 1.08A | 8065 | Shielded | 1.2Ohm | 470 µH | - | 1.8MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
SDCL0402H6N2HT01FIXED IND 6.2NH 140MA 1.6OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 140 mA | - | 01005 | Unshielded | 1.6Ohm Max | 6.2 nH | 8 @ 500MHz | 5.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
LQP02HV4N1C02LFIXED IND 4.1NH 360MA NONAUTO |
30,000 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 360 mA | - | 1005 | Unshielded | 240mOhm Max | 4.1 nH | 16 @ 500MHz | 7.1GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
SDCL0402H11NJT01FIXED IND 11NH 140MA 2.4 OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 140 mA | - | 01005 | Unshielded | 2.4Ohm Max | 11 nH | 8 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
SDCL0402H4N3HT01FIXED IND 4.3NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
SDCL0402H-01 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 180 mA | - | 01005 | Unshielded | 1.1Ohm Max | 4.3 nH | 8 @ 500MHz | 7.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
ML03KT4R7FIXED IND 4.7UH 15MA 2.1 OHM SMD |
12,000 | - |
|
数据表 |
ML | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 15 mA | - | 0603 | Unshielded | 2.1Ohm Max | 4.7 µH | 35 @ 10MHz | 33MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 10 MHz | 0.039" (1.00mm) |
|
|
TFI0402S-6N8BTThin Film Inductor,0402,Standard |
30,000 | - |
|
数据表 |
TFI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 280 mA | - | 0402 (1005 Metric) | Unshielded | 850mOhm | 6.8 nH | 13 @ 500MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | - | 0.013" (0.32mm) |
|
|
TFI0402Q-4N7BTThin Film Inductor,0402,High Q,4 |
16,160 | - |
|
数据表 |
TFI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 410 mA | - | 0402 (1005 Metric) | Unshielded | 450mOhm | 4.7 nH | 16 @ 500MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | - | 0.013" (0.32mm) |
|
|
TFI0402Q-6N8BTThin Film Inductor,0402,High Q,6 |
10,114 | - |
|
数据表 |
TFI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 310 mA | - | 0402 (1005 Metric) | Unshielded | 700mOhm | 6.8 nH | 16 @ 500MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | - | 0.013" (0.32mm) |
|
|
TFI0201S-1N8BT-CTThin Film Inductor,0201,Standard |
10,005 | - |
|
数据表 |
TFI | 0201 (0603 Metric) | Strip | Active | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | 350mOhm | 1.8 nH | 8 @ 500MHz | 9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | - | 0.009" (0.23mm) |
