固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABER1R0M11FIXED IND 1UH 4.2A 47 MOHM SMD |
5,695 | - |
|
数据表 |
IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.2 A | 4.5A | - | Shielded | 47mOhm Max | 1 µH | - | 71MHz | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
RL622-104K-RCFIXED IND 100MH 20MA 235 OHM TH |
3,080 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 20 mA | - | - | Unshielded | 235Ohm Max | 100 mH | 20 @ 25.2kHz | 100kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 25.2 kHz | 0.433" (11.00mm) |
|
B82442T1224K000FIXED IND 220UH 330MA 2.21OHM SM |
2,834 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 330 mA | 640mA | - | Unshielded | 2.21Ohm Max | 220 µH | 20 @ 796kHz | 3.9MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 796 kHz | 0.209" (5.30mm) |
|
|
B82442T1103K000FIXED IND 10UH 1.42A 132MOHM SMD |
2,619 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.42 A | 2.8A | - | Unshielded | 132mOhm Max | 10 µH | 15 @ 2.52MHz | 19MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.209" (5.30mm) |
|
SPM7054VT-100M-DFIXED IND 10UH 5.5A 0.0369OHM SM |
2,237 | - |
|
数据表 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5.5 A | 8.7A | 7054 | Shielded | 36.9mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
SRR1206-100MLFIXED IND 10UH 3.3A 35 MOHM SMD |
2,027 | - |
|
数据表 |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.3 A | 5.7A | - | Shielded | 35mOhm Max | 10 µH | 18 @ 2.52MHz | 18MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|

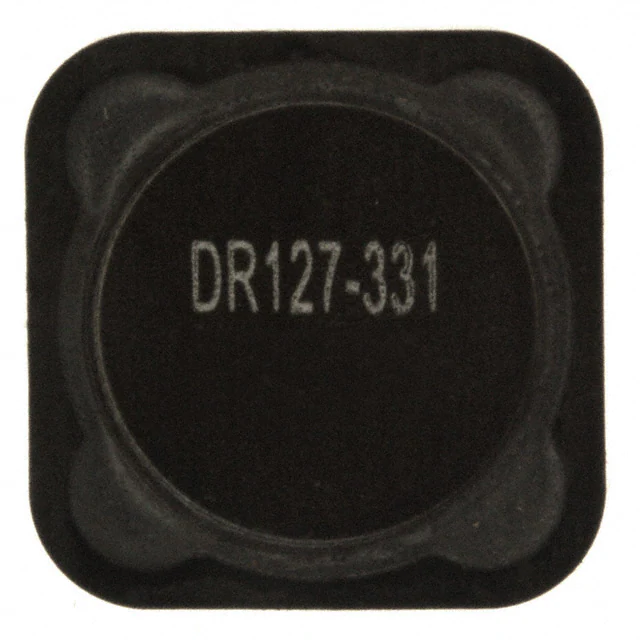

DR127-331-RFIXED IND 330UH 1.04A 574MOHM SM |
1,030 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.04 A | 2.01A | - | Shielded | 574mOhm | 330 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SRR1205-500YLFIXED IND 50UH 1.5A 200 MOHM SMD |
773 | - |
|
数据表 |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 1.5 A | 2.8A | - | Shielded | 200mOhm Max | 50 µH | 18 @ 2.52MHz | 7MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
SPM5030T-3R3M-HZFIXED IND 3.3UH 6.5A 29.48 MOHM |
431 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 6.5 A | 3.2A | - | Shielded | 29.48mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDMC6D28NP-4R7MCFIXED IND 4.7UH 3.7A 46.4MOHM SM |
37,103 | - |
|
数据表 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 3.7 A | 4.3A | - | Shielded | 46.4mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.118" (3.00mm) |
|
IHLP2020ABER4R7M01FIXED IND 4.7UH 2.2A 168MOHM SMD |
6,962 | - |
|
数据表 |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.2 A | 4.4A | - | Shielded | 168mOhm Max | 4.7 µH | - | 30MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
RCH110NP-101KFIXED IND 100UH 1.7A 160 MOHM TH |
5,587 | - |
|
数据表 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | - | - | Unshielded | 160mOhm Max | 100 µH | - | 5.7MHz | Through Hole | - | 0.394" Dia (10.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.413" (10.50mm) |
|
HCI1608F-8N2J-MIND 8.2NH 0.24OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 240mOhm Max | 8.2 nH | 10 @ 100MHz | 3.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|

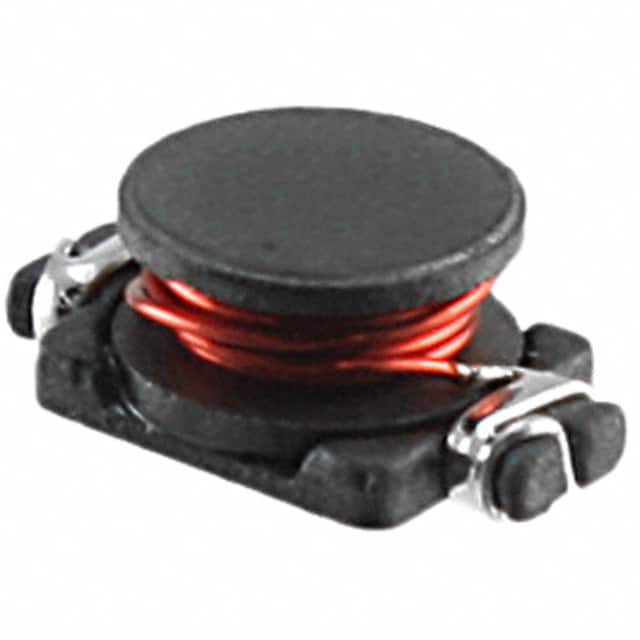

P0770.103NLTFIXED IND 10UH 1.1A 160 MOHM SMD |
5,407 | - |
|
数据表 |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.1 A | 1.1A | - | Unshielded | 160mOhm Max | 10 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 130°C | 100 kHz | 0.115" (2.92mm) |
|
|
CDMC6D28NP-1R0MCFIXED IND 1UH 9.5A 8.8 MOHM SMD |
3,796 | - |
|
数据表 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | ±20% | 9.5 A | 8.8A | - | Shielded | 8.8mOhm Max | 1 µH | - | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.118" (3.00mm) |
|
|
HCI1608F-R18J-MIND 180NH 1.3OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 1.3Ohm Max | 180 nH | 8 @ 50MHz | 400MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 50 MHz | 0.037" (0.95mm) | |
|
DR125-330-RFIXED IND 33UH 3.28A 50.5MOHM SM |
3,493 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.28 A | 3.84A | - | Shielded | 50.5mOhm | 33 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
.jpg)
|
74479763222FIXED IND 2.2UH 800MA 375MOHM SM |
3,237 | - |
|
数据表 |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | ±20% | 800 mA | 280mA | 0603 | Shielded | 375mOhm Max | 2.2 µH | 15 @ 1MHz | 80MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
PA5404.152NLTFIXED IND 1.5UH 12A 9 MOHM SMD |
1,754 | - |
|
数据表 |
PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12 A | 16.5A | - | Shielded | 9mOhm Max | 1.5 µH | - | 43MHz | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
#B952AS-H-220M=P3FIXED IND 22UH 1.9A 87 MOHM SMD |
1,202 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 2.4A | - | Shielded | 87mOhm Max | 22 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.189" (4.80mm) |
