固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

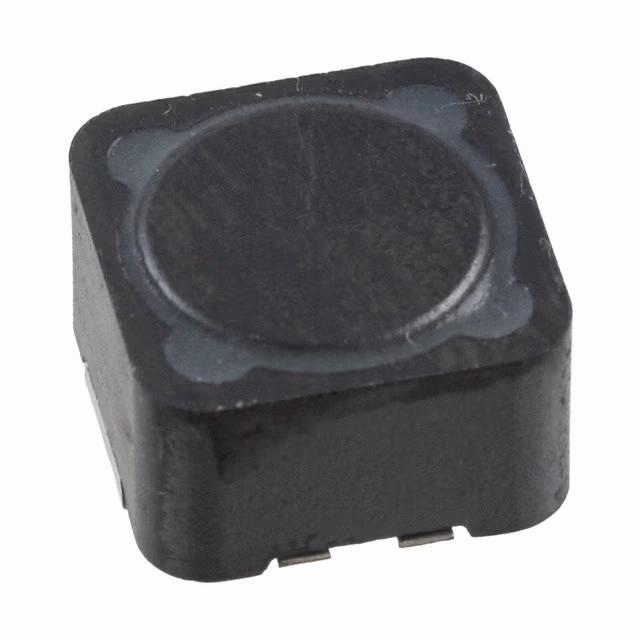

DR127-471-RFIXED IND 470UH 850MA 861MOHM SM |
1,432 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 1.68A | - | Shielded | 861mOhm | 470 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
AGP2923-223KLFIXED IND 22UH 26A 2.6MOHM SM |
2,120 | - |
|
数据表 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 26 A | 12.2A | - | Unshielded | 2.6mOhm Max | 22 µH | - | 13MHz | Through Hole | AEC-Q200 | 1.060" L x 0.668" W (26.92mm x 16.97mm) | - | -40°C ~ 140°C | 300 kHz | 0.935" (23.75mm) |
|
AIUR-06-151KFIXED IND 150UH 1.9A 162 MOHM TH |
1,426 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.9 A | 2.4A | - | Unshielded | 162mOhm Max | 150 µH | - | - | Through Hole | - | 0.500" Dia (12.70mm) | - | -25°C ~ 85°C | 1 kHz | 0.710" (18.03mm) |
|
|
74404032330FIXED IND 33UH 500MA 911MOHM SMD |
1,424 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 540mA | 3015 | Shielded | 911mOhm | 33 µH | - | 17MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
74404032068FIXED IND 6.8UH 1.16A 120MOHM SM |
1,175 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.16 A | 940mA | 3015 | Shielded | 120mOhm | 6.8 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
DR125-471-RFIXED IND 470UH 870MA 718MOHM SM |
1,165 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 870 mA | 1.02A | - | Shielded | 718mOhm | 470 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
AIUR-06-101KFIXED IND 100UH 2.1A 108 MOHM TH |
1,008 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.1 A | 2.8A | - | Unshielded | 108mOhm Max | 100 µH | - | - | Through Hole | - | 0.500" Dia (12.70mm) | - | -25°C ~ 85°C | 1 kHz | 0.710" (18.03mm) |
|
74404024150FIXED IND 15UH 470MA 830MOHM SMD |
940 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 470 mA | 750mA | 2520 | Shielded | 830mOhm | 15 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
RL622-103K-RCFIXED IND 10MH 50MA 25 OHM TH |
906 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | - | Unshielded | 25Ohm Max | 10 mH | 40 @ 79.6kHz | 300kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.433" (11.00mm) |
|
|
EXLA1V0505-100-RIND MOLDED SHLD 10.0UH 3.8A |
900 | - |
|
数据表 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 5 A | 5.4A | - | Shielded | 43mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
PCMB053T-2R2MSFIXED IND 2.2UH 5.5A 35 MOHM SMD |
773 | - |
|
数据表 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 5.5 A | 9A | - | Unshielded | 35mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | - | - | 100 kHz | 0.110" (2.80mm) |
|
|
AIUR-06-100KFIXED IND 10UH 5A 31 MOHM TH |
545 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 5 A | 8.8A | - | Unshielded | 31mOhm Max | 10 µH | - | - | Through Hole | - | 0.500" Dia (12.70mm) | - | -25°C ~ 85°C | 1 kHz | 0.710" (18.03mm) |
|
|
RL622-1R5K-RCFIXED IND 1.5UH 8.5A 16 MOHM TH |
538 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 8.5 A | - | - | Unshielded | 16mOhm Max | 1.5 µH | 20 @ 7.96MHz | 130MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 7.96 MHz | 0.433" (11.00mm) |
|
LSQBA251818T150KFIXED IND 15UH 145MA 0.32OHM SMD |
1,995 | - |
|
数据表 |
LSQB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 145 mA | - | 1007 | Unshielded | 320mOhm | 15 µH | - | 23MHz | Surface Mount | - | 0.098" L x 0.071" W (2.50mm x 1.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.079" (2.00mm) |
|
|
AGP2923-103KLFIXED IND 10UH 26A 2.6MOHM SM |
1,541 | - |
|
数据表 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 26 A | 30A | - | Unshielded | 2.6mOhm Max | 10 µH | - | 20MHz | Surface Mount | AEC-Q200 | 1.060" L x 0.668" W (26.92mm x 16.97mm) | - | -40°C ~ 140°C | 300 kHz | 0.935" (23.75mm) |
|
|
AGP2923-333KLFIXED IND 33UH 26A 2.6MOHM SM |
978 | - |
|
数据表 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 26 A | 7.5A | - | Unshielded | 2.6mOhm Max | 33 µH | - | 10MHz | Surface Mount | AEC-Q200 | 1.060" L x 0.668" W (26.92mm x 16.97mm) | - | -40°C ~ 140°C | 300 kHz | 0.935" (23.75mm) |
|
|
AGP2923-472KLFIXED IND 4.7UH 26A 2.6MOHM SM |
798 | - |
|
数据表 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 26 A | 63A | - | Unshielded | 2.6mOhm Max | 4.7 µH | - | 30MHz | Surface Mount | AEC-Q200 | 1.060" L x 0.668" W (26.92mm x 16.97mm) | - | -40°C ~ 140°C | 300 kHz | 0.935" (23.75mm) |
|
LSQBA251818T471KFIXED IND 470UH 25MA 10 OHM SMD |
1,990 | - |
|
数据表 |
LSQB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 25 mA | - | 1007 | Unshielded | 10Ohm | 470 µH | - | 3.5MHz | Surface Mount | - | 0.098" L x 0.071" W (2.50mm x 1.80mm) | - | -40°C ~ 105°C | 796 kHz | 0.079" (2.00mm) |
|
LSQBA251818T681KFIXED IND 680UH 20MA 17 OHM SMD |
1,990 | - |
|
数据表 |
LSQB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 20 mA | - | 1007 | Unshielded | 17Ohm | 680 µH | - | 3MHz | Surface Mount | - | 0.098" L x 0.071" W (2.50mm x 1.80mm) | - | -40°C ~ 105°C | 796 kHz | 0.079" (2.00mm) |
|
MCQ1V2012-1R2-RFIXED IND 1.2UH 50MA 400MOHM SMD |
0 | - |
|
数据表 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 50 mA | - | 0805 | Unshielded | 400mOhm Max | 1.2 µH | 35 @ 10MHz | 65MHz | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 85°C | 10 MHz | 0.043" (1.10mm) |
