固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1208-330YLFIXED IND 33UH 2.8A 62 MOHM SMD |
19,679 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 2.8 A | 3.8A | - | Shielded | 62mOhm Max | 33 µH | 23 @ 2.52MHz | 6.5MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
HCI1608F-1N2S-MIND 1.2NH 0.05OHM 300MA |
0 | - |
|
数据表 |
HCI1608F-M | 0603 (1608 Metric) | Active | Molded | - | ±20% | 300 mA | - | 0603 | Unshielded | 50mOhm Max | 1.2 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
|
SRR1208-100MLFIXED IND 10UH 5A 21 MOHM SMD |
16,314 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5 A | 6.7A | - | Shielded | 21mOhm Max | 10 µH | 20 @ 2.52MHz | 15MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
HCI1608F-18NJ-MIND 18NH 0.35OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 350mOhm Max | 18 nH | 12 @ 100MHz | 2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
SRP3020TA-2R2MFIXED IND 2.2UH 3.5A 75 MOHM SMD |
14,242 | - |
|
数据表 |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 3.5 A | 3.7A | 2-SMD | Shielded | 75mOhm Max | 2.2 µH | 10 @ 100kHz | 45MHz | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
HCI1608F-56NJ-MIND 56NH 0.75OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 750mOhm Max | 56 nH | 12 @ 100MHz | 900MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
|
SRR1208-4R5MLFIXED IND 4.5UH 6.5A 14 MOHM SMD |
12,542 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | 10A | - | Shielded | 14mOhm Max | 4.5 µH | 24 @ 7.96MHz | 30MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
HCI1608F-82NJ-MIND 82NH 0.95OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 950mOhm Max | 82 nH | 12 @ 100MHz | 600MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
|
SRP3020TA-100MFIXED IND 10UH 1.4A 422 MOHM SMD |
9,218 | - |
|
数据表 |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 1.4 A | 1.6A | 2-SMD | Shielded | 422mOhm Max | 10 µH | 10 @ 100kHz | 20MHz | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
HCI1608F-12NJ-MIND 12NH 0.28OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 280mOhm Max | 12 nH | 12 @ 100MHz | 2.6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
|
HCI1608F-R15J-MIND 150NH 1.2OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 1.2Ohm Max | 150 nH | 8 @ 50MHz | 500MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 50 MHz | 0.037" (0.95mm) | |
|
|
HCI1608F-27NJ-MIND 27NH 0.45OHM 300MA |
0 | - |
|
数据表 |
HCI1608F | 0603 (1608 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0603 | Unshielded | 450mOhm Max | 27 nH | 12 @ 100MHz | 1.4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 100 MHz | 0.037" (0.95mm) | |
|
|
TJ32UTG271LINDUCT WW SNGL COIL MISC |
165 | - |
|
数据表 |
TJ | Radial, Horizontal Cylinder (Open) | Tray | Active | Toroidal | - | ±15% | 1.4 A | - | Radial | Unshielded | 250mOhm | 270 µH | - | - | Through Hole | - | 0.661" Dia (16.80mm) | - | -55°C ~ 125°C | 10 kHz | 0.319" (8.10mm) |
|
|
SRR1208-332KLFIXED IND 3.3MH 320MA 6.4OHM SMD |
8,630 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 350mA | - | Shielded | 6.4Ohm Max | 3.3 mH | 20 @ 252kHz | 500kHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
CSM2214-470MSMD HIGH CURRENT POWER INDUCTOR |
142 | - |
|
数据表 |
CSM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 12.8 A | 10A | 3-SMD | Shielded | 12.6mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.878" L x 0.846" W (22.30mm x 21.50mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|

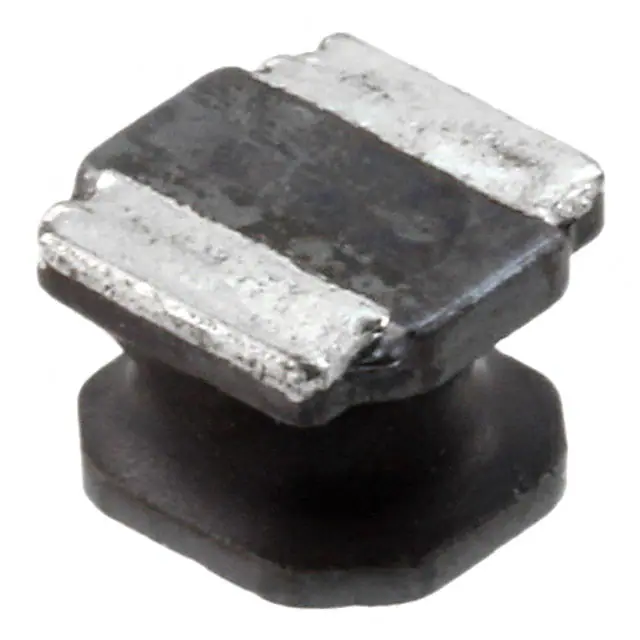

74404054221FIXED IND 220UH 500MA 1.4OHM SMD |
7,393 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 550mA | 5040 | Shielded | 1.4Ohm | 220 µH | - | 4.5MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSM2214-3R3MSMD HIGH CURRENT POWER INDUCTOR |
118 | - |
|
数据表 |
CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 36.5 A | 52A | 3-SMD | Shielded | 1.87mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.878" L x 0.846" W (22.30mm x 21.50mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
SRR1208-6R5MLFIXED IND 6.5UH 6A 18 MOHM SMD |
7,003 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6 A | 8.4A | - | Shielded | 18mOhm Max | 6.5 µH | 25 @ 7.96MHz | 20MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
CSM2214-330MSMD HIGH CURRENT POWER INDUCTOR |
113 | - |
|
数据表 |
CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 12.8 A | 13.5A | 3-SMD | Shielded | 12.6mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.878" L x 0.846" W (22.30mm x 21.50mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
B82111E0000C021FIXED IND 12UH 4A 40 MOHM TH |
6,832 | - |
|
数据表 |
B82111E | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | - | - | Unshielded | 40mOhm | 12 µH | - | 140MHz | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
