固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQP03TN2N6CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN0N9CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 750 mA | - | 0201 (0603 Metric) | Unshielded | 100mOhm Max | 0.9 nH | 14 @ 500MHz | 18GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N8CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 400 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 3.8 nH | 14 @ 500MHz | 6GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN0N6CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 850 mA | - | 0201 (0603 Metric) | Unshielded | 70mOhm Max | 0.6 nH | 14 @ 500MHz | 20GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN27NJZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±5% | 140 mA | - | 0201 (0603 Metric) | Unshielded | 2.3Ohm Max | 27 nH | 12 @ 500MHz | 2GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN12NJZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±5% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 700mOhm Max | 12 nH | 12 @ 500MHz | 2.9GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN2N3CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.3 nH | 14 @ 500MHz | 10GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N6CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 400 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 3.6 nH | 14 @ 500MHz | 6GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN0N8CZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.2nH | 800 mA | - | 0201 (0603 Metric) | Unshielded | 80mOhm Max | 0.8 nH | 14 @ 500MHz | 18GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
MCQ1V2012-R068-RFIXED IND 68NH 300MA 200MOHM SMD |
0 | - |
|
数据表 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 300 mA | - | 0805 | Unshielded | 200mOhm Max | 68 nH | 25 @ 50MHz | 280MHz | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 85°C | 50 MHz | 0.043" (1.10mm) |
|
AIMC-0402HQ-5N6B-TFIXED IND 5.6NH 0.6A 130 MOHM |
9,149 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0402 | Shielded | 130mOhm Max | 5.6 nH | 20 @ 250MHz | 5.5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
XAL1580-202MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,849 | - |
|
数据表 |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 29.5 A | 51A | - | Shielded | 2.29mOhm Max | 2 µH | - | 20.1MHz | Surface Mount | AEC-Q200 | 0.638" L x 0.598" W (16.20mm x 15.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.315" (8.00mm) |
|
|
AIMC-0402HQ-7N5G-TFIXED IND 7.5NH 0.55A 160 MOHM |
8,925 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 550 mA | - | 0402 | Shielded | 160mOhm Max | 7.5 nH | 22 @ 250MHz | 5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-15NG-TFIXED IND 15NH 0.43A 220 MOHM |
8,722 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 430 mA | - | 0402 | Shielded | 220mOhm Max | 15 nH | 22 @ 250MHz | 4GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AIMC-Q0402-1N0B-TIND 1NH 1A 80MOHM |
8,490 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 1 A | - | 0402 (1005 Metric) | Unshielded | 80mOhm Max | 1 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
.jpg)
|
MLF1608DR10JT000FIXED IND 100NH 200MA 350MOHM SM |
6,950 | - |
|
数据表 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±5% | 200 mA | - | 0603 (1608 Metric) | Shielded | 350mOhm Max | 100 nH | 15 @ 25MHz | 450MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 25 MHz | 0.037" (0.95mm) |
|

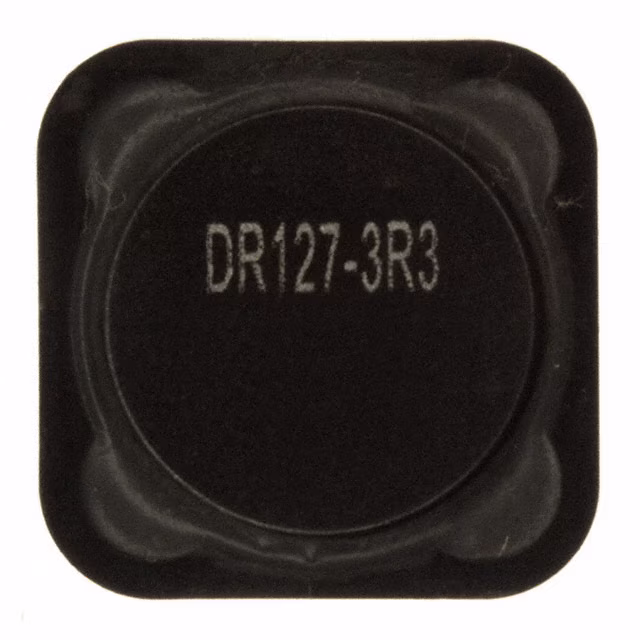

DR127-3R3-RFIXED IND 3.3UH 10.5A 5.67 MOHM |
2,270 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10.5 A | 21.5A | - | Shielded | 5.67mOhm | 3.3 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
74404024068FIXED IND 6.8UH 850MA 300MOHM SM |
2,252 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 1A | 2520 | Shielded | 300mOhm | 6.8 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
74404032470FIXED IND 47UH 400MA 1.05OHM SMD |
2,176 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 410mA | 3015 | Shielded | 1.05Ohm | 47 µH | - | 15MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
B82442T1472K000FIXED IND 4.7UH 1.95A 73MOHM SMD |
2,153 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.95 A | 4.3A | - | Unshielded | 73mOhm Max | 4.7 µH | 15 @ 7.96MHz | 30MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.209" (5.30mm) |
