固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1005S43NHT000FIXED IND 43NH 250MA 1.1 OHM SMD |
14,960 | - |
|
数据表 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±3% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 1.1Ohm Max | 43 nH | 8 @ 100MHz | 1.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
MLG1005S6N2HT000FIXED IND 6.2NH 600MA 250MOHM SM |
12,695 | - |
|
数据表 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±3% | 600 mA | - | 0402 (1005 Metric) | Unshielded | 250mOhm Max | 6.2 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
MLG1005S18NHT000FIXED IND 18NH 350MA 600MOHM SMD |
10,400 | - |
|
数据表 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±3% | 350 mA | - | 0402 (1005 Metric) | Unshielded | 600mOhm Max | 18 nH | 8 @ 100MHz | 2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
AIMC-0402HQ-2N4B-TFIXED IND 2.4NH 0.8A 70 MOHM |
10,000 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0402 | Shielded | 70mOhm Max | 2.4 nH | 20 @ 250MHz | 6GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AIMC-Q0402-2N2B-TIND 2.2NH 0.9A 130MOHM |
10,000 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm Max | 2.2 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
AIMC-Q0402-2N7B-TIND 2.7NH 0.8A 160MOHM |
10,000 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0402 (1005 Metric) | Unshielded | 160mOhm Max | 2.7 nH | 8 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
AIMC-Q0402-1N8B-TIND 1.8NH 0.9A 120MOHM |
9,985 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 1.8 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
PCMB053T-1R2MSFIXED IND 1.2UH 6.5A 16 MOHM SMD |
5,692 | - |
|
数据表 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 6.5 A | 11A | - | Unshielded | 16mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | - | - | 100 kHz | 0.110" (2.80mm) |
|

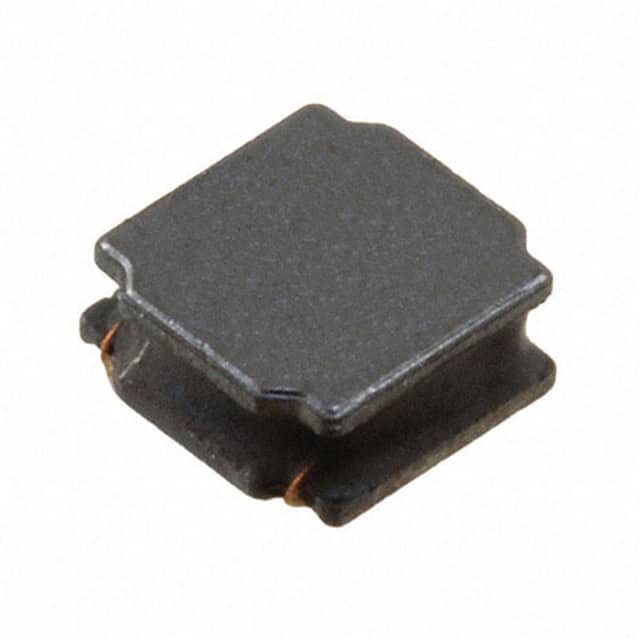

74404042100FIXED IND 10UH 1.2A 150 MOHM SMD |
5,631 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.7A | 4018 | Shielded | 150mOhm | 10 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
74404042010FIXED IND 1UH 3.2A 27 MOHM SMD |
5,088 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 4.8A | 4018 | Shielded | 27mOhm | 1 µH | - | 120MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
74404032220FIXED IND 22UH 600MA 450MOHM SMD |
4,961 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 600mA | 3015 | Shielded | 450mOhm | 22 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
74404024047FIXED IND 4.7UH 1.12A 175MOHM SM |
4,829 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.12 A | 1.2A | 2520 | Shielded | 175mOhm | 4.7 µH | - | 52MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
74404042330FIXED IND 33UH 650MA 460MOHM SMD |
4,625 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | 900mA | 4018 | Shielded | 460mOhm | 33 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
74404032010FIXED IND 1UH 2.2A 33 MOHM SMD |
4,239 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 3A | 3015 | Shielded | 33mOhm | 1 µH | - | 138MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
CLF7045NIT-6R8N-DFIXED IND 6.8UH 3.1A 29MOHM SMD |
3,847 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.1 A | 3.1A | - | Shielded | 29mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.291" L x 0.276" W (7.40mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
AIMC-Q0402-5N6B-TIND 5.6NH 0.6A 230MOHM |
9,975 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0402 (1005 Metric) | Unshielded | 230mOhm Max | 5.6 nH | 8 @ 100MHz | 4.5GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
AIMC-Q0402-3N3B-TIND 3.3NH 0.8A 160MOHM |
9,970 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0402 (1005 Metric) | Unshielded | 160mOhm Max | 3.3 nH | 8 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
AIMC-0402HQ-9N1G-TFIXED IND 9.1NH 0.5A 180 MOHM |
9,959 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 500 mA | - | 0402 | Shielded | 180mOhm Max | 9.1 nH | 22 @ 250MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-12NG-TFIXED IND 12NH 0.5A 200 MOHM |
9,925 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 500 mA | - | 0402 | Shielded | 200mOhm Max | 12 nH | 22 @ 250MHz | 4GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AIMC-Q0402-1N5B-TIND 1.5NH 1A 100MOHM |
9,900 | - |
|
数据表 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 1 A | - | 0402 (1005 Metric) | Unshielded | 100mOhm Max | 1.5 nH | 8 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
