场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFA50N20X3MOSFET N-CH 200V 50A TO263 Littelfuse Inc. |
8,548 | - |
|
数据表 |
HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 30mOhm @ 25A, 10V | Surface Mount | 4.5V @ 1mA | 33 nC @ 10 V | 200 V | ±20V | 2100 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 240W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA86N20T-TRLMOSFET N-CH 200V 86A TO263 Littelfuse Inc. |
3,916 | - |
|
数据表 |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 86A (Tc) | 10V | 33mOhm @ 43A, 10V | Surface Mount | 5V @ 1mA | 90 nC @ 10 V | 200 V | ±20V | 4500 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 550W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTA76N25T-TRLMOSFET N-CH 250V 76A TO263 Littelfuse Inc. |
9,867 | - |
|
数据表 |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 76A (Tc) | 10V | 39mOhm @ 38A, 10V | Surface Mount | 5V @ 1mA | 92 nC @ 10 V | 250 V | ±30V | 4500 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA20N65X2MOSFET N-CH 650V 20A TO263 Littelfuse Inc. |
4,631 | - |
|
数据表 |
Ultra X2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 185mOhm @ 10A, 10V | Surface Mount | 4.5V @ 250µA | 27 nC @ 10 V | 650 V | ±30V | 1450 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 290W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFQ8N85XMOSFET N-CH 850V 8A TO3P Littelfuse Inc. |
3,246 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 10V | 850mOhm @ 4A, 10V | Through Hole | 5.5V @ 250µA | 17 nC @ 10 V | 850 V | ±30V | 654 pF @ 25 V | - | - | TO-3P | - | 200W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFH18N65X3DISCRETE MOSFET 18A 650V X3 TO24 Littelfuse Inc. |
5,949 | - |
|
数据表 |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.jpg)
|
IXTH3N100PMOSFET N-CH 1000V 3A TO247 Littelfuse Inc. |
2,889 | - |
|
数据表 |
Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 3A (Tc) | 10V | 4.8Ohm @ 1.5A, 10V | Through Hole | 4.5V @ 250µA | 39 nC @ 10 V | 1000 V | ±20V | 1100 pF @ 25 V | - | - | TO-247 (IXTH) | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|

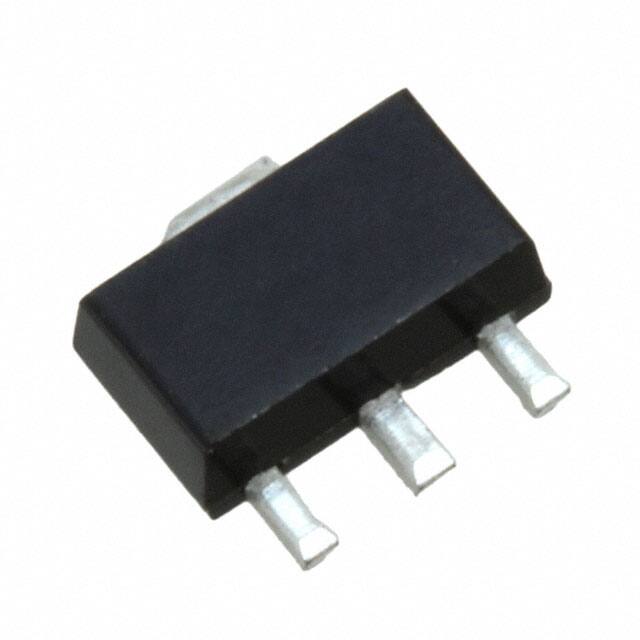

CPC3708CTRMOSFET N-CH 350V 5MA SOT89 Littelfuse Inc. |
3,806 | - |
|
数据表 |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 5mA (Ta) | 0.35V | 14Ohm @ 50mA, 350mV | Surface Mount | - | - | 350 V | ±20V | 300 pF @ 0 V | - | - | SOT-89 | - | 1.1W (Ta) | -40°C ~ 110°C (TA) |
|
|
IXTA3N100D2HV-TRLMOSFET N-CH 1000V 3A TO263HV Littelfuse Inc. |
2,499 | - |
|
数据表 |
Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 3A (Tj) | 0V | 6Ohm @ 1.5A, 0V | Surface Mount | 4.5V @ 250µA | 37.5 nC @ 5 V | 1000 V | ±20V | 1020 pF @ 25 V | - | - | TO-263HV | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA180N10T7-TRLMOSFET N-CH 100V 180A TO263-7 Littelfuse Inc. |
2,434 | - |
|
数据表 |
Trench | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 180A (Tc) | 10V | 6.4mOhm @ 25A, 10V | Surface Mount | 4.5V @ 250µA | 151 nC @ 10 V | 100 V | ±30V | 6900 pF @ 25 V | - | - | TO-263-7 (IXTA) | - | 480W (Tc) | -55°C ~ 175°C (TJ) |
