场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFN44N80PMOSFET N-CH 800V 39A SOT-227B Littelfuse Inc. |
244 | - |
|
数据表 |
HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 39A (Tc) | 10V | 190mOhm @ 500mA, 10V | Chassis Mount | 5V @ 8mA | 200 nC @ 10 V | 800 V | ±30V | 12000 pF @ 25 V | - | - | SOT-227B | - | 694W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXFX32N100PMOSFET N-CH 1000V 32A PLUS247-3 Littelfuse Inc. |
328 | - |
|
数据表 |
HiPerFET™, Polar | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 32A (Tc) | 10V | 320mOhm @ 16A, 10V | Through Hole | 6.5V @ 1mA | 225 nC @ 10 V | 1000 V | ±30V | 14200 pF @ 25 V | - | - | PLUS247™-3 | - | 960W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTT16N50D2MOSFET N-CH 500V 16A TO268 Littelfuse Inc. |
595 | - |
|
数据表 |
Depletion | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 16A (Tc) | 0V | 240mOhm @ 8A, 0V | Surface Mount | - | 199 nC @ 5 V | 500 V | ±20V | 5250 pF @ 25 V | - | - | TO-268AA | - | 695W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFK120N65X2MOSFET N-CH 650V 120A TO264 Littelfuse Inc. |
285 | - |
|
数据表 |
HiPerFET™, Ultra X2 | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | Through Hole | 5.5V @ 8mA | 225 nC @ 10 V | 650 V | ±30V | 15500 pF @ 25 V | - | - | TO-264AA | - | 1250W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFN220N20X3MOSFET N-CH 200V 160A SOT227B Littelfuse Inc. |
280 | - |
|
数据表 |
HiPerFET™, Ultra X3 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 160A (Tc) | 10V | 6.2mOhm @ 110A, 10V | Chassis Mount | 4.5V @ 4mA | 204 nC @ 10 V | 200 V | ±20V | 13600 pF @ 25 V | - | - | SOT-227B | - | 390W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTN90P20PMOSFET P-CH 200V 90A SOT227B Littelfuse Inc. |
279 | - |
|
数据表 |
PolarP™ | SOT-227-4, miniBLOC | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 10V | 44mOhm @ 500mA, 10V | Chassis Mount | 4V @ 1mA | 205 nC @ 10 V | 200 V | ±20V | 12000 pF @ 25 V | - | - | SOT-227B | - | 890W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFK24N100Q3MOSFET N-CH 1000V 24A TO264AA Littelfuse Inc. |
1,810 | - |
|
数据表 |
HiPerFET™, Q3 Class | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 440mOhm @ 12A, 10V | Through Hole | 6.5V @ 4mA | 140 nC @ 10 V | 1000 V | ±30V | 7200 pF @ 25 V | - | - | TO-264AA (IXFK) | - | 1000W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTX120P20TMOSFET P-CH 200V 120A PLUS247-3 Littelfuse Inc. |
164 | - |
|
数据表 |
TrenchP™ | TO-247-3 Variant | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 120A (Tc) | - | 30mOhm @ 60A, 10V | Through Hole | 4.5V @ 250µA | 740 nC @ 10 V | 200 V | - | 73000 pF @ 25 V | - | - | PLUS247™-3 | - | - | - |
|
|
IXFN100N65X2MOSFET N-CH 650V 78A SOT227B Littelfuse Inc. |
298 | - |
|
数据表 |
HiPerFET™, Ultra X2 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 78A (Tc) | 10V | 30mOhm @ 50A, 10V | Chassis Mount | 5V @ 4mA | 183 nC @ 10 V | 650 V | ±30V | 10800 pF @ 25 V | - | - | SOT-227B | - | 595W (Tc) | -55°C ~ 150°C (TJ) |
|

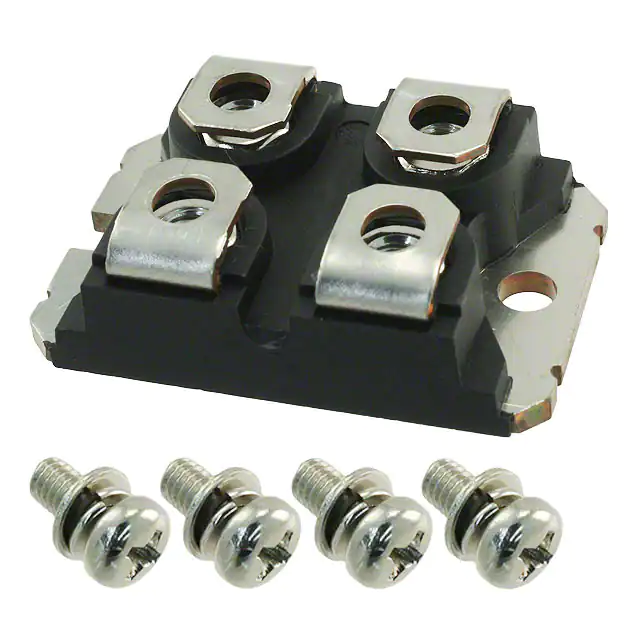

IXTN102N65X2MOSFET N-CH 650V 76A SOT227 Littelfuse Inc. |
327 | - |
|
数据表 |
Ultra X2 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 76A (Tc) | 10V | 30mOhm @ 51A, 10V | Chassis Mount | 5V @ 250µA | 152 nC @ 10 V | 650 V | ±30V | 10900 pF @ 25 V | - | - | SOT-227 | - | 595AW (Tc) | -55°C ~ 150°C (TJ) |
