场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP20N60X3DISCRETE MOSFET 20A 600V X3 TO22 Littelfuse Inc. |
7,325 | - |
|
数据表 |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXFH180N20X3MOSFET N-CH 200V 180A TO247 Littelfuse Inc. |
542 | - |
|
数据表 |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 180A (Tc) | 10V | 7.5mOhm @ 90A, 10V | Through Hole | 4.5V @ 4mA | 154 nC @ 10 V | 200 V | ±20V | 10300 pF @ 25 V | - | - | TO-247 (IXTH) | - | 780W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTK150N15PMOSFET N-CH 150V 150A TO264 Littelfuse Inc. |
305 | - |
|
数据表 |
Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | Through Hole | 5V @ 250µA | 190 nC @ 10 V | 150 V | ±20V | 5800 pF @ 25 V | - | - | TO-264 (IXTK) | - | 714W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFH50N85XMOSFET N-CH 850V 50A TO247 Littelfuse Inc. |
1,058 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 105mOhm @ 500mA, 10V | Through Hole | 5.5V @ 4mA | 152 nC @ 10 V | 850 V | ±30V | 4480 pF @ 25 V | - | - | TO-247 (IXTH) | - | 890W (Tc) | -55°C ~ 150°C (TJ) |
|

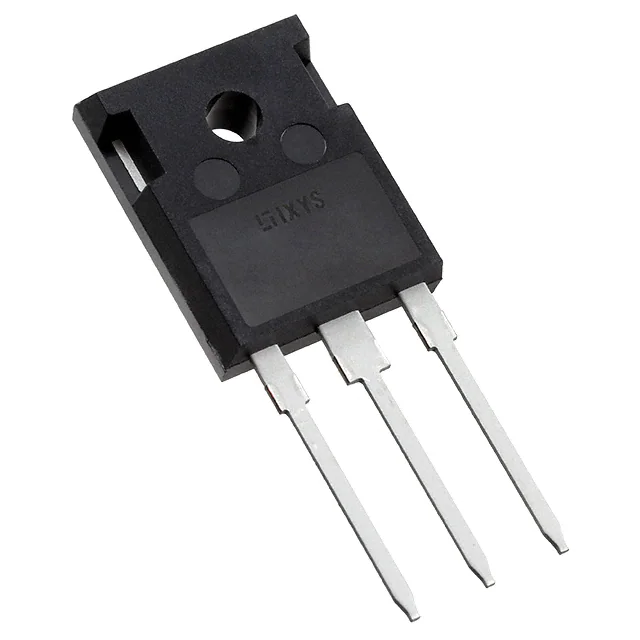

IXFH120N25X3MOSFET N-CH 250V 120A TO247 Littelfuse Inc. |
165 | - |
|
数据表 |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | Through Hole | 4.5V @ 4mA | 122 nC @ 10 V | 250 V | ±20V | 7870 pF @ 25 V | - | - | TO-247 (IXTH) | - | 520W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXFX360N10TMOSFET N-CH 100V 360A PLUS247-3 Littelfuse Inc. |
298 | - |
|
数据表 |
HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 360A (Tc) | 10V | 2.9mOhm @ 100A, 10V | Through Hole | 5V @ 3mA | 525 nC @ 10 V | 100 V | ±20V | 33000 pF @ 25 V | - | - | PLUS247™-3 | - | 1250W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTA86N20X4MOSFET 200V 86A N-CH ULTRA TO263 Littelfuse Inc. |
597 | - |
|
数据表 |
Ultra X4 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 86A (Tc) | 10V | 13mOhm @ 43A, 10V | Surface Mount | 4.5V @ 250µA | 70 nC @ 10 V | 200 V | ±20V | 2250 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFH40N85XMOSFET N-CH 850V 40A TO247 Littelfuse Inc. |
368 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 10V | 145mOhm @ 500mA, 10V | Through Hole | 5.5V @ 4mA | 98 nC @ 10 V | 850 V | ±30V | 3700 pF @ 25 V | - | - | TO-247 | - | 860W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFX520N075T2MOSFET N-CH 75V 520A PLUS247-3 Littelfuse Inc. |
310 | - |
|
数据表 |
HiPerFET™, TrenchT2™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 520A (Tc) | 10V | 2.2mOhm @ 100A, 10V | Through Hole | 5V @ 8mA | 545 nC @ 10 V | 75 V | ±20V | 41000 pF @ 25 V | - | - | PLUS247™-3 | - | 1250W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFK520N075T2MOSFET N-CH 75V 520A TO264AA Littelfuse Inc. |
315 | - |
|
数据表 |
HiPerFET™, TrenchT2™ | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 520A (Tc) | 10V | 2.2mOhm @ 100A, 10V | Through Hole | 5V @ 8mA | 545 nC @ 10 V | 75 V | ±20V | 41000 pF @ 25 V | - | - | TO-264AA (IXFK) | - | 1250W (Tc) | -55°C ~ 175°C (TJ) |
