场效应晶体管（FET）、MOSFET 阵列
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 配置 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | FET 特性 | 输入电容 (Ciss)（最大值）@ Vds | 功率 - 最大值 | 供应商设备封装 | 工作温度 | 安装类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120DUM31TBL1NGMOSFET 2N-CH 1200V 79A |
3,193 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120AM31TBL1NGMOSFET 2N-CH 1200V 79A |
2,052 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120HM50T3AGMOSFET 4N-CH 1200V 55A |
6,679 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 55A (Tc) | 50mOhm @ 40A, 20V | 2.7V @ 2mA | 137nC @ 20V | - | 1990pF @ 1000V | 245W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120VR1M31C1AGMOSFET 2N-CH 1200V 89A |
9,240 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 395W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120DUM31CTBL1NGMOSFET 2N-CH 1200V 79A |
8,165 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120AM31CTBL1NGMOSFET 2N-CH 1200V 79A |
3,104 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120AM16T1AGMOSFET 2N-CH 1200V 173A |
5,028 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 6mA | 464nC @ 20V | - | 6040pF @ 1000V | 745W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120DHM31CTBL2NGMOSFET 2N-CH 1200V 79A |
5,827 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Asymmetrical | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MCB40P1200LB-TUBMOSFET 2N-CH 1200V 58A SMPD |
4,053 | - |
|
数据表 |
- | 9-SMD Power Module | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 1200V (1.2kV) | 58A | - | - | - | - | - | - | SMPD | - | Surface Mount | - | - |
|
|
MSCSM120HM31T3AGMOSFET 4N-CH 1200V 89A |
8,784 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 395W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120HM31TBL2NGMOSFET 4N-CH 1200V 79A |
5,760 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120DDUM31TBL2NGMOSFET 4N-CH 1200V 79A |
8,448 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel, Common Source | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
DF419MR20W3M1HFB11BPSA1MOSFET 4N-CH 2000V 50A AG-EASY3B |
1 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | MOSFET (Metal Oxide) | 4 N-Channel | 2000V (2kV) | 50A (Tj) | 26.5mOhm @ 60A, 18V | 5.15V @ 34mA | 234nC @ 18V | - | 7240pF @ 1.2kV | - | AG-EASY3B | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120VR1M16CT3AGMOSFET 2N-CH 1200V 173A |
6,962 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 6mA | 464nC @ 20V | - | 6040pF @ 1000V | 745W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120HM31CTBL2NGMOSFET 4N-CH 1200V 79A |
7,468 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120DDUM31CTBL2NGMOSFET 4N-CH 1200V 79A |
6,453 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel, Common Source | 1200V (1.2kV) | 79A | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | - | 3020pF @ 1000V | 310W | - | -55°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120TAM31T3AGMOSFET 6N-CH 1200V 89A |
7,863 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 3mA | 232nC @ 20V | - | 3020pF @ 1000V | 395W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120AM11T3AGMOSFET 2N-CH 1200V 254A |
9,957 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 254A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 9mA | 696nC @ 20V | - | 9060pF @ 1000V | 1.067kW (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|

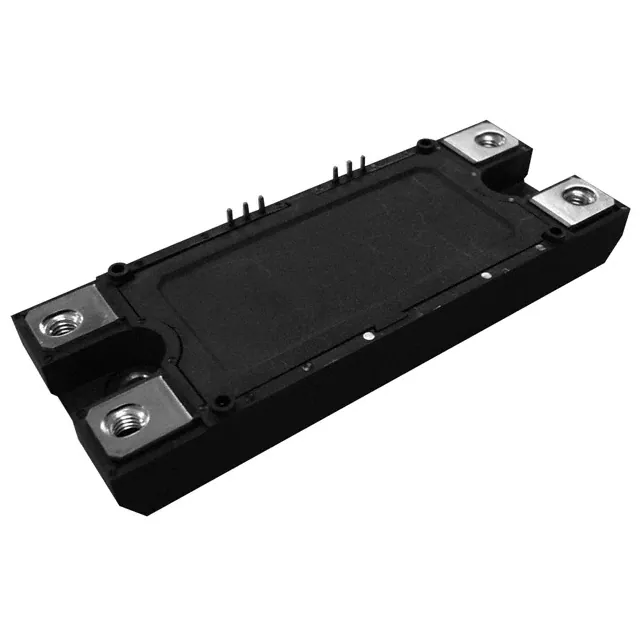

BSM180D12P2C101MOSFET 2N-CH 1200V 204A MODULE |
1 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | 1200V (1.2kV) | 204A (Tc) | - | 4V @ 35.2mA | - | - | 23000pF @ 10V | 1130W | Module | -40°C ~ 150°C (TJ) | - | - | - |
|
|
MSCSM120HM16T3AGMOSFET 4N-CH 1200V 173A |
8,197 | - |
|
数据表 |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 6mA | 464nC @ 20V | - | 6040pF @ 1000V | 745W (Tc) | - | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
