直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5149HQ/EG75050S1-C050-S9ADC BLOWER 84X77X7MM TACH/PWM |
98 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 83.6mm L x 76.9mm H | 4.9 CFM (0.137m³/min) | 0.600 in H2O (149.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 6.80mm | 36.5dB(A) | 2.25 W | cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
CHA4012BH-10B12V 0.10A 40*10 BALL 2; 9.35CFM |
36 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHA6012BH-25C12V 0.09A 60*25 BALL 2; 23.00CFM |
26 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5147HQ/EG75071S1-C110-S9ADC BLOWER 78X85X10.5MM TACH/PWM |
85 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5153HQ/EG50061S1-1C050-S9ADC BLOWER 93X95X7.5MM TACH/PWM |
80 | - |
|
数据表 |
EG | Box | Active | 12VDC | Rectangular/Rounded - 95mm L x 93mm H | 10.6 CFM (0.297m³/min) | 0.890 in H2O (221.7 Pa) | Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.50mm | 41.9dB(A) | 4.8 W | CE, CSA, TUV, UR | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
5144HQ/VF40281BX-Q228-S9HDC FAN 40X28MM TACH/PWM |
95 | - |
|
数据表 |
- | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 36.7 CFM (1.03m³/min) | 4.680 in H2O (1165.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Polarity Protection | 28.00mm | 68.1dB(A) | 25.2 W | CUR, TUV, UL | 27000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
08015SS-12M-AA-00FAN AXIAL 80X15MM 12VDC WIRE |
53 | - |
|
数据表 |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 15.00mm | 31.0dB(A) | 1.8 W | - | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-4007C-165-295-20DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
78 | - |
|
数据表 |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | - | 7.00mm | 29.5dB(A) | 1.68 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
5143HQ/PMD2406PTBX-A.(2).U.BDC FAN 60X25MM |
46 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFB0524VHD-R00FAN AXIAL 50X20MM 24VDC WIRE |
61 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 40.5dB(A) | 2.4 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SA-24K-AA-D0FAN AXIAL 80X25MM 24VDC WIRE |
69 | - |
|
数据表 |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 19.0dB | 720 mW | - | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

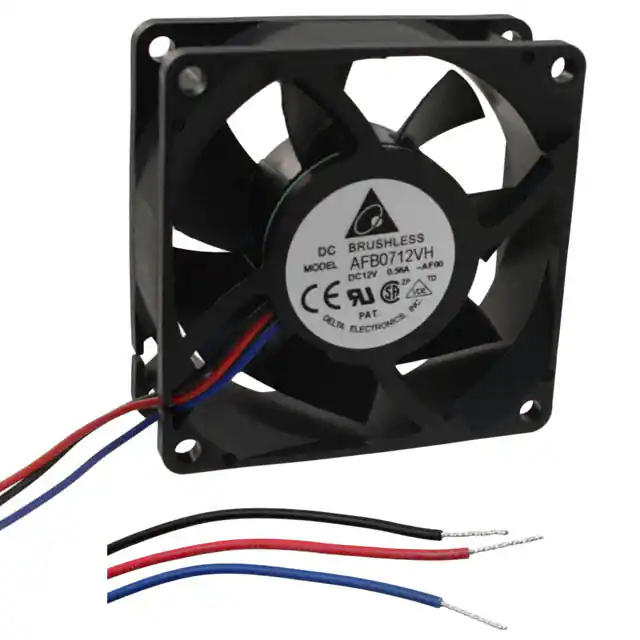

AFB0712VH-AF00FAN AXIAL 70X25.4MM 12VDC WIRE |
57 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 52.0 CFM (1.46m³/min) | 0.433 in H2O (107.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 47.5dB(A) | 5.28 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-12N-ET-D0FAN AXIAL 92X25MM 12VDC WIRE |
55 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 32.0dB | 1.92 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0824S4011FAN AXIAL 80X25MM 24VDC WIRE |
80 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.4 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
CHT8012BX-W25B12V 0.37A 80*25 BALL 4; 46.46CFM |
18 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4260HQ/UF3H3-719DC FAN 17X3MM |
43 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F8025H24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
58 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
CBM-7525B-125-301-20DC BLOWER, 75.2 X 74.2 X 25 MM, |
95 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.1dB(A) | 1.2 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0612G4D011FAN AXIAL 60X25MM 12VDC WIRE |
10 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

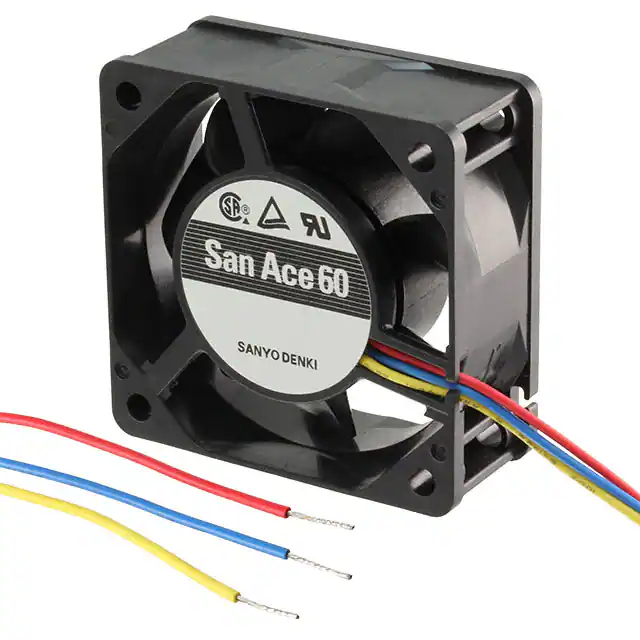

109R0624G4011FAN AXIAL 60X25MM 24VDC WIRE |
80 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.12 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
