直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

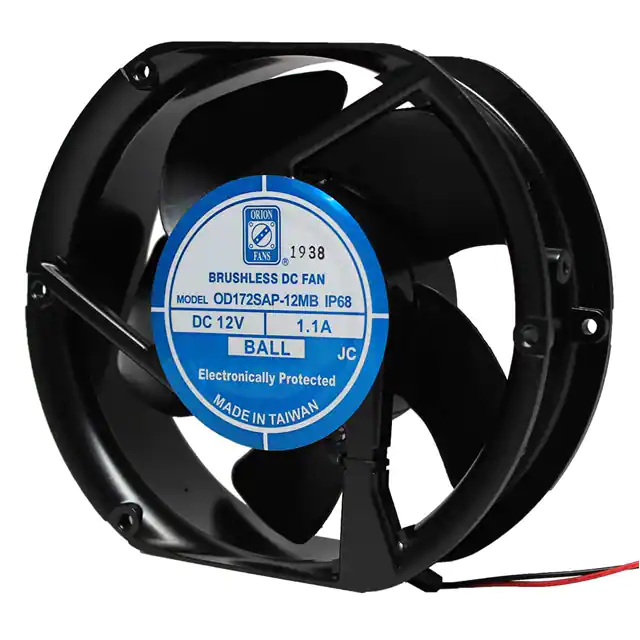

OD172SAP-48HBIP68FAN AXIAL 172X51MM 48VDC WIRE |
13 | - |
|
数据表 |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart | 51.00mm | 52.0dB | 23.5 W | cURus, TUV | 3300 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9W2TM48P4H001FAN IMP MTRZD 100X25MM 48VDC |
20 | - |
|
数据表 |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 60.0dB(A) | 10.56 W | - | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

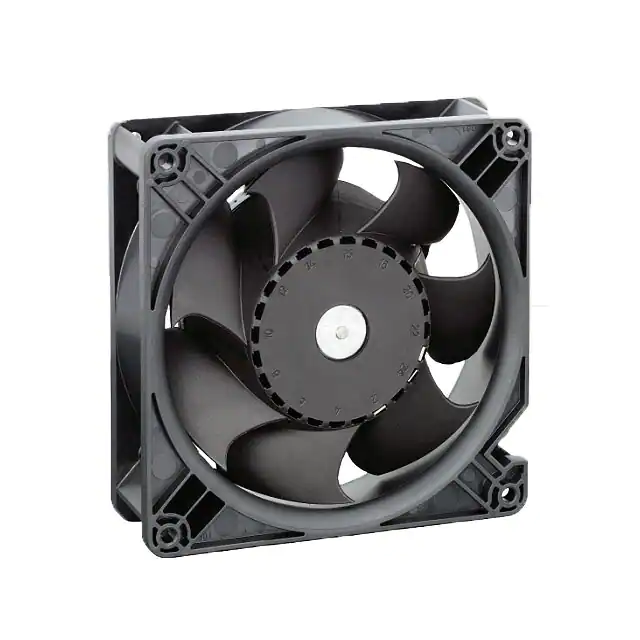

DV5218NFAN AXIAL 127X38MM 48VDC WIRE |
18 | - |
|
数据表 |
DV5200 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 158.9 CFM (4.45m³/min) | - | Ball | 0.915 lb (415.04 g) | Tubeaxial | - | 38.00mm | 56.0dB(A) | 19 W | CE, CSA, UL, VDE | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
9LG1412L1002FAN AXIAL 140X38MM 12VDC WIRE |
6 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 3.3 W | CSA, TUV, UL | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG1424M1001FAN AXIAL 140X38MM 24VDC WIRE |
23 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9CRE0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
7 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | 76.0dB(A) | 63.6 W | cURus, TUV | 12000 Front, 11300 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
9LG1448M1001FAN AXIAL 140X38MM 48VDC WIRE |
14 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412M5002FAN AXIAL 140X51MM 12VDC WIRE |
12 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | - | 5.16 W | cURus, TUV | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

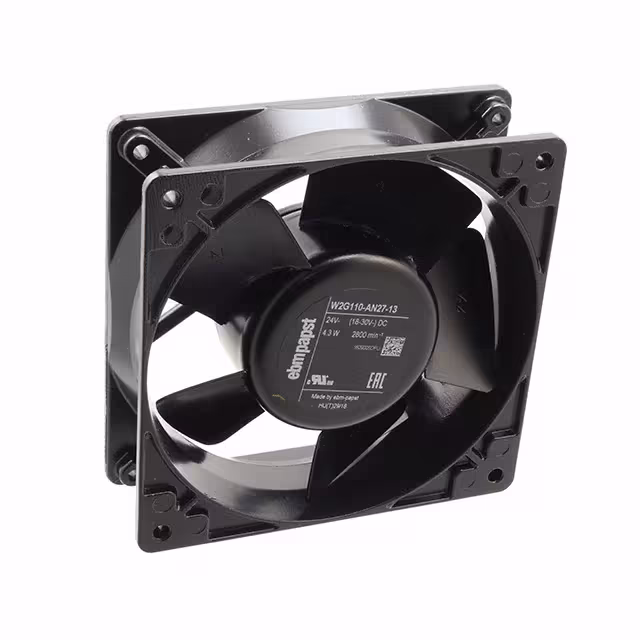

W2G110-AN27-13FAN AXIAL 119X38MM 24VDC TERM |
2 | - |
|
数据表 |
W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Thermal Overload Protector (TOP) | 38.00mm | - | 4.3 W | EAC, UL | 2800 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Terminals | IP22 |
|
|
9LG1424M5001FAN AXIAL 140X51MM 24VDC WIRE |
2 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 5.52 W | cURus, TUV | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
FDD1-17251CBHW32FAN AXIAL 172X51MM 12VDC WIRE |
10 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 64.0dB(A) | 44.8 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG1448A5002FAN AXIAL 140X51MM 48VDC WIRE |
19 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | - | 31.7 W | cURus, TUV | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG1448A5D001FAN AXIAL 140X51MM 48VDC WIRE |
23 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | 31.7 W | cURus, TUV | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1448M5001FAN AXIAL 140X51MM 48VDC WIRE |
23 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 7.2 W | cURus, TUV | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1448H5D001FAN AXIAL 140X51MM 48VDC WIRE |
12 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | 14.9 W | cURus, TUV | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

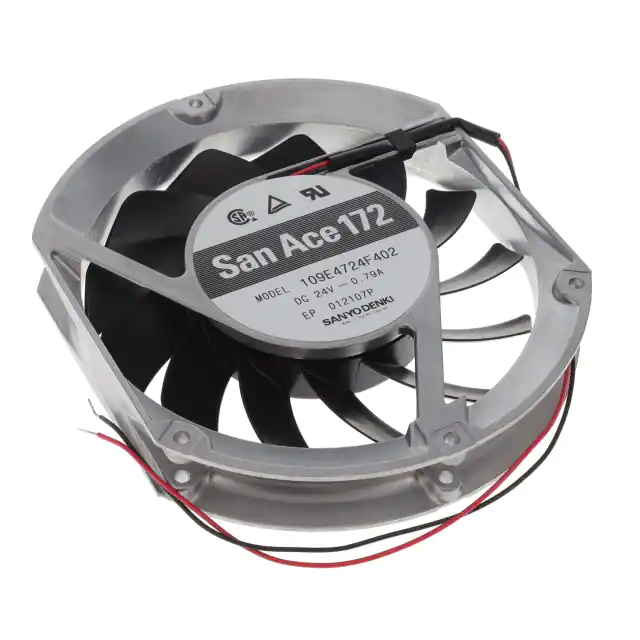

109E4724F402FAN AXIAL 172X25.4MM 24VDC WIRE |
21 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 54.0dB(A) | 19 W | CSA, TUV, UL | 3100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

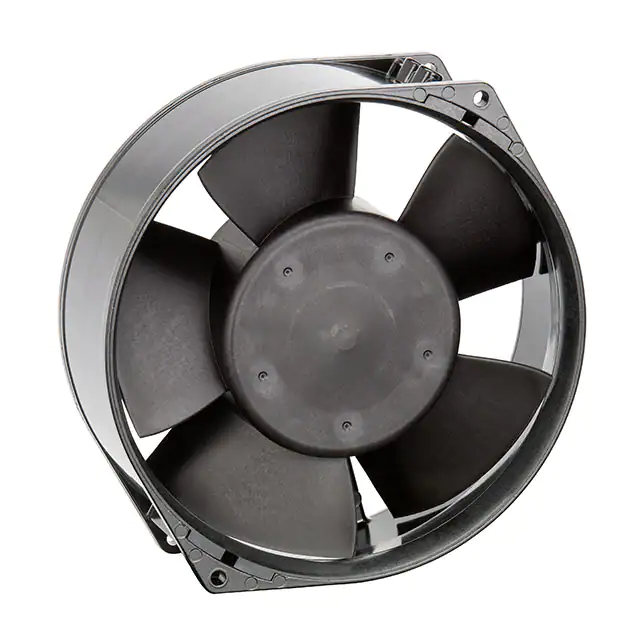

7214N/17FAN AXIAL 150X55MM 24VDC WIRE |
6 | - |
|
数据表 |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | 0.642 in H2O (159.9 Pa) | Ball | - | Tubeaxial | - | 55.00mm | 53.0dB(A) | 12 W | CE, CSA, EAC, UL, VDE | 3050 RPM | -13 ~ 162°F (-25 ~ 72°C) | 3 Wire Leads | - |
|
OD172SAP-48HHB10AFAN AXIAL 172X51MM 48VDC WIRE |
11 | - |
|
数据表 |
OD172S | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.00mm | 57.0dB | - | cURus, TUV | 3900 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|

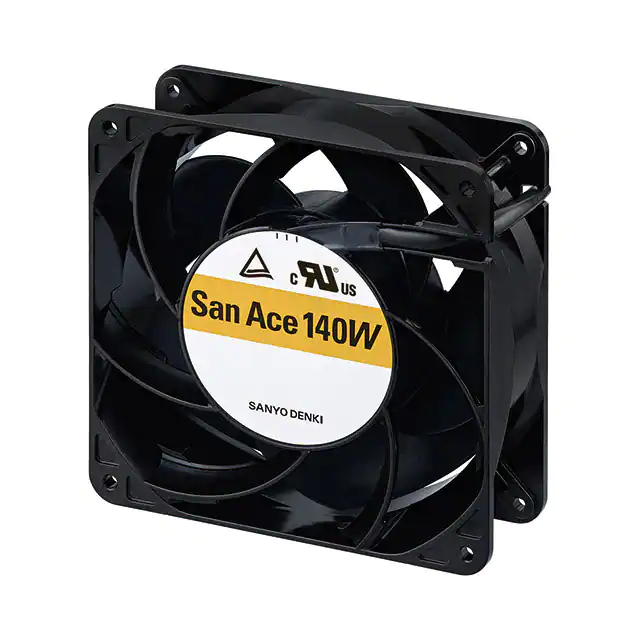

9WL1448P5G001FAN AXIAL 140X51MM 48VDC WIRE |
14 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 69.0dB(A) | 62 W | cURus, TUV | 7500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
TCA1748BT-00P8FAN IMP MTRZD 176.5X69MM 48VDC |
11 | - |
|
数据表 |
TCA | Box | Active | 48VDC | Round - 176.5mm Dia | 540.0 CFM (15.12m³/min) | 3.799 in H2O (946.3 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.00mm | 78.0dB(A) | 134.4 W | CE, cURus, TUV | 5400 RPM | -13 ~ 167°F (-25 ~ 75°C) | 4 Wire Leads | - |
