直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA1224H1001120X38MM 24VDC TACH |
5 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 37.0dB(A) | 3.1 W | cURus, TUV | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0912H1011FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 6.96 W | CSA, TUV, UL | 4000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9G0648P4S0011FAN AXIAL 60X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.223 in H2O (304.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.64 W | cURus, TUV | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
PFR0612EE-00AXIAL 60X38 12VDC PWM |
0 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 60mm L x 60mm H | 77.0 CFM (2.16m³/min) | 3.185 in H2O (793.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.7dB(A) | 27.6 W | CE, cURus, TUV, UKCA | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9BMB24G2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Sensor | 33.00mm | 61.0dB(A) | 19.9 W | cURus, TUV | 5750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0624P4S0011FAN AXIAL 60X25MM 24VDC WIRE |
2 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.16 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
GF80321B1-000U-AE9FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 0.24 lb (108.86 g) | Tubeaxial | Auto Restart | 32.00mm | 45.2dB(A) | 3.72 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PFR0912SE-00AXIAL 92X38 12VDC PWM |
0 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 145.0 CFM (4.06m³/min) | 3.724 in H2O (927.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 72.5dB(A) | 34.8 W | CE, cURus, TUV, UKCA | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9HVA0312P3G00138X28MM, DC 12V, HIGH STATIC PRE |
0 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 25.1 CFM (0.703m³/min) | 5.219 in H2O (1300.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 64.0dB(A) | 13.2 W | cURus, TUV | 30000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9HVA0312P3G001138X28MM, DC 12V, HIGH STATIC PRE |
0 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 25.1 CFM (0.703m³/min) | 5.219 in H2O (1300.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 64.0dB(A) | 13.2 W | cURus, TUV | 30000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
THB0648BEFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 68.6 CFM (1.92m³/min) | 2.886 in H2O (718.9 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 61.5dB(A) | 16.32 W | CE, cURus, TUV | 14700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9HVA0312P3K001138X28MM, DC 12V, HIGH STATIC PRE |
0 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 32.5 CFM (0.910m³/min) | 8.431 in H2O (2100.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 69.0dB(A) | 25.2 W | cURus, TUV | 38500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9HVA0312P3K00138X28MM, DC 12V, HIGH STATIC PRE |
0 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 32.5 CFM (0.910m³/min) | 8.431 in H2O (2100.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 69.0dB(A) | 25.2 W | cURus, TUV | 38500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0924J1001FAN AXIAL 92X38MM 24VDC TACH |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 14.9 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0848P1S61FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 12 W | CSA, TUV, UL | 9550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9CRV0412P5G20140X56MM 12VDC COUNTER ROTATING T |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.8 CFM (0.750m³/min) | 3.003 in H2O (748.0 Pa) | Ball | - | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 56.00mm | 62.0dB(A) | 13.2 W | cURus, TUV | 19000 Front, 16900 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|

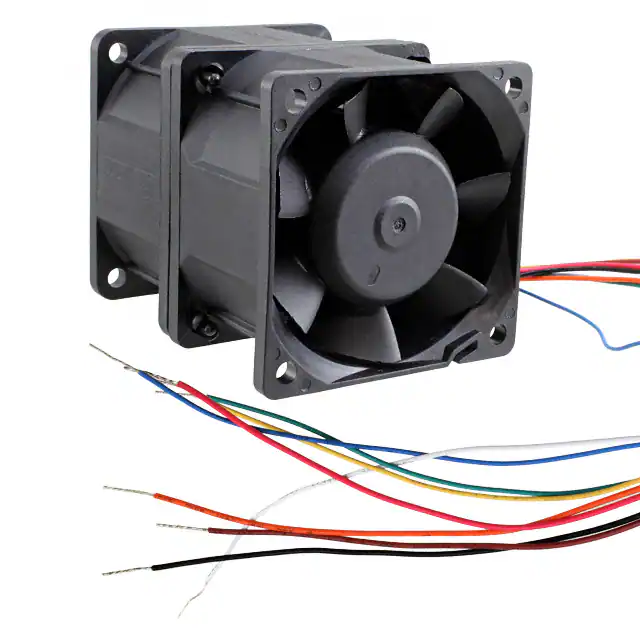

GFC0624DW-DT48FAN AXIAL DUAL 60X76MM 21VDC |
0 | - |
|
数据表 |
GFC | Box | Active | 21VDC | Square - 60mm L x 60mm H | 69.4 CFM (1.94m³/min) | 3.025 in H2O (753.5 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.00mm | 71.5dB(A) | 31.2 W | CE, cURus, TUV | 11300 Front, 12500 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|
109P1324H102FAN AXIAL 127X38MM 24VDC WIRE |
1 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
9RA1212E1001120X38MM 12VDC TACH |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 5.6 W | cURus, TUV | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
PFB0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
5 | - |
|
数据表 |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 18.6 W | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
