直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0612UHE-T50FFAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 61.5dB(A) | 16.8 W | CE, CSA, UL, VDE | 12000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
AFB0624HHD-F00FAN AXIAL 60X20MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.229 in H2O (57.0 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0624VHD-F00FAN AXIAL 60X20MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.275 in H2O (68.6 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 33.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

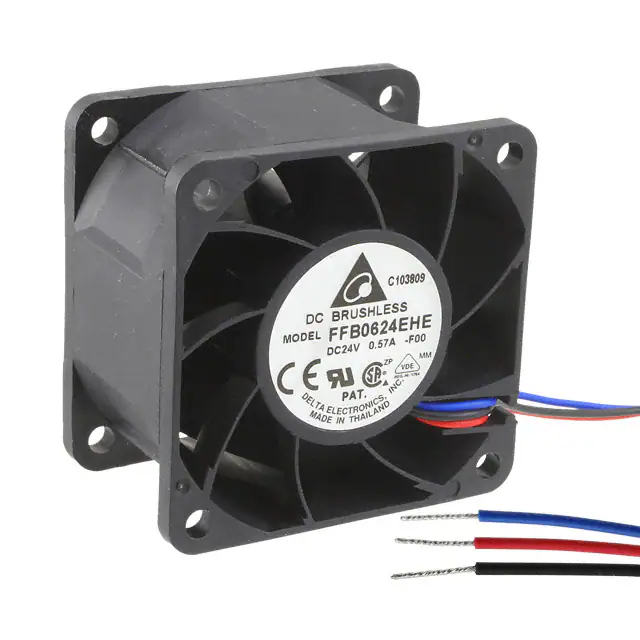

FFB0624EHE-F00FAN AXIAL 60X38MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 50.2 CFM (1.41m³/min) | 0.972 in H2O (242.1 Pa) | Ball | 0.234 lb (106.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.5dB(A) | 9.12 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
QFR0824SH-DT50FAN AXIAL 80X25.4MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
QFR | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 0.195 lb (88.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 41.2dB(A) | 4.08 W | CE, cURus, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFB0824DHE-DT49FAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 32.4 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
EFB0405VHD-R00FAN AXIAL 40X20MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 32.5dB(A) | 1.6 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0405MA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 21.5dB(A) | 250 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0412MA-AF00FAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 21.5dB(A) | 360 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0405LA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 16.0dB(A) | 150 mW | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
