直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GDA8025-24BBFAN AXIAL 80X25MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 30.8dB(A) | 3.6 W | - | 3000 RPM | - | 3 Wire Leads | - |
|

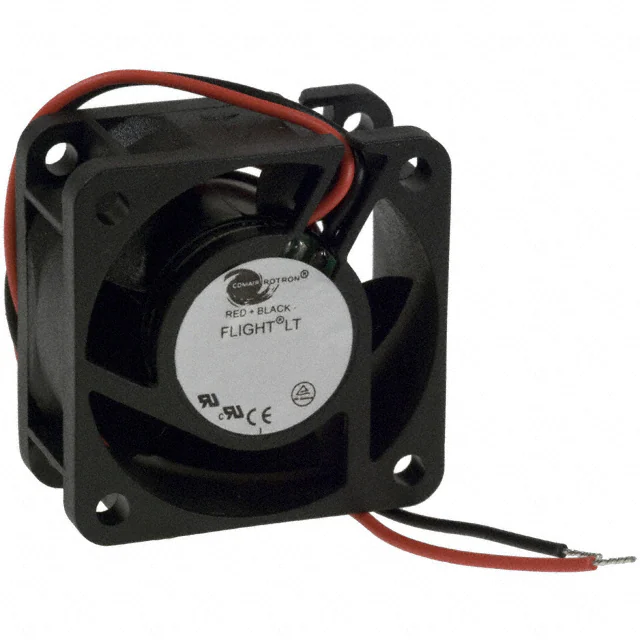

19032628AFAN AXIAL 40X20MM CR0424HB-C50 Comair Rotron |
0 | - |
|
数据表 |
Flight LT 40 | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.256 in H2O (63.8 Pa) | Ball | 0.075 lb (34.02 g) | Tubeaxial | - | 20.00mm | 31.9dB(A) | 2.2 W | CE, CUR, TUV, UL | 7800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

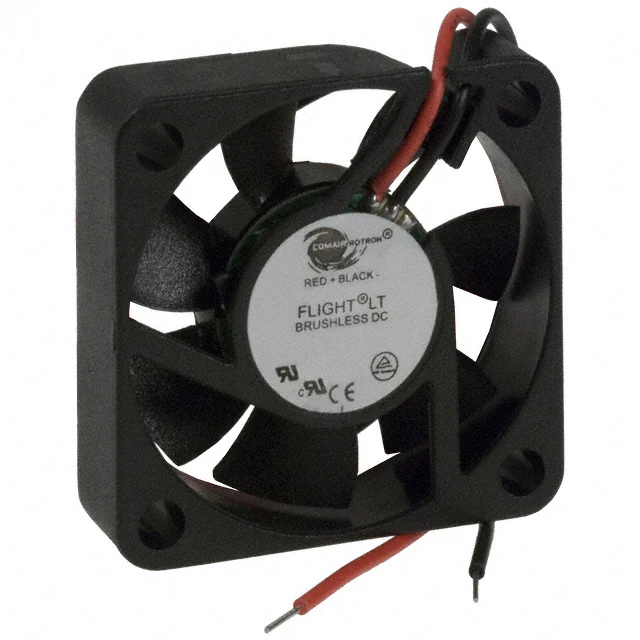

19032608AFAN AXIAL 40X10MM CR0412HB-G70 Comair Rotron |
0 | - |
|
数据表 |
Flight LT 40 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.8 CFM (0.190m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | - | 10.00mm | 25.0dB(A) | 1.2 W | CE, CUR, TUV, UL | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
19032622AFAN AXIAL 40X20MM CR0412HB-C50 Comair Rotron |
0 | - |
|
数据表 |
Flight LT 40 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.263 in H2O (65.6 Pa) | Ball | 0.075 lb (34.02 g) | Tubeaxial | - | 20.40mm | 31.9dB(A) | 1.2 W | CSA, TUV, UL | 7800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
17000171AFAN AXIAL 40X15MM CR0412HB-D51 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.32 W | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000172AFAN AXIAL 40X15MM CR0412MB-D51 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.6 CFM (0.213m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 31.8dB(A) | 1.08 W | CE, cUL, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000174AFAN AXIAL 24VDC CR0824LB-D90(T) Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.50mm | 36.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17000176AFAN AXIAL 40X15MM CR0412HB-D51 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.32 W | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000182AFAN 50X10.5 CR0505HB-G70(T) 5VDC Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 27.5dB(A) | 1.1 W | CE, cUL, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000190AFAN 50X10.5MM CR0512UB-G70(T) Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 32.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
