直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

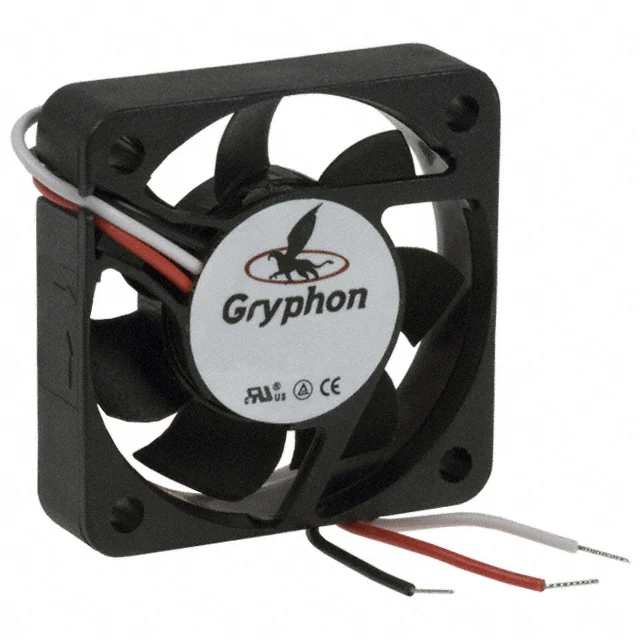

GDA4010-12BBFAN AXIAL 40X10MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.035 lb (15.88 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 30.5dB(A) | 1.1 W | - | 7000 RPM | - | 3 Wire Leads | - |
|

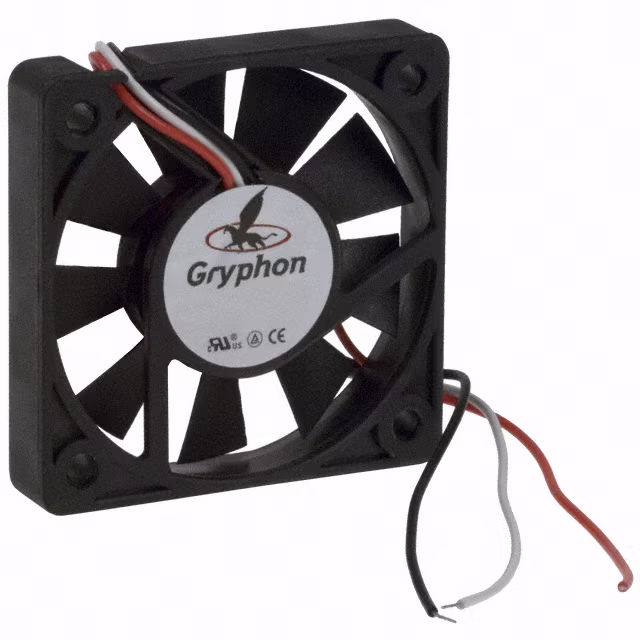

GDA5210-12BBFAN AXIAL 52X10MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 12.3 CFM (0.344m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.049 lb (22.23 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 35.8dB(A) | 1.7 W | - | 6000 RPM | - | 3 Wire Leads | - |
|

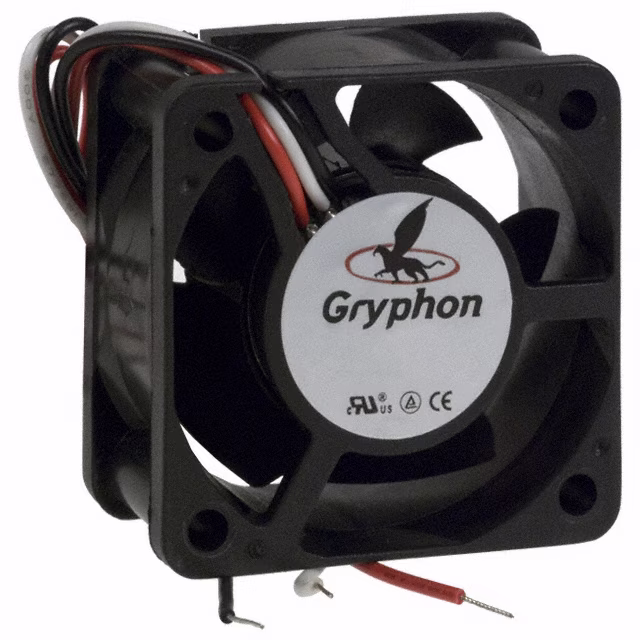

GDA4020-12BBFAN AXIAL 40X20MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.064 lb (29.03 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 30.9dB(A) | 1.4 W | - | 8000 RPM | - | 3 Wire Leads | - |
|
|
GDA4020-24BBFAN AXIAL 40X20MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.064 lb (29.03 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 30.9dB(A) | 1.7 W | - | 8000 RPM | - | 3 Wire Leads | - |
|

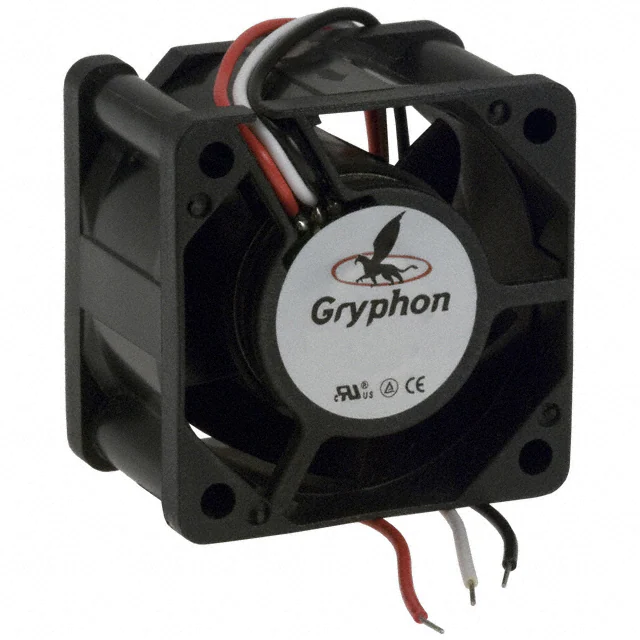

GDA4028-12BBFAN AXIAL 40X28MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.079 lb (35.83 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 31.4dB(A) | 2.4 W | - | 8800 RPM | - | 3 Wire Leads | - |
|
|
GDA4010-24BBFAN AXIAL 40X10MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.035 lb (15.88 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 30.5dB(A) | 2.2 W | - | 7000 RPM | - | 3 Wire Leads | - |
|

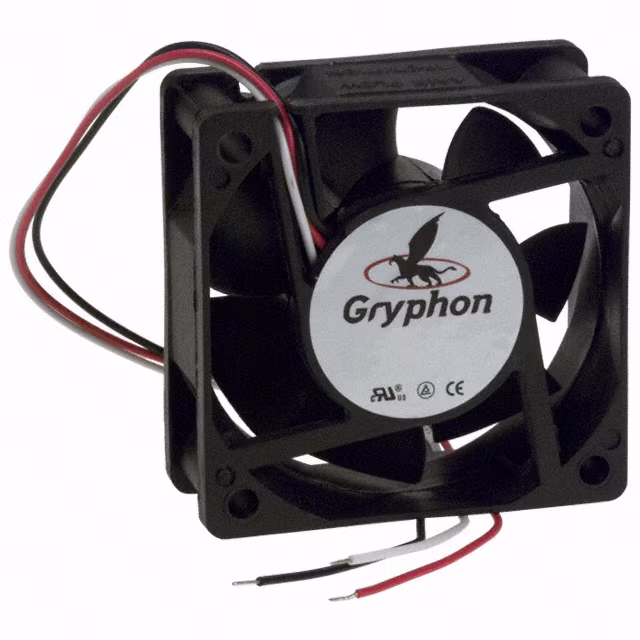

GDA6025-12BBFAN AXIAL 60X25MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 19.2 CFM (0.538m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 26.1dB(A) | 1.7 W | - | 4000 RPM | - | 3 Wire Leads | - |
|
|
GDA6025-24BBFAN AXIAL 60X25MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.2 CFM (0.538m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 26.1dB(A) | 3.4 W | - | 4000 RPM | - | 3 Wire Leads | - |
|

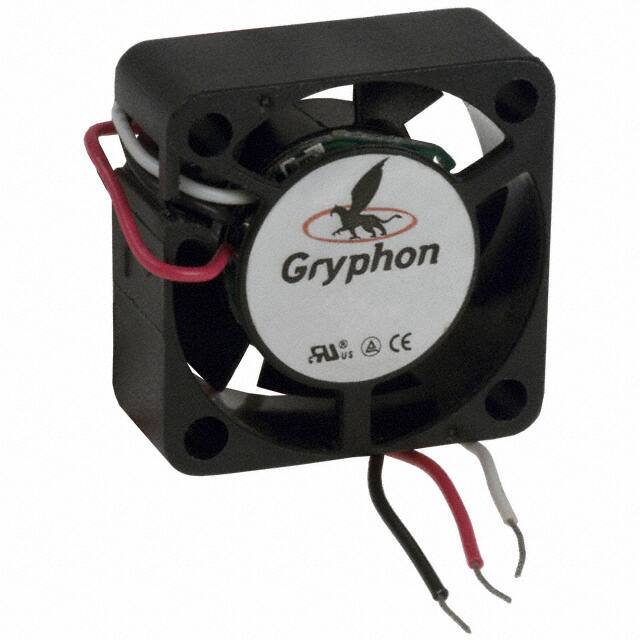

GDA2510-12BBFAN AXIAL 25X10MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.016 lb (7.26 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 27.4dB(A) | 1.2 W | - | 13000 RPM | - | 3 Wire Leads | - |
|

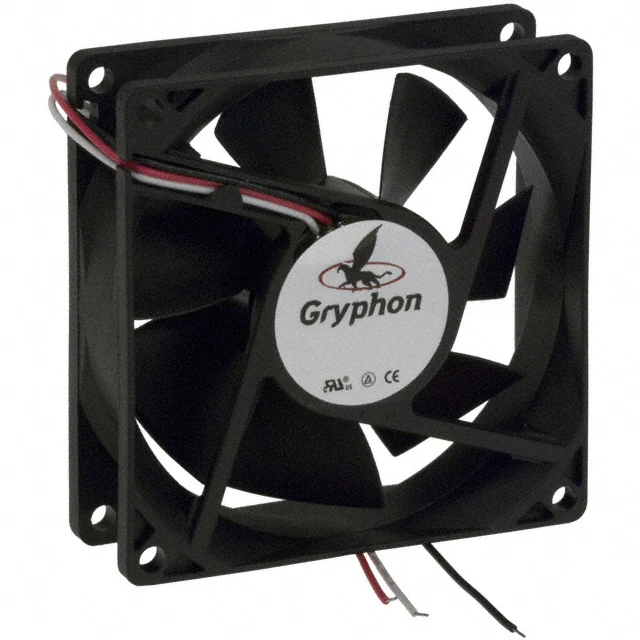

GDA8025-12BBFAN AXIAL 80X25MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 30.8dB(A) | 2 W | - | 3000 RPM | - | 3 Wire Leads | - |
