直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB0812LB-F00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.148 lb (67.13 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 2300 RPM | - | 3 Wire Leads | - |
|
|
EFB0812MB-F00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.099 in H2O (24.6 Pa) | Ball | 0.148 lb (67.13 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 33.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 2800 RPM | - | 3 Wire Leads | - |
|
|
04028DA-12L-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.387 in H2O (96.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 39.0dB | 1.68 W | - | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04028DA-12M-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 17.0 CFM (0.476m³/min) | 0.587 in H2O (146.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 44.5dB | 3.12 W | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

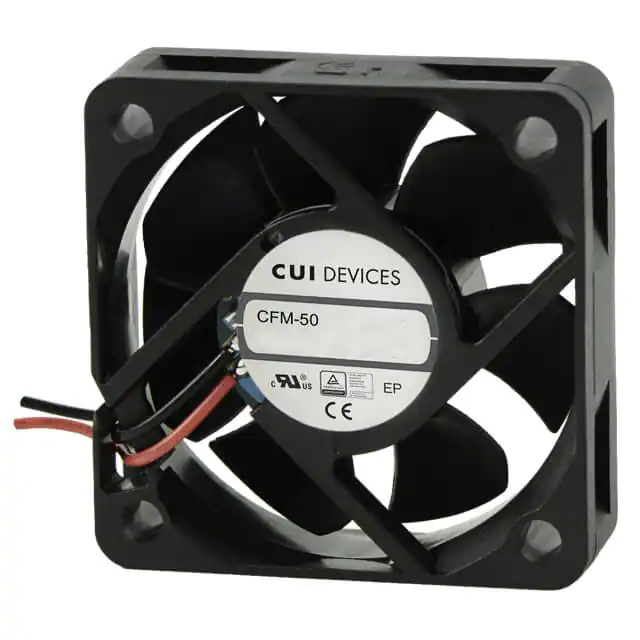

CFM-5010V-155-310FAN AXIAL 50X10MM 12VDC WIRE |
1,495 | - |
|
数据表 |
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.046 lb (20.87 g) | Tubeaxial | Auto Restart | 10.00mm | 30.7dB(A) | 0.98 W | CE, cURus, TUV | 5800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EE80251S2-1000U-999FAN AXIAL 80X25MM 12VDC WIRE |
9,306 | - |
|
数据表 |
EE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 0.165 lb (74.84 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.42 W | CE, CUR, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4010V-070-273FAN AXIAL 40X10MM 5VDC WIRE |
4,943 | - |
|
数据表 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 27.3dB(A) | 790 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
HA40101V4-1000U-A99FAN AXIAL 40X10MM 12VDC WIRE |
15,008 | - |
|
数据表 |
MagLev® HA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.4 CFM (0.151m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 15.7dB(A) | 380 mW | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-5015V-258-330FAN AXIAL 50X15MM 24VDC WIRE |
8,531 | - |
|
数据表 |
CFM-50V | Tray | Active | 24VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 33.0dB(A) | 1.23 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
HA50151V4-1000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
3,709 | - |
|
数据表 |
MagLev® HA | Box | Active | 12VDC | Square - 50mm L x 50mm H | 7.7 CFM (0.216m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 15.4dB(A) | 300 mW | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4010V-150-157FAN AXIAL 40X10MM 12VDC WIRE |
3,849 | - |
|
数据表 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 15.7dB(A) | 460 mW | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EE92251S3-1000U-999FAN AXIAL 92X25MM 12VDC WIRE |
717 | - |
|
数据表 |
EE | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 28.0dB(A) | 1.24 W | CE, CUR, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
EF80251S1-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
24,171 | - |
|
数据表 |
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.44 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF92251V3-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
5,475 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.203 lb (92.08 g) | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 900 mW | cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

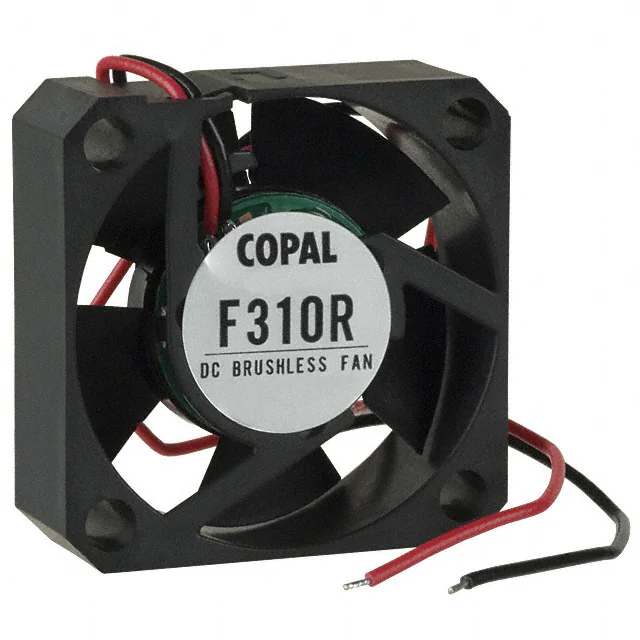

F310R-05LCFAN AXIAL 30X10MM 5VDC WIRE |
16,656 | - |
|
数据表 |
F310R | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 17.0dB(A) | 350 mW | - | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
F310R-05LLCFAN AXIAL 30X10MM 5VDC WIRE |
4,265 | - |
|
数据表 |
F310R | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 2.1 CFM (0.059m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 13.0dB(A) | 250 mW | - | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
HA40201V4-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
14,437 | - |
|
数据表 |
MagLev® HA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.067 lb (30.39 g) | Tubeaxial | Auto Restart | 20.00mm | 12.3dB(A) | 380 mW | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40100V2-1000U-A99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
27,031 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart | 10.00mm | 20.6dB(A) | 470 mW | cURus, TUV | 5800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF40101V1-1000U-A99FAN AXIAL 40X10MM 12VDC WIRE |
17,852 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart | 10.00mm | 27.3dB(A) | 620 mW | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
HA60251V4-1000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
12,831 | - |
|
数据表 |
MagLev® HA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.8 CFM (0.386m³/min) | 0.060 in H2O (14.9 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 10.7dB(A) | 240 mW | CE, CUR, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
