直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0502024J2B-3T3FAN 50X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 3.12 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501524H2B-3T3FAN 50X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.0 CFM (0.420m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.64 W | CE, cURus | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0502024I2B-3T3FAN 50X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.1 CFM (0.283m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501024H2B-3T3FAN 50X10MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 2.4 W | CE, cURus | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0502024L2B-3T3FAN 50X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 3.6 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0701524J2B-3T3FAN 70X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 27.0dB(A) | 2.4 W | CE, cURus | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0702548L2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 3.36 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0701524L2B-3T3FAN 70X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802024L2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.2 CFM (0.874m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 29.0dB(A) | 3.84 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802024J2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 25.0dB(A) | 3.12 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802024M2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 34.0dB(A) | 4.32 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
B5015H24B-BSR-CCFAN BLOWER 51X15.7MM 24VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 15.70mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 2 Wire Leads | - |
|
B5015H12B-BSR-CCFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.055 lb (24.95 g) | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 15.70mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 2 Wire Leads | - |
|
B5015E12B-BSR-CCFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.055 lb (24.95 g) | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 15.70mm | 45.0dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 2 Wire Leads | - |
|

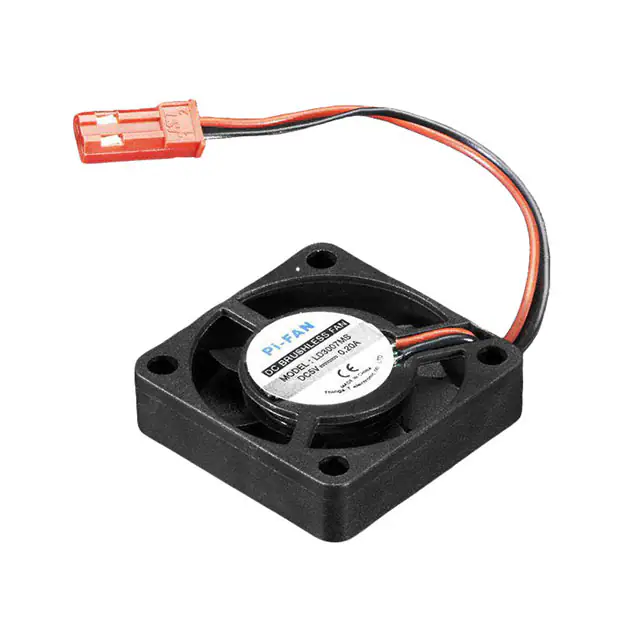

3368FAN AXIAL 30X8MM 5VDC |
1,205 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | - | 0.014 lb (6.35 g) | Tubeaxial | - | 8.00mm | - | - | CE | - | - | 2 Position Rectangular Connector | - |
|
HA60151V4-1000U-A99FAN AXIAL 60X15MM 12VDC WIRE |
8,595 | - |
|
数据表 |
MagLev® HA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | 0.077 lb (34.93 g) | Tubeaxial | Auto Restart | 15.00mm | 14.5dB(A) | 270 mW | CE, CUR, TUV, UL | 2200 RPM | - | 2 Wire Leads | - |
|
MF50151V2-1000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
22,741 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 29.0dB(A) | 540 mW | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF50151V1-1000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
18,778 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 33.0dB(A) | 870 mW | cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

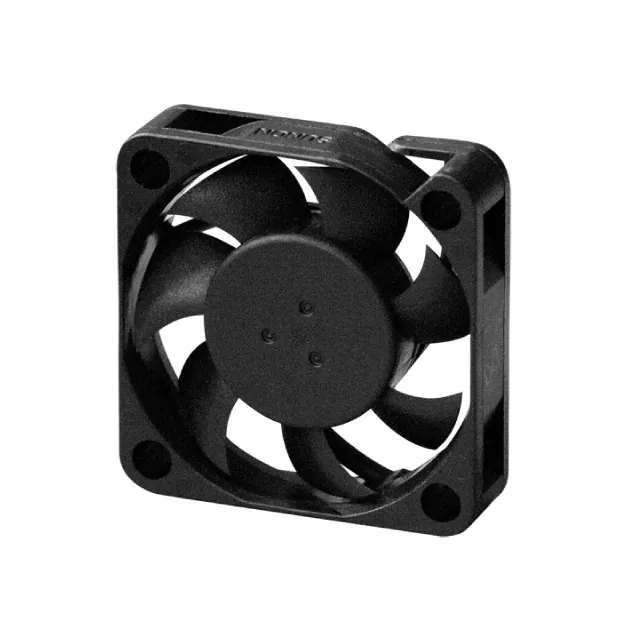

MF40101VX-1000U-F99FAN AXIAL 40X10MM 12VDC WIRE |
3,628 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.9 CFM (0.277m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 31.4dB(A) | 1.05 W | cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4028BG-1130-475FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.9 CFM (0.445m³/min) | 1.030 in H2O (256.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 47.5dB(A) | 4.68 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
