直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0401005V2B-BT4FAN 40X10MM 5VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 39.0dB(A) | 2 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0401024V2B-BT4FAN 40X10MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 39.0dB(A) | 2.16 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501024J2B-BT4FAN 50X10MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 1.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501024L2B-BT4FAN 50X10MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 1.68 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501005J2B-BT4FAN 50X10MM 5VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 250 mW | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0802548J2B-2T2FAN 80X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 35.0dB(A) | 7.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0301005U2B-2T0FAN 30X10MM 5VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 31.0dB(A) | 850 mW | CE, cURus | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0702548H2B-BT0FAN 70X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501005L2B-BT4FAN 50X10MM 5VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 350 mW | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
OD7025-24HBXCThermal Products |
0 | - |
|
数据表 |
OD7025 | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 57.0 CFM (1.60m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 54.3dB(A) | 9.6 W | CE, cURus, TUV, UR | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

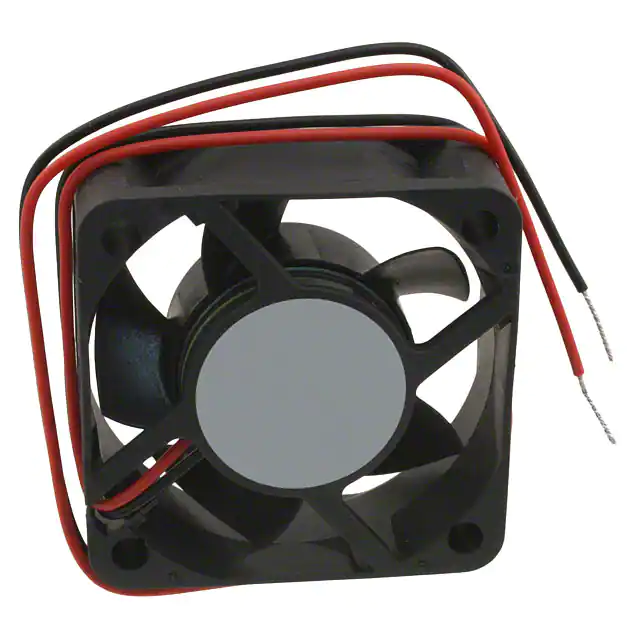

AFB0512VHD-TZW4FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 40.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
G4015E12B1-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 3 Wire Leads | - |
|
|
G4015H12B1-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4015H12B2-RSR-TTLFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4015L05B2-RSRFAN AXIAL 40X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.0 CFM (0.112m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.00mm | 20.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
G4015M05B1-RSRFAN AXIAL 40X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 3 Wire Leads | - |
|
|
G4015M24B1-RSRFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 3 Wire Leads | - |
|
|
G4015X12B1-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 12.0 CFM (0.336m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 12000 RPM | - | 3 Wire Leads | - |
|
G8015E12B1-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 4400 RPM | - | 3 Wire Leads | - |
|
|
G8015H12B1-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
