直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
05020GA-05L-AA-00FAN BLOWER 53X20MM 5VDC WIRE |
0 | - |
|
数据表 |
05020GA | Bulk | Active | 5VDC | Square/Rounded - 53mm L x 50mm H | 4.5 CFM (0.126m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 27.0dB | 1.7 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

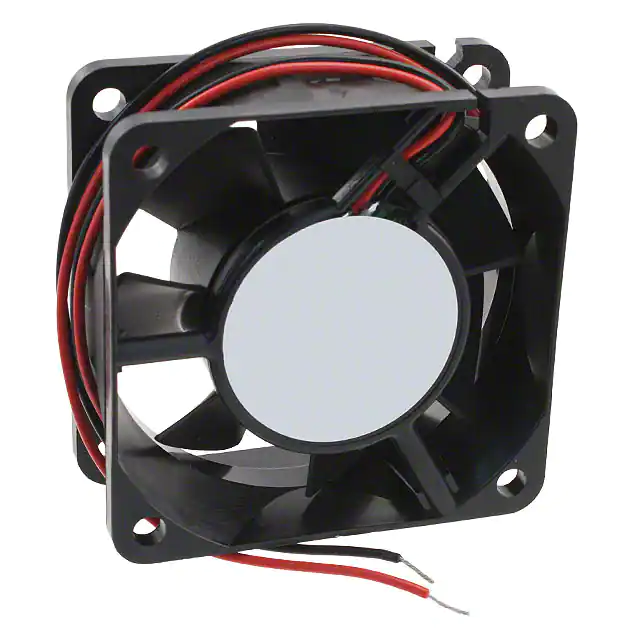

2410ML-05W-B70-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 33.1 CFM (0.927m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | Auto Restart | 25.00mm | 45.0dB | 4.56 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MC17080V1-000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 5VDC | Square - 17mm L x 17mm H | 0.900 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 0.01 lb (4.54 g) | Tubeaxial | Auto Restart | 8.00mm | 25.0dB(A) | 800 mW | CUR, TUV, UL | 20000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-A225SG-130-431-20DC AXIAL FAN, 120 MM SQUARE, 25 |
0 | - |
|
数据表 |
CFM-A2SG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 104.5 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 45.9dB(A) | 6.72 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

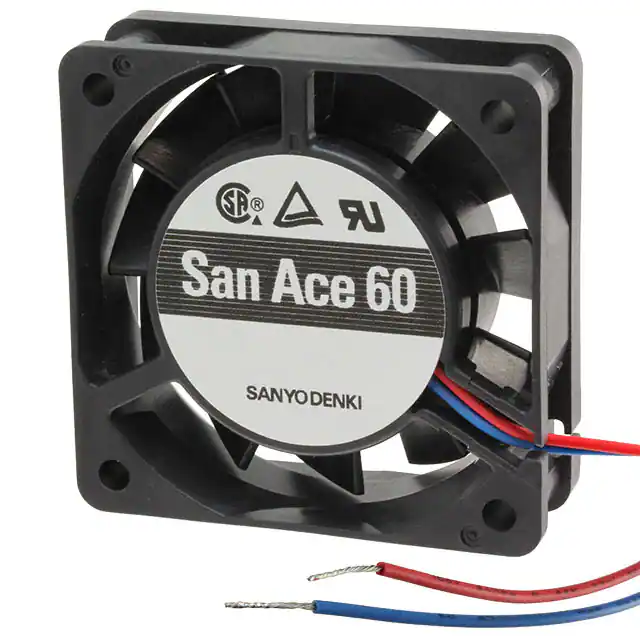

109P0624M702FAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 25.0dB(A) | 960 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802512M2B-3T3FAN 80X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 7.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802512L2B-3T3FAN 80X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 4.8 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512J2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 25.0dB(A) | 1.08 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802512I2B-3T3FAN 80X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.4 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512L2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 30.0dB(A) | 1.32 W | CE, cURus, TUV | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0922512H2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 38.0dB(A) | 2.4 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0922512M2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 1.68 W | CE, cURus, TUV | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CBM-979433B-125-467-20FAN BLOWER 97.68X32.7MM 12VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 17.1 CFM (0.479m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.70mm | 46.8dB(A) | 4.68 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-979433B-225-467-20FAN BLOWER 97.68X32.7MM 24VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 17.1 CFM (0.479m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.70mm | 46.8dB(A) | 4.8 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-7530BF-140-454-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.00mm | 48.1dB(A) | 4.44 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-7015B-050-406-20FAN AXIAL 70X15.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 5VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | - | - | CE, cURus, TUV | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0301012U2B-3T0FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.160m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 31.0dB(A) | 1.08 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0922512U2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 3.6 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0922524U2B-2T0FAN 92X25MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 7.2 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802512J2B-BT4FAN 80X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.84 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
