直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0801512H2B-3T3FAN 80X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 1.92 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922548H2B-2T0FAN 92X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 38.0dB(A) | 9.6 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
03828DA-12R-AA-00FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
03828DA | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 21.5 CFM (0.602m³/min) | 2.610 in H2O (650.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 58.0dB | 7.56 W | - | 22000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
08020SA-12M-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 37.5dB | 1.56 W | - | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602024J2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 24.0dB(A) | 1.68 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
G4020E24B-RSR-CCFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
G4020H05B-RSR-CCFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 20.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 7000 RPM | - | 2 Wire Leads | - |
|

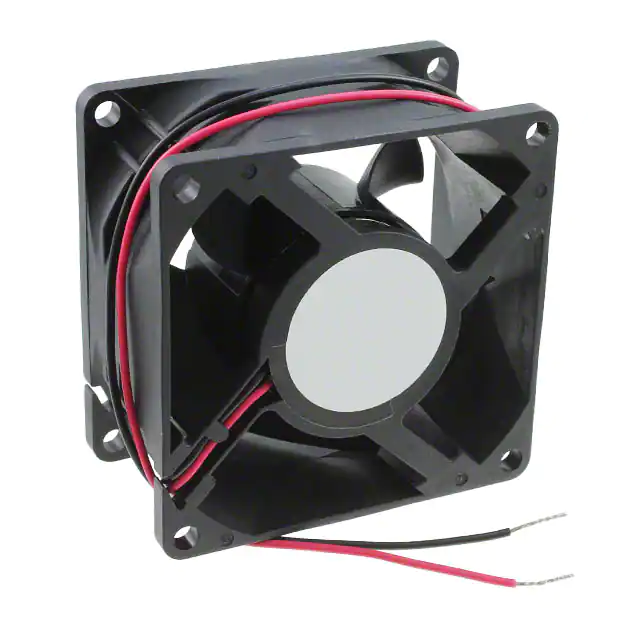

AFB0712VHEFAN AXIAL 69.5X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 69.5mm L x 69.5mm H | 62.2 CFM (1.74m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 51.0dB(A) | 8.4 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0802012U2B-3T3FAN 80X20MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 3.6 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802012H2B-3T3FAN 80X20MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 2.88 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802548J2B-BT0FAN 80X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 7.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0801524J2B-3T3FAN 80X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 1.44 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0801524M2B-3T3FAN 80X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0801524L2B-3T3FAN 80X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 2.4 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501012M2B-BT4FAN 50X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 960 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501012H2B-BT4FAN 50X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 1.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501524M2B-3T3FAN 50X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 2.16 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501024M2B-3T3FAN 50X10MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 1.92 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
2410ML-04W-B70-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 33.1 CFM (0.927m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | Auto Restart | 25.00mm | 45.0dB | 5.48 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
05020GA-12K-AA-00FAN BLOWER 53X20MM 12VDC WIRE |
0 | - |
|
数据表 |
05020GA | Bulk | Active | 12VDC | Square/Rounded - 53mm L x 50mm H | 3.5 CFM (0.098m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 20.0dB | 840 mW | - | 3600 RPM | - | 2 Wire Leads | - |
