直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F8025X24B2-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
F8025S05B1-FSRFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F8025H05B1-FSRFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

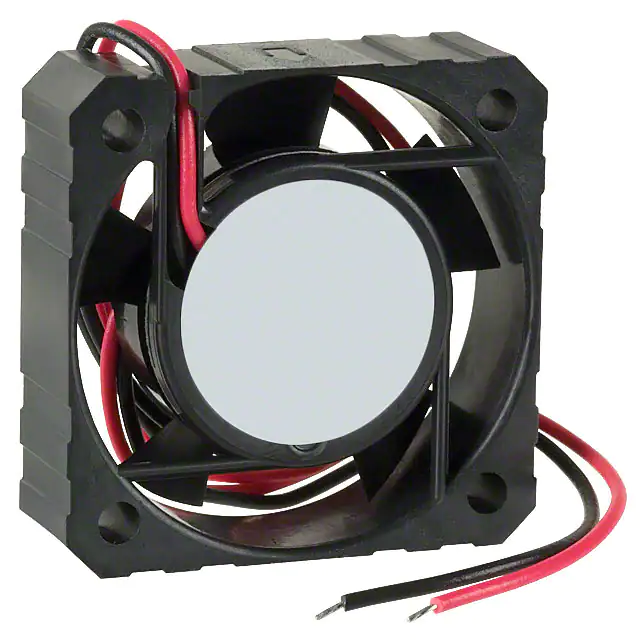

F412R-05LBFAN AXIAL 41X12.2MM 5VDC WIRE |
0 | - |
|
数据表 |
F412R | Bulk | Active | 5VDC | Square - 41mm L x 41mm H | 3.9 CFM (0.109m³/min) | 0.059 in H2O (14.7 Pa) | 1 Ball/1 Sleeve | 0.044 lb (19.96 g) | Tubeaxial | - | 12.20mm | 16.0dB(A) | 400 mW | - | 4200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
F412R-12LBFAN AXIAL 41X12.2MM 12VDC WIRE |
0 | - |
|
数据表 |
F412R | Bulk | Active | 12VDC | Square - 41mm L x 41mm H | 3.9 CFM (0.109m³/min) | 0.059 in H2O (14.7 Pa) | 1 Ball/1 Sleeve | 0.044 lb (19.96 g) | Tubeaxial | - | 12.20mm | 16.0dB(A) | 480 mW | - | 4200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
F8025E24B2-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
|
MB8020E12B1-FSRFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFB0824SHBY7YFAN AXIAL 80X80X15 MM 24V WIRE |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0502024M2B-BT0FAN 50X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 5.04 W | CE, cURus | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602024H2B-BT0FAN 60X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0701524M2B-BT0FAN 70X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 29.6 CFM (0.829m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 4.08 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601024M2B-BT0FAN 60X10MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 33.0dB(A) | 4.08 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601005M2B-BT0FAN 60X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 33.0dB(A) | 850 mW | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601024U2B-BT0FAN 60X10MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 37.0dB(A) | 4.8 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602024M2B-BT0FAN 60X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.4 CFM (0.459m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 29.0dB(A) | 2.64 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0602512H2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.126 lb (57.15 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 3.36 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602512L2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.126 lb (57.15 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 1.44 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9232B-140-461-20FAN AXIAL 92.2X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 46.2dB(A) | 6.24 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-7020V-143-400-20FAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 40.0 CFM (1.12m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 40.0dB(A) | 3.18 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-7020V-146-415-20FAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 41.5dB(A) | 3.94 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
