直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0612LC-R00FAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Sensor | 13.00mm | 24.0dB(A) | 960 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0605LC-R00FAN AXIAL 60X13MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Sensor | 13.00mm | 24.0dB(A) | 600 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0612HC-R00FAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Sensor | 13.00mm | 31.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0412VHB-F00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0412VHB-R00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 36.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0412HB-R00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 28.5dB(A) | 1.2 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0412SHB-R00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 41.5dB(A) | 3 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0424SHB-R00FAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 41.5dB(A) | 2.88 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-9238S-240-473FAN AXIAL 92X37.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.50mm | 47.3dB(A) | 9.6 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9232S-140-461FAN AXIAL 92.2X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 32.00mm | 46.2dB(A) | 6.48 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238S-140-473FAN AXIAL 92X37.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 12VDC | Square - 92mm L x 92mm H | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.50mm | 47.3dB(A) | 6.48 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9232S-240-461FAN AXIAL 92.2X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 32.00mm | 46.2dB(A) | 9.36 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8025V-142-415FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.201 lb (91.17 g) | Tubeaxial | Auto Restart | 25.00mm | 41.5dB(A) | 2.76 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-A225B-020-350-20FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 37.8dB(A) | 2.85 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MC25101V1-000U-F99FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 23.0dB(A) | 690 mW | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

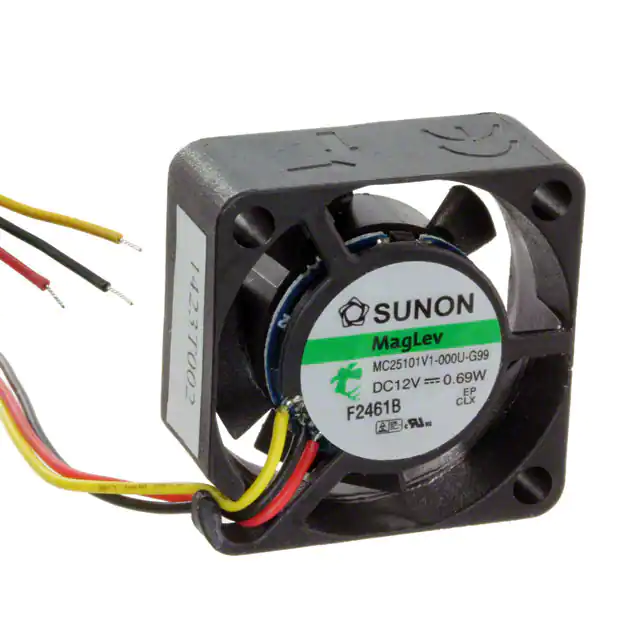

MC25101V1-000U-G99FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 690 mW | CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MC30101V1-000U-F99FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 23.0dB(A) | 580 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

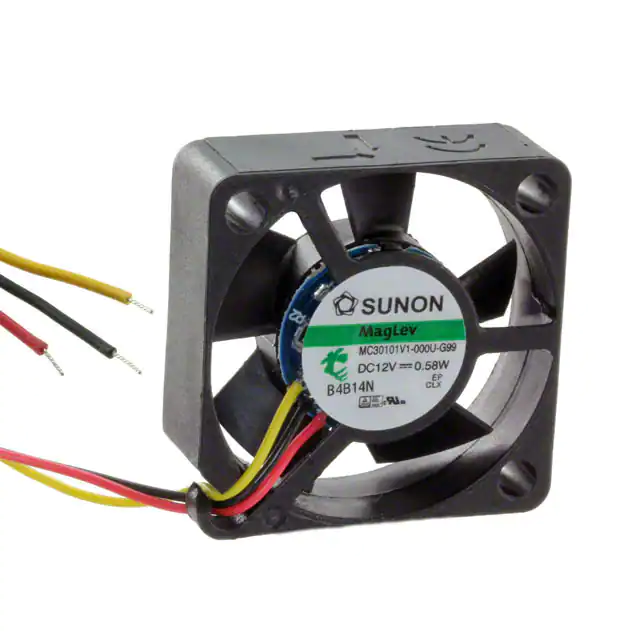

MC30101V1-000U-G99FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 580 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MC35101V1-000U-F99FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 28.0dB(A) | 720 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MC35101V1-000U-G99FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 720 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
