直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF80252B1-1000U-F99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 1.56 W | CCC, CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
EF80252B3-1000U-F9924VDC FAN 80X25MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 0.89 W | CCC, CE, cURus, TUV, UKCA | 2600 RPM | - | 3 Wire Leads | - |
|
|
EF80252B2-1000U-F9924VDC FAN 80X25MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 1.16 W | CCC, CE, cURus, TUV, UKCA | 2900 RPM | - | 3 Wire Leads | - |
|
|
MF17080V2-1000U-Q995VDC FAN 17X8MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 8.00mm | 14.2dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 16500 RPM | - | 4 Wire Leads | - |
|
|
MF17080V1-1000U-Q995VDC FAN 17X8MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 8.00mm | 21.5dB(A) | 0.47 W | CCC, CE, cURus, TUV, UKCA | 21000 RPM | - | 4 Wire Leads | - |
|
|
DC0601512J2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601512H2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 35.0dB(A) | 1.44 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601512L2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 29.0dB(A) | 960 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601512M2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.2 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
CFM-7015B-240-357-22DC AXIAL FAN, 70 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.7 CFM (0.727m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.50mm | 35.7dB(A) | 2.88 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
AF40200VX-1000U-S995VDC FAN 40X20MM TACH/PWM |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 4 Wire Leads | - |
|
|
AF40201VX-1000U-S9912VDC FAN 40X20MM TACH/PWM |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.92 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 4 Wire Leads | - |
|

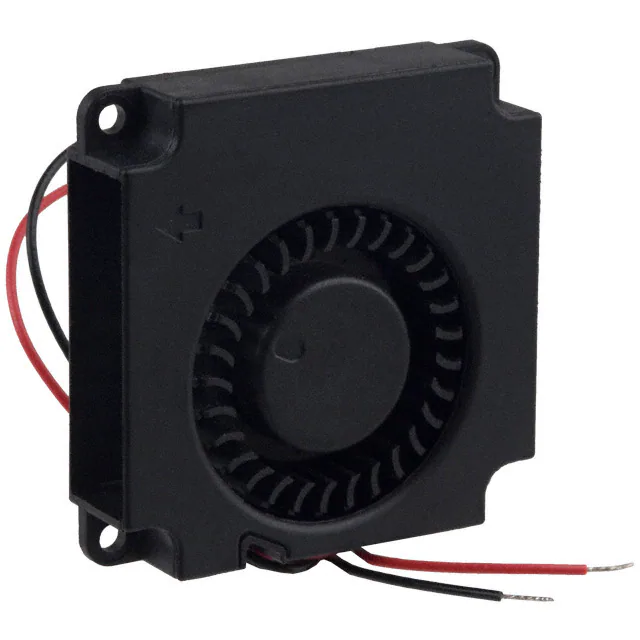

BFB04505LA-CFAN BLOWER 45X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Tray | Active | 5VDC | Square - 45mm L x 45mm H | 2.0 CFM (0.056m³/min) | 0.212 in H2O (52.8 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 21.5dB(A) | 400 mW | CE, CSA, UL, VDE | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0812SHD-F00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 48.2 CFM (1.35m³/min) | 0.245 in H2O (61.0 Pa) | Ball | 0.165 lb (74.84 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 41.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 4000 RPM | - | 3 Wire Leads | - |
|
CFM-8038S-140-449FAN AXIAL 80X37.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.60mm | 45.0dB(A) | 4.56 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-8038S-230-387FAN AXIAL 80X37.6MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.60mm | 38.7dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0501012M2B-BT0FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 960 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602012J2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 24.0dB(A) | 840 mW | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602012L2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 26.0dB(A) | 1.08 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501005M2B-3T0FAN 50X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 400 mW | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
