直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0712MB-R00FAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 28.2 CFM (0.790m³/min) | 0.123 in H2O (30.6 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 31.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0812LB-F00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 27.5dB(A) | 1.08 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0612HC-F00FAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 13.00mm | 31.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0712LD-R00FAN BLOWER 76X20MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 76mm L x 70mm H | 6.1 CFM (0.171m³/min) | 0.562 in H2O (140.0 Pa) | Ball | 0.128 lb (58.06 g) | Blower | Locked Rotor Sensor | 20.00mm | 32.5dB(A) | 1.56 W | CE, CSA, UL, VDE | 2800 RPM | - | 3 Wire Leads | - |
|
CFM-4020BF-275-306-22FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 30.6dB(A) | 1.44 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7525C-145-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75C | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.4dB(A) | 6.96 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
ASB03505MA-AFAN AXIAL 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
ASB | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 4.5 CFM (0.126m³/min) | 0.079 in H2O (19.6 Pa) | Sleeve | 0.023 lb (10.43 g) | Tubeaxial | - | 10.00mm | 18.5dB(A) | 400 mW | CE, cURus, VDE | 5800 RPM | - | 2 Wire Leads | - |
|
|
CBM-7525C-245-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.4dB(A) | 6.96 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
AFB02505HA-CFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.176 in H2O (43.8 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 23.5dB(A) | 600 mW | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4020BF-135-114-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 11.4dB(A) | 0.36 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
BFB0524M-F00FAN BLOWER 51.3X15MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 3.2 CFM (0.090m³/min) | 0.433 in H2O (107.9 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4020BF-155-212-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 21.2dB(A) | 0.72 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
FFB1424VHG-R00FAN AXIAL 139.7X50.8MM 24VDC |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 24VDC | Square - 139.7mm L x 139.7mm H | 252.1 CFM (7.06m³/min) | 0.644 in H2O (160.4 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Locked Rotor Sensor | 50.80mm | 58.5dB(A) | 21.84 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
|
CFM-4020BF-175-306-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 30.6dB(A) | 1.32 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
AFB0624LB-R00FAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 11.6 CFM (0.325m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 24.0dB(A) | 960 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
.F.GN.jpg)
|

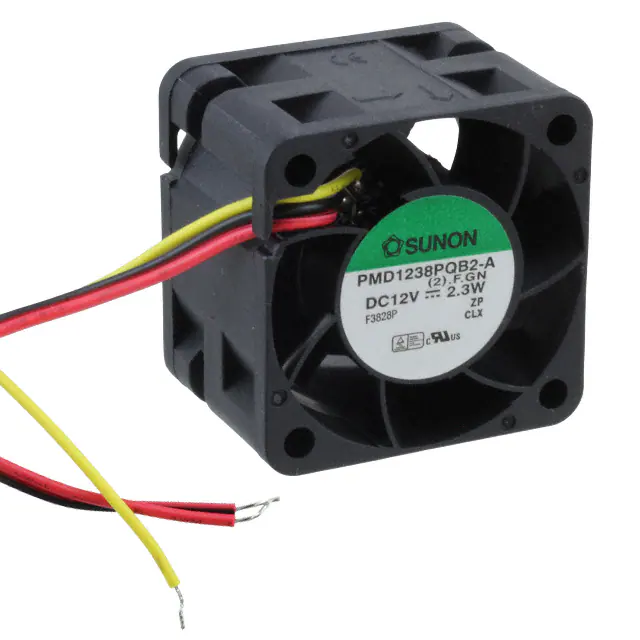

PMD1238PQB2-A(2).F.GNFAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 12.6 CFM (0.353m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 42.0dB(A) | 2.3 W | CE, CUR, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
EFB0405HD-R00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 28.5dB(A) | 1.25 W | CE, CSA, UL, VDE | 7600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
EB60252B1-000U-999FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EB | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.126 lb (57.15 g) | Tubeaxial | - | 25.00mm | 34.5dB(A) | 1.9 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DB0402012L2B-2T0FAN BLOWER 40.5X19.5MM 12VDC |
0 | - |
|
数据表 |
DB | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 1.6 CFM (0.045m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Blower | Locked Rotor Protection | 19.50mm | 27.0dB(A) | 960 mW | CE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
DB0402012H2B-2T0FAN BLOWER 40.5X19.5MM 12VDC |
0 | - |
|
数据表 |
DB | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 2.5 CFM (0.070m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Blower | Locked Rotor Protection | 19.50mm | 37.0dB(A) | 1.8 W | CE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
