直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80151V2-1000U-S9912VDC FAN 80X15MM TACH/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.00mm | 29.9dB(A) | 1.13 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 4 Wire Leads | - |
.F.GN.JPG)
|

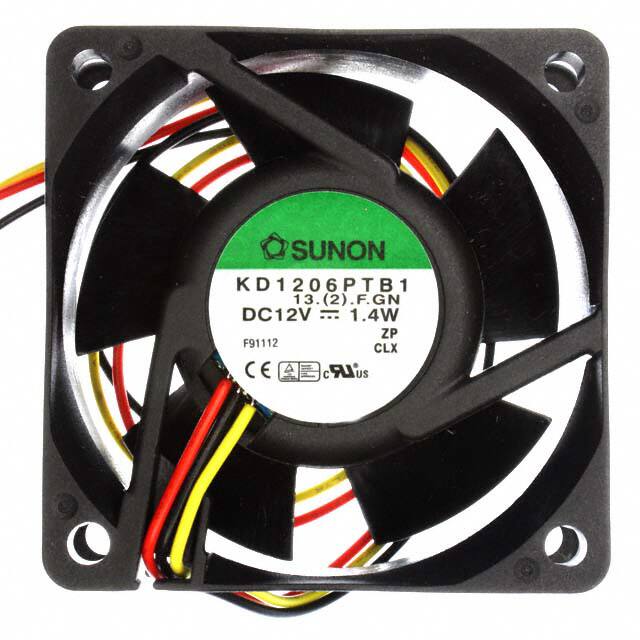

KD1206PTB1 (2).F.GNFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | 1.4 W | CE, CUR, TUV, UL | - | - | 3 Wire Leads | - |
|
PMD2406PTB1-A.(2).U.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
PMD | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 0.165 lb (74.84 g) | Tubeaxial | - | 25.00mm | 44.0dB(A) | 3.8 W | CE, CUR, TUV, UL | 6900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9225-23-10FAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Auto Restart | 25.40mm | 49.8dB(A) | 6.72 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530BF-240-454-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 24.50mm | 45.4dB(A) | 5.52 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-6025-13-10FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Auto Restart | 25.40mm | 49.0dB(A) | 4.8 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0801512L2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.0dB(A) | 1.2 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0801512J2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 25.0dB(A) | 720 mW | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

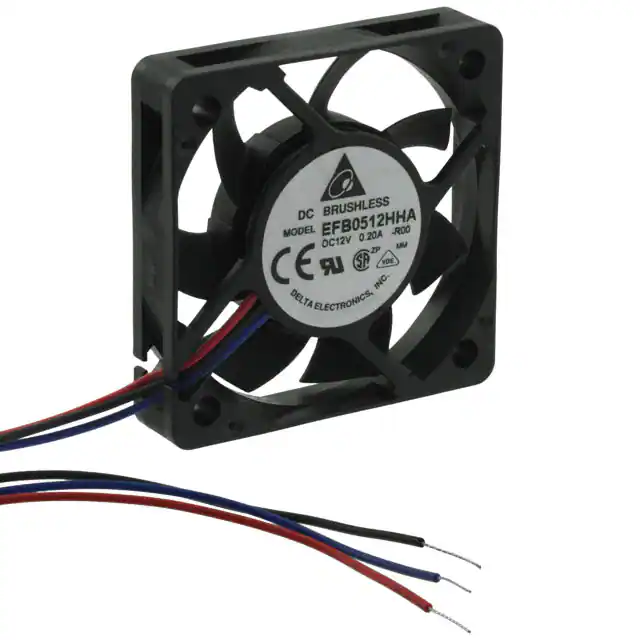

EFB0512HHA-R00FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 13.6 CFM (0.381m³/min) | 0.232 in H2O (57.8 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 33.5dB(A) | 1.8 W | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04010SA-24L-AAD-0FAN AXIAL 40X10MM 24VDC WIRE |
0 | - |
|
数据表 |
04010SA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 21.5dB | 600 mW | - | 5500 RPM | - | 2 Wire Leads | - |
|
|
17000180AFAN 50X10.5MM CR0512UB-G70(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 32.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000181AFAN 50X10.5MM CR0512LB-G70(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 8.0 CFM (0.224m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 20.0dB(A) | 960 mW | CE, cUL, TUV, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000186AFAN 60X15MM CR0612HB-GA0(GLT1) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.4 CFM (0.599m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.067 lb (30.39 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 35.8dB(A) | 3 W | CE, cUL, TUV, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000187AFAN 80X15.5MM CR0824LB-D90(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.50mm | 36.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
GM0504PEV1-8.GNFAN AXIAL 40X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | - | 6.90mm | 32.0dB(A) | 500 mW | CE, CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025-13-20FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 49.0dB(A) | 4.8 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025-23-11FAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.40mm | 47.0dB(A) | 4.8 W | CE, cURus, TUV | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4015B-275-287DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.10mm | 28.7dB(A) | 1.2 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020BF-255-212-22FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 21.2dB(A) | - | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-4020BF-095-342-22FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 34.2dB(A) | 2.25 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
