直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUB0512HHD-F00FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | - | - | Superflo | - | Tubeaxial | Speed Sensor (Tach) | 20.00mm | - | - | CE, CSA, UL, VDE | - | - | 3 Wire Leads | - |
|
|
M5010M05C-RSRFAN AXIAL 50X10MM 5VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF30151V2-1000U-A99FAN AXIAL |
0 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.8 CFM (0.134m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 15.00mm | 19.0dB(A) | 420 mW | CE, CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF30151V3-1000U-A99Thermal Products |
0 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 2.7 CFM (0.076m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 15.00mm | 7.8dB(A) | 240 mW | CE, CUR, TUV, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1212PTB1-6AFAN AXIAL 119.5X25.5MM 12VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.562 lb (254.92 g) | Tubeaxial | - | 25.50mm | 44.5dB(A) | 5.4 W | CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1212PTB3-6AFAN AXIAL 119.5X25.5MM 12VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.562 lb (254.92 g) | Tubeaxial | - | 25.50mm | 35.5dB(A) | 2.4 W | CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE2412PTB1-6AFAN AXIAL 119.5X25.5MM 24VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.562 lb (254.92 g) | Tubeaxial | - | 25.50mm | 44.5dB(A) | 6 W | CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE2412PTB3-6AFAN AXIAL 119.5X25.5MM 24VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.562 lb (254.92 g) | Tubeaxial | - | 25.50mm | 35.5dB(A) | 3.1 W | CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1212PMB1-6AFAN AXIAL 119.5X38.5MM 12VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.723 lb (327.95 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 6.8 W | CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1212PMB3-6AFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 35.0dB(A) | 3.2 W | CE, CUR, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
KDE2412PMB1-6AFAN AXIAL 119.5X38.5MM 24VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.719 lb (326.13 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 6.7 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE2412PMB3-6AFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | - | 4 W | CE, CUR, TUV, UL | - | - | 2 Wire Leads | - |
|
|
KDE2412PMBX-6AFAN AXIAL 119.5X38.5MM 24VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 120.0 CFM (3.36m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.719 lb (326.13 g) | Tubeaxial | - | 38.50mm | 46.5dB(A) | 7.2 W | CE, CUR, TUV, UL | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

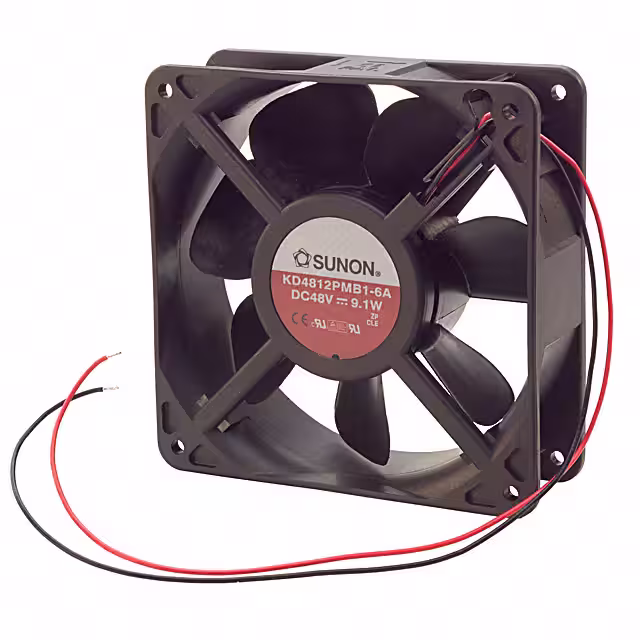

KD4812PMB1-6AFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 48VDC | Square - 120mm L x 120mm H | 136.0 CFM (3.81m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.705 lb (319.78 g) | Tubeaxial | - | 38.00mm | 47.0dB(A) | 9.1 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9225-23-22FAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 49.8dB(A) | 6.72 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

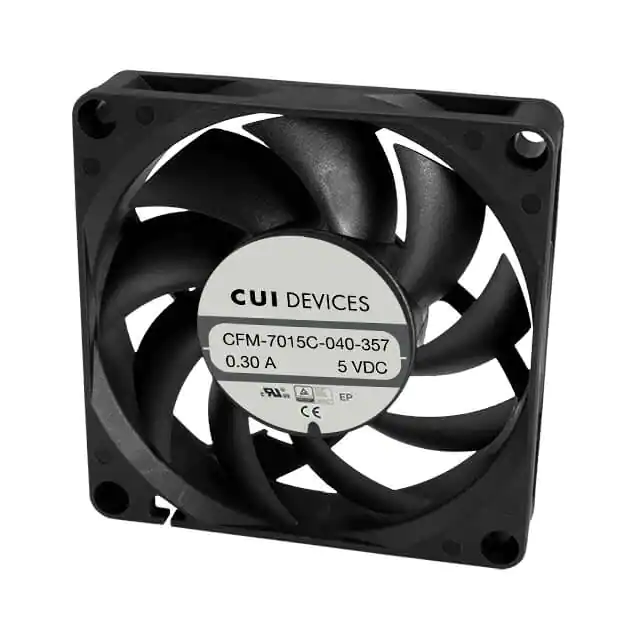

CFM-7015C-050-406-20FAN AXIAL 70X15.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | - | - | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | - | - | CE, cURus, TUV | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-3010B-1130-373-22FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 37.3dB(A) | 2.04 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7530CF-240-454-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.50mm | 45.4dB(A) | 5.52 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7530CF-140-454-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 | - |
|
数据表 |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.00mm | 48.1dB(A) | 4.44 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-5010B-170-361-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 34.5dB(A) | 1.8 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
