直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0812HHB-F00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 35.7 CFM (1.00m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-05J-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.160m³/min) | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
AFB1512EH-AR00FAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 290.6 CFM (8.14m³/min) | 0.821 in H2O (204.5 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 61.5dB(A) | 36 W | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-05M-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
04020VA-12J-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
DC0401012H2B-2T0FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 26.0dB(A) | 720 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9238S-230-410FAN AXIAL 92X37.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.50mm | 41.1dB(A) | 4.08 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0524MDFAN AXIAL 50X20MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.4 CFM (0.375m³/min) | 0.137 in H2O (34.0 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 28.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
F6025S24B-RSFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 2300 RPM | - | 2 Wire Leads | - |
|
|
AF40101VX-1000U-S9912VDC FAN 40X10MM TACH/PWM |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.7dB(A) | 0.78 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 4 Wire Leads | - |
|
|
AF40100VX-1000U-S995VDC FAN 40X10MM TACH/PWM |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.7dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 4 Wire Leads | - |
|
|
ME80152V2-000U-A99FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 0.15 lb (68.04 g) | Tubeaxial | Auto Restart | 15.00mm | 32.0dB(A) | 1.56 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EE80252B1-000U-F99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 1.8 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
EE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 1.8 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

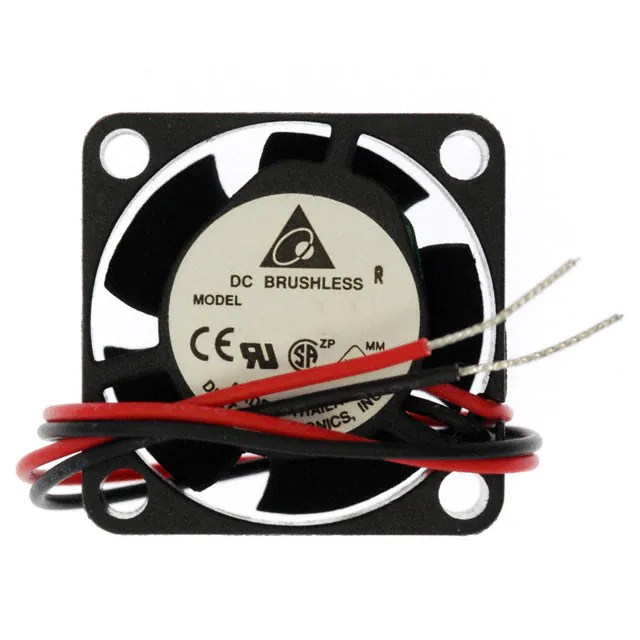

AFB02512HHA-AFAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.024 lb (10.89 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.0dB(A) | 960 mW | CE, CSA, UL, VDE | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB02512HA-AFAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.176 in H2O (43.8 Pa) | Ball | 0.024 lb (10.89 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 23.5dB(A) | 720 mW | CE, CSA, UL, VDE | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB03512LA-CFAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 35mm L x 35mm H | 3.4 CFM (0.095m³/min) | 0.048 in H2O (11.9 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | - | 10.00mm | 13.0dB(A) | 360 mW | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AF40101VX-1000U-A99FAN AXIAL 12VDC 40X10MM |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AF40100VX-1000U-A99FAN AXIAL 5VDC 40X10MM |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0624EHDC9FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 46.5dB(A) | 5.76 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
