直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1224MEFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 92.0 CFM (2.58m³/min) | 0.254 in H2O (63.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 38.0dB(A) | 3.36 W | CE, CSA, UL, VDE | 2500 RPM | - | 2 Wire Leads | - |
|

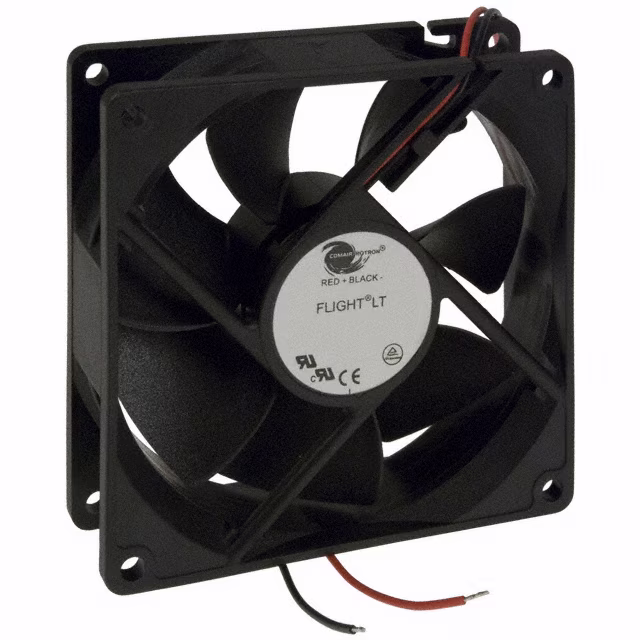

19032760AFAN AXIAL 92X25MM CR0912HB-A70GL |
0 | - |
|
数据表 |
Flight LT 90 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 4.1 W | CSA, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0612HB-F00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A225C-020-350FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 25.40mm | 37.8dB(A) | 2.85 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0412HHA-AR00FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 31.5dB(A) | 600 mW | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8010-13-11FAN AXIAL 80X10.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.60mm | 38.2dB(A) | 2.88 W | CE, cURus, TUV | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0612HHC-R00FAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.204 in H2O (51.0 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Sensor | 13.00mm | 35.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8010-13-20FAN AXIAL 80X10.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.60mm | 38.2dB(A) | 2.88 W | CE, cURus, TUV | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0624HC-R00FAN AXIAL 60X13MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Sensor | 13.00mm | 31.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4200 RPM | - | 3 Wire Leads | - |
|

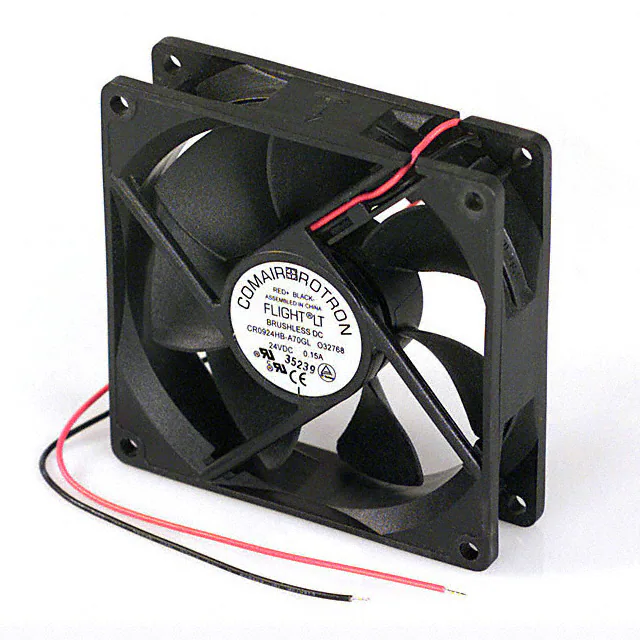

19032768AFAN AXIAL 92X25MM CR0924HB-A70GL |
0 | - |
|
数据表 |
Flight LT 90 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 3.6 W | CSA, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF80151V2-1000U-F9912VDC FAN 80X15MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 29.9dB(A) | 1.13 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
MF80151V1-1000U-H9912VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 32.9dB(A) | 1.5 W | CCC, CE, cURus, TUV, UKCA | 3500 RPM | - | 3 Wire Leads | - |
|
|
MF80151V2-1000U-H9912VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 29.9dB(A) | 1.13 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
MF80151V3-1000U-H9912VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 26.5dB(A) | 0.86 W | CCC, CE, cURus, TUV, UKCA | 2800 RPM | - | 3 Wire Leads | - |
|
|
MF80151V1-1000U-F9912VDC FAN 80X15MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 32.9dB(A) | 1.5 W | CCC, CE, cURus, TUV, UKCA | 3500 RPM | - | 3 Wire Leads | - |
|
|
AUB0512HHBFAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Superflo | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AUB0912VH-AFAN AXIAL 92X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | - | - | Superflo | - | Tubeaxial | - | 10.00mm | - | - | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
FFB0412GHN-CFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 23.4 CFM (0.655m³/min) | 1.638 in H2O (408.0 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 56.0dB(A) | 6 W | CE, cURus, VDE | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EFB1512HG-T50FFAN AXIAL 172X50.8MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 251.8 CFM (7.05m³/min) | 0.689 in H2O (171.6 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 55.0dB(A) | 16.2 W | CE, CSA, UL, VDE | 3350 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
EFB0824HB-F00FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 0.148 lb (67.13 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 3.36 W | CE, CSA, UL, VDE | 3300 RPM | - | 3 Wire Leads | - |
