直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110KL-05W-B59-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 34.0dB | 2.88 W | CE, CSA, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B69-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.0dB | 3.36 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B69-G50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.0dB | 3.36 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF30060V2-1000U-G995VDC FAN 30X6MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 6.00mm | 15.7dB(A) | 0.36 W | CCC, CE, cURus, TUV, UKCA | 7100 RPM | - | 3 Wire Leads | - |
|
CFM-8020BF-125-273-20FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 27.4dB(A) | 960 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8020BF-135-346-20FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.7dB(A) | 1.8 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025B-225-290-20FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.92 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-9225B-230-356-20FAN AXIAL 92.2X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 35.6dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-5015BF-155-391-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 15.00mm | 39.2dB(A) | 1.8 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PMB1275PNB1-A (2)FAN BLOWER 75.7X30MM 12VDC WIRE |
0 | - |
|
数据表 |
PMB | - | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.191 lb (86.64 g) | Blower | - | 30.00mm | 43.5dB(A) | 3.6 W | CE, CUR, TUV, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|

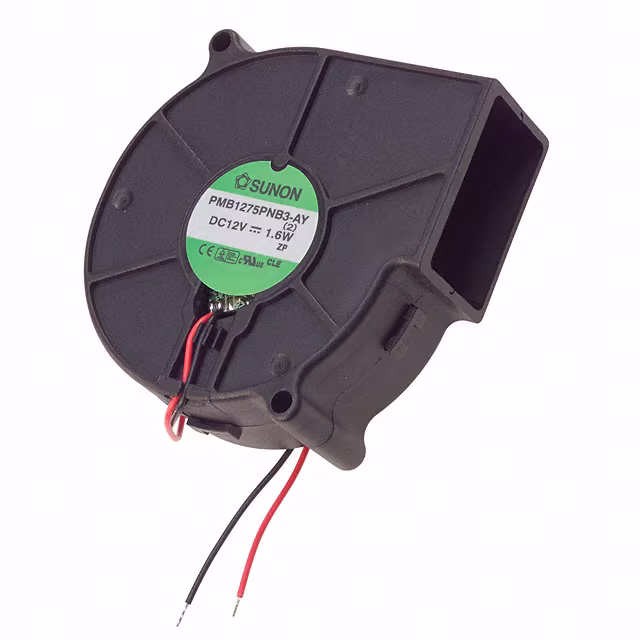

PMB1275PNB3-AY (2)FAN BLOWER 75.7X30MM 12VDC WIRE |
0 | - |
|
数据表 |
PMB | - | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.191 lb (86.64 g) | Blower | - | 30.00mm | 33.9dB(A) | 1.6 W | CE, CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-2510B-070-140-22FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 14.1dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
BFB04512HA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 3.0 CFM (0.084m³/min) | 0.391 in H2O (97.4 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 30.5dB(A) | 960 mW | CE, CSA, UL, VDE | 5150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3010B-0100-316-22FAN AXIAL 30X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 31.6dB(A) | 1.2 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-3010B-080-267-22FAN AXIAL 30X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 26.8dB(A) | 850 mW | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-5020B-160-360DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 36.0dB(A) | 3.24 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0512MA-CR00FAN BLOWER 50X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | 0.05 lb (22.68 g) | Blower | Locked Rotor Sensor | 10.30mm | 28.0dB(A) | 840 mW | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB0712HH-AR00FAN BLOWER 75.7X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | 0.199 lb (90.26 g) | Blower | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 4.08 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
COM-11270BLOWER - SQUIRREL CAGE (12V) |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | - | 16.0 CFM (0.448m³/min) | - | - | - | Blower | - | - | - | 10 W | - | 3500 RPM | - | - | - |
|
|
EB40202S2-000U-999FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
EB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | 0.069 lb (31.3 g) | Tubeaxial | - | 20.00mm | 21.0dB(A) | 800 mW | CUR, TUV, UL | 6200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
