直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4414L3FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | 37.0dB(A) | 1 W | - | 1800 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
4416HFAN AXIAL 119X38MM 36VDC WIRE |
0 | - |
|
数据表 |
4400 | Bulk | Active | 36VDC | Square - 119mm L x 119mm H | - | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | - | - | - | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
5314/2HPFAN AXIAL 139.6X50.8MM 24VDC |
0 | - |
|
数据表 |
5300 | Bulk | Active | 24VDC | Square - 139.6mm L x 139.6mm H | 203.0 CFM (5.68m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 28.4 W | - | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
612N/2GHHFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | 0.454 in H2O (113.0 Pa) | Sintec | 0.19 lb (86.18 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 16.0dB(A) | 3.1 W | CE, CSA, EAC, UL, VDE | 6350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
6224NI-223FAN IMP MTRZD 172X50.8MM 24VDC |
0 | - |
|
数据表 |
6200N | Bulk | Obsolete | 24VDC | Round - 172mm Dia | - | - | Ball | - | Motorized Impellers | Temperature Sensor | 50.80mm | - | 18 W | - | 4500 RPM | - | - | - |
|
|
6314HU-901FAN 172X51MM 24VDC |
0 | - |
|
数据表 |
6300H | Bulk | Active | 24VDC | Round - 172mm Dia | - | - | - | - | - | - | 51.00mm | - | - | - | - | - | - | - |
|
3110KL-05W-B19-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 22.0dB | 1.44 W | CE, CSA, UL, VDE | 2150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
6412HFAN AXL 171.5X50.8MM 12VDC TERM |
0 | - |
|
数据表 |
6400 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 171.5mm L x 150mm H | - | - | Ball | - | Tubeaxial | - | 50.80mm | - | - | - | - | - | 2 Terminals | - |
|
|
3110KL-05W-B19-G00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB | 1.44 W | CE, CSA, UL, VDE | 2150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
8412/12FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8400 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 32.0dB(A) | 2.4 W | - | - | 167°F (75°C) | 3 Wire Leads | - |
|
|
DV5214/2NP-181FAN AXIAL 127X38MM BALL 24VDC |
0 | - |
|
数据表 |
DV5200 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 159.0 CFM (4.45m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | - | - | - | - | - | - | - |
|

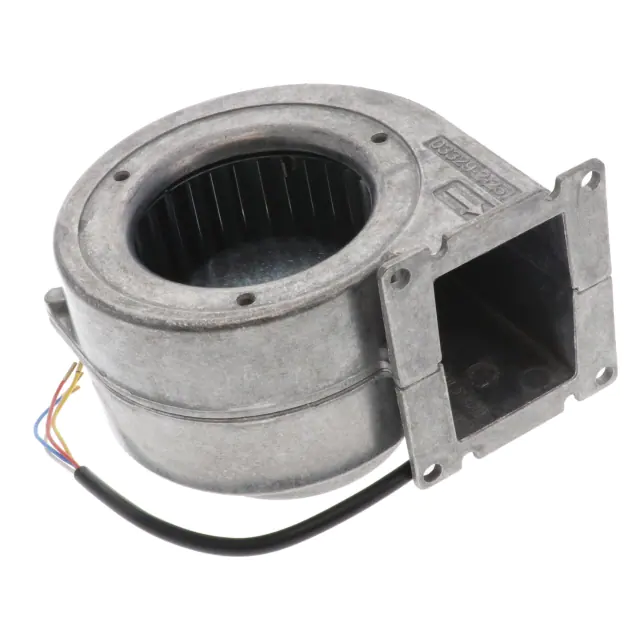

G1G085-AB05-01FAN BLOWER 117.5MM 24VDC WIRE |
0 | - |
|
数据表 |
G1G085 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 117.5mm L x 127.5mm H | - | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | - | - | 14 W | EAC | 2850 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP22 |
|
G1G097-AA05-01FAN BLOWER 143X40MM 24VDC WIRE |
0 | - |
|
数据表 |
G1G097 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 143mm L x 137mm H | - | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 40.00mm | 59.0dB(A) | 16 W | EAC | 2650 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP22 |
|
|
K3G097-AK32-70FAN BLOWER CF 139.5X351MM 13VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Obsolete | 13VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 629.0 CFM (17.61m³/min) | - | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, Thermal Overload Protector (TOP) | 351.0mm | 69.0dB(A) | 276 W | - | 3250 RPM | - | 6 Position Rectangular Connector | - |
|
K3G097-AK34-43FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 1216.0 CFM (716.22m³/min) | - | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, Thermal Overload Protector (TOP) | 351.0mm | 69.0dB(A) | 377 W | - | 3652 RPM | - | 6 Position Rectangular Connector | - |
|
|
3110KL-05W-B19-G50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 22.0dB | 1.44 W | CE, CSA, UL, VDE | 2150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B29-D00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 25.0dB | 1.68 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B29-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 25.0dB | 1.68 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B29-G00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 25.0dB | 1.68 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B29-G50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 25.0dB | 1.68 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
