直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110KL-05W-B39-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 28.0dB | 1.92 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B39-G50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 28.0dB | 1.92 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B49-D50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 31.0dB | 2.4 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B49-G50FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 31.0dB | 2.4 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-05W-B59-D00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 34.0dB | 2.88 W | CE, CSA, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
K3G097-AK34-65FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 415.2 CFM (11.63m³/min) | - | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 351.0mm | - | 394 W | EAC | 3830 RPM | -40 ~ 158°F (-40 ~ 70°C) | 6 Position Rectangular Connector | - |
|
K3G097-AK68-85FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 441.8 CFM (12.37m³/min) | - | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 351.0mm | 75.0dB(A) | 690 W | EAC | 4600 RPM | -40 ~ 140°F (-40 ~ 60°C) | 4 Position Rectangular Connector | - |
|
|
K3G097-BK34-43FAN BLOWER CF 335.0MM 26VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Obsolete | 26VDC | - | - | - | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 335.0mm | 69.0dB(A) | 345 W | - | 3940 RPM | 158°F (70°C) | - | - |
|
R1G120-AD13-02FAN IMP MTRZD 120X54MM 24VDC |
0 | - |
|
数据表 |
R1G120 | Bulk | Obsolete | 24VDC | Round - 120mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.00mm | 62.0dB(A) | 26 W | EAC | 4060 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP20 |
|
|
R1G120-AD13-20FAN IMP MTRZD 120X54MM 24VDC |
0 | - |
|
数据表 |
R1G120 | Bulk | Obsolete | 24VDC | Round - 120mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.00mm | 62.0dB(A) | 26 W | - | 4060 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
RER1602814N2TDAFAN IMP MTRZD 165.1X50.3MM 24VDC |
0 | - |
|
数据表 |
RER160NTD | Bulk | Active | 24VDC | Round - 165.1mm Dia | 217.8 CFM (6.10m³/min) | - | Ball | - | Motorized Impellers | - | 50.30mm | - | 51 W | - | 4200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
RG160-28/18N/2TFAN BLOWER CF 220X56MM 48VDC |
0 | - |
|
数据表 |
RG160N | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 123.0 CFM (3.44m³/min) | - | Ball | - | Blower, Centrifugal | Locked Rotor Protection, Speed Sensor (Tach) | 56.00mm | - | 20 W | - | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
RL48-19/18R-016FAN BLOWER CF 75.2X27MM 48VDC |
0 | - |
|
数据表 |
RL48 | Bulk | Active | 48VDC | Square/Rounded - 75.2mm L x 75.5mm H | - | - | Ball | - | Blower, Centrifugal | - | 27.00mm | - | - | - | - | - | - | - |
|
|
W1G115-AG03-07FAN AXL 127X38MM 24VDC RECT CONN |
0 | - |
|
数据表 |
W1G115 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 10 W | - | 3950 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Position Rectangular Connector | IP22 |
|
|
W1G200-EF01-01FAN AXIAL 250X78.5MM 24VDC WIRE |
0 | - |
|
数据表 |
W1G200 | Bulk | Active | 24VDC | Round - 250mm Dia | - | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 78.50mm | 60.0dB(A) | 29 W | CSA, EAC, UL, VDE | 2130 RPM | -22 ~ 122°F (-30 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP55 - Dust Protected, Water Resistant |
|
|
W3G300-ER38-69FAN AXIAL 340X94MM 27.5VDC |
0 | - |
|
数据表 |
W2G300 | Bulk | Obsolete | 27.5VDC | Round - 340mm Dia | - | - | Ball | - | Tubeaxial | - | 94.00mm | 87.0dB(A) | - | - | - | - | - | - |
|
|
BFB1248HH-F00FAN BLOWER 120X32MM 48VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | 0.508 lb (230.42 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 54.0dB(A) | 10.56 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

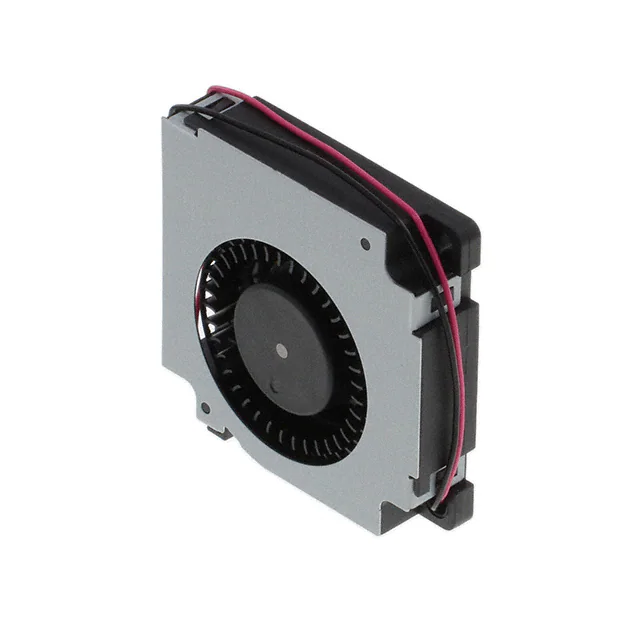

BFB04505HA-CFAN BLOWER 45X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 5VDC | Square - 45mm L x 45mm H | 3.0 CFM (0.084m³/min) | 0.391 in H2O (97.4 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 30.5dB(A) | 800 mW | CE, cURus, VDE | 5150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB04512LA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 2.0 CFM (0.056m³/min) | 0.212 in H2O (52.8 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 21.5dB(A) | 600 mW | CE, CSA, UL, VDE | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB04512MA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 2.6 CFM (0.073m³/min) | 0.279 in H2O (69.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 27.0dB(A) | 720 mW | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
