直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8015BF-220-213-20FAN AXIAL 80X15.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 21.3dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-6010B-130-215-20DC AXIAL FAN, 60 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 10.50mm | 21.5dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MD9238E24B-FSR-L9.5FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 55.0dB(A) | - | CE, TUV, UL | 4800 RPM | - | 2 Wire Leads | - |
|
F1238H24B3-FSFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
F1238-S | Bulk | Discontinued at Digi-Key | 24VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Thermistor | 38.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 2500 RPM | - | 2 Wire Leads | - |
|

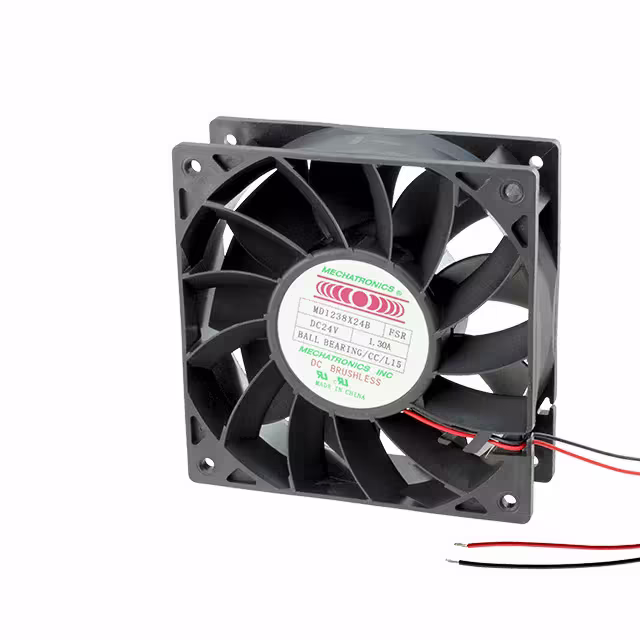

MD1238X24B-FSR-CC-L5FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.00mm | 62.0dB(A) | - | cUL, UL | 4500 RPM | - | 2 Wire Leads | - |
|
|
109E5712H5D01FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 52.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WG5748H5D001FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 71.0dB(A) | 78 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WG5748H5001FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 71.0dB(A) | 78 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
109L1412H1D01FAN AXIAL 140X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 46.0dB(A) | 8.76 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1424M1D01FAN AXIAL 140X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 38.0dB(A) | 3.84 W | CSA, TUV, UL | 1900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
MF50151V3-1B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 2.7 CFM (0.076m³/min) | 0.180 in H2O (45.0 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart | 15.00mm | 23.2dB(A) | 360 mW | CCC, CE, cURus, TUV | 3200 RPM | - | 2 Wire Leads | - |
|
|
KD2406PTSX.13.A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
109L1448M1D01FAN AXIAL 140X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 38.0dB(A) | 4.32 W | CSA, TUV, UL | 1900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
MC17080V2-000U-G99DC FAN AXIAL VAPO BEARING 5V 0.7 |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109W1412M1D01-UFAN AXIAL 140X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 38.0dB(A) | 3.6 W | CSA, TUV, UL | 1900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9LB1412H5D01FAN AXIAL 140X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 208.5 CFM (5.84m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 1.3 lbs (610.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 49.0dB(A) | 15 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
ME80152V3-000U-A99FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LB1412S5D01FAN AXIAL 140X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | 1.3 lbs (610.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 57.0dB(A) | 32.4 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
ASFN180015 VDC BRUSHLESS FAN |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF60252V1-1000U-F9924VDC FAN 60X25MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 27.0dB(A) | 1.2 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 3 Wire Leads | - |
